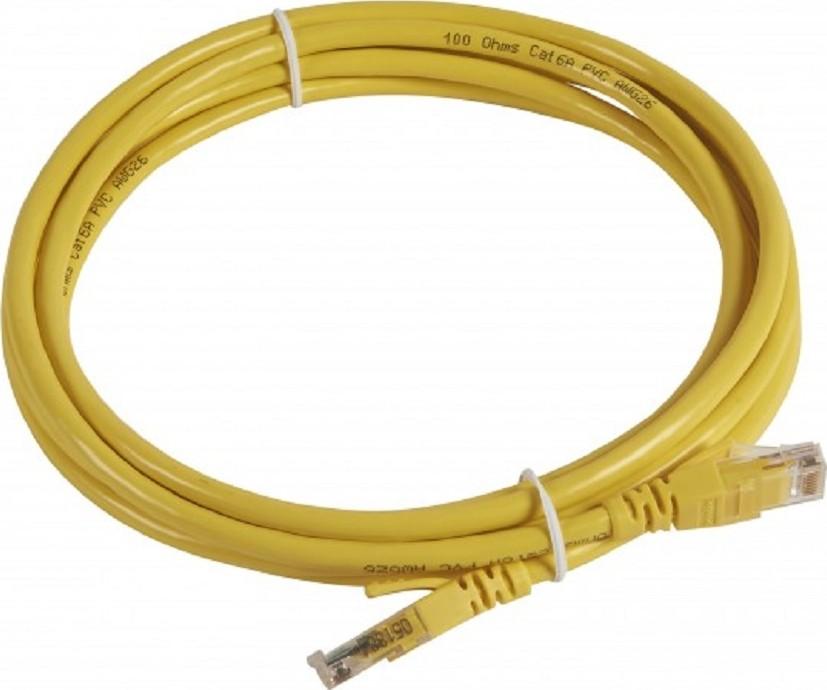

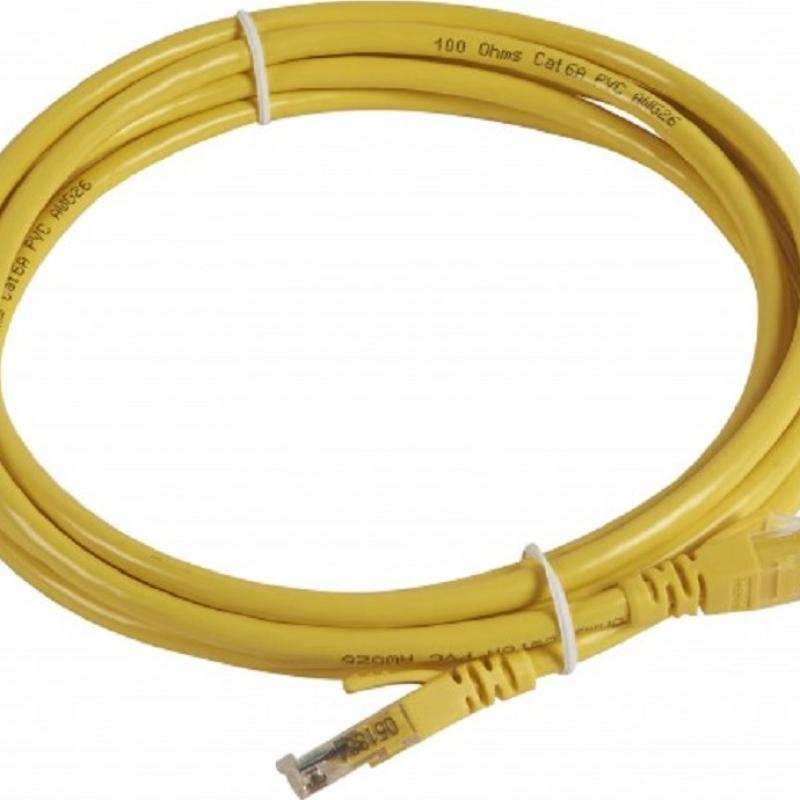

Cat.6A S/FTP Patch Cable

• Category Standard: Complies with ISO/IEC 11801 and ANSI/TIA-568-C.2 (Category 6A).
• Structure Type: S/FTP construction — each pair is individually foil-shielded with an overall braided shield for superior EMI protection.
• Conductor Material: Solid bare copper conductors for maximum conductivity and performance.
• Conductor Size: 26 AWG.
• Insulation Material: High-Density Polyethylene (HDPE) insulation for signal integrity and low attenuation.
• Jacket Material: Durable PVC outer jacket suitable for general networking environments.
• Shielding: Aluminum foil around each twisted pair with an overall braided copper shield for enhanced noise immunity.
• Pair Count: Four twisted pairs.

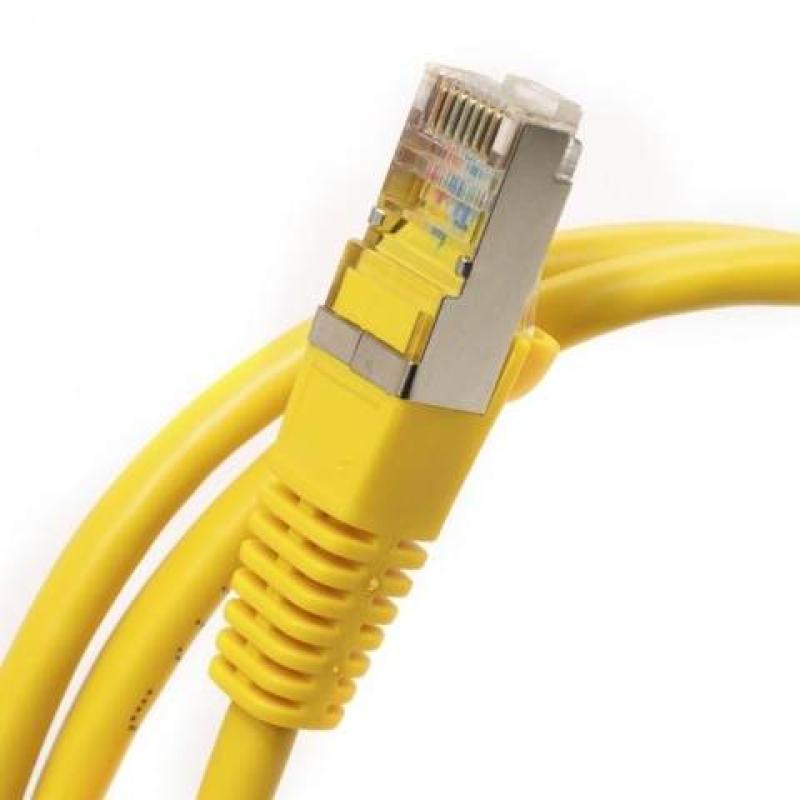

• Connector Type: RJ45 modular plug (8P8C) with gold-plated contacts for reliable and corrosion-resistant connections.
• Plug Material: Transparent polycarbonate plug housing.
• Boot Type: Molded strain-relief, snagless boot design for flexibility and protection during installation.
• Color Options: Available in grey, blue, yellow, green, black, red, and orange for easy identification.
• Transmission Speed: Supports data transmission speeds up to 10 Gbps.
• Frequency Range: Operates up to 500 MHz bandwidth.
• Testing Standard: Each cable is Fluke Channel Tested and certified to PASS Cat.6A performance standards.
• Operating Temperature: −20 °C to +75 °C.
• Storage Temperature: −20 °C to +75 °C.
• RoHS Compliance: Fully compliant with RoHS environmental standards.
