LAN CABLE TESTER WITH LCD DISPLAY

Brands: AMT
AED 65.00 AED 90.00 -27% Off

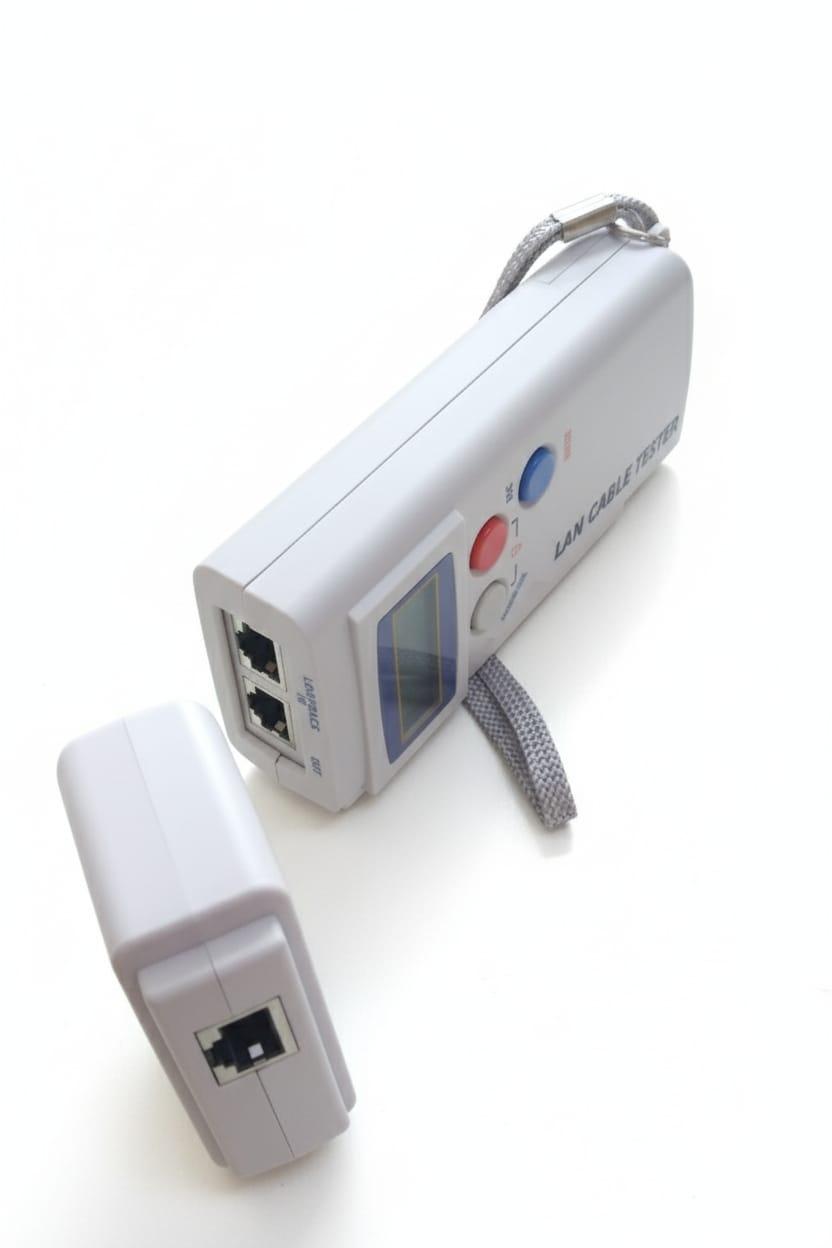

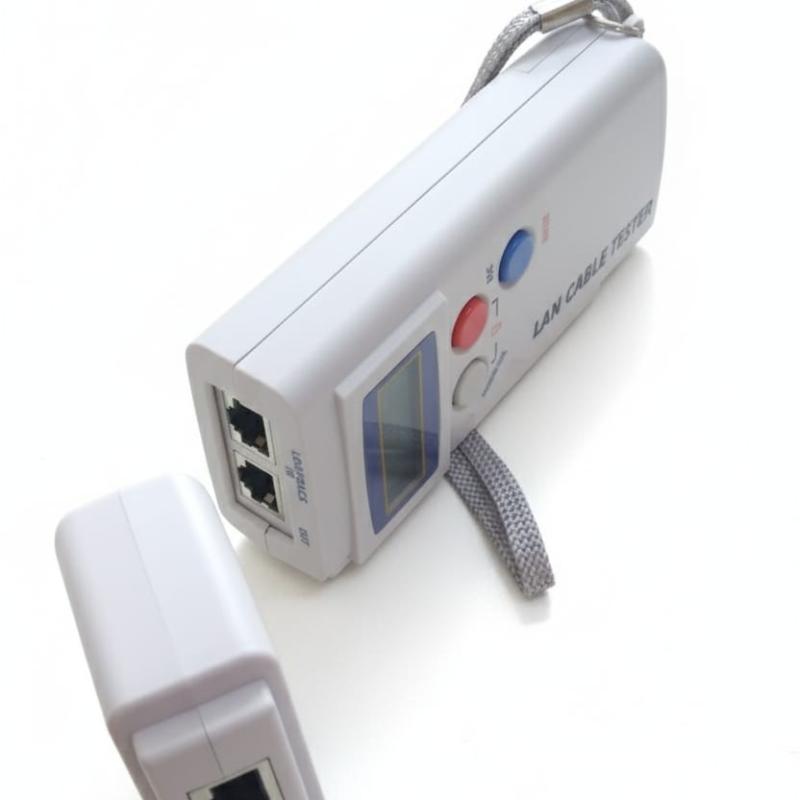

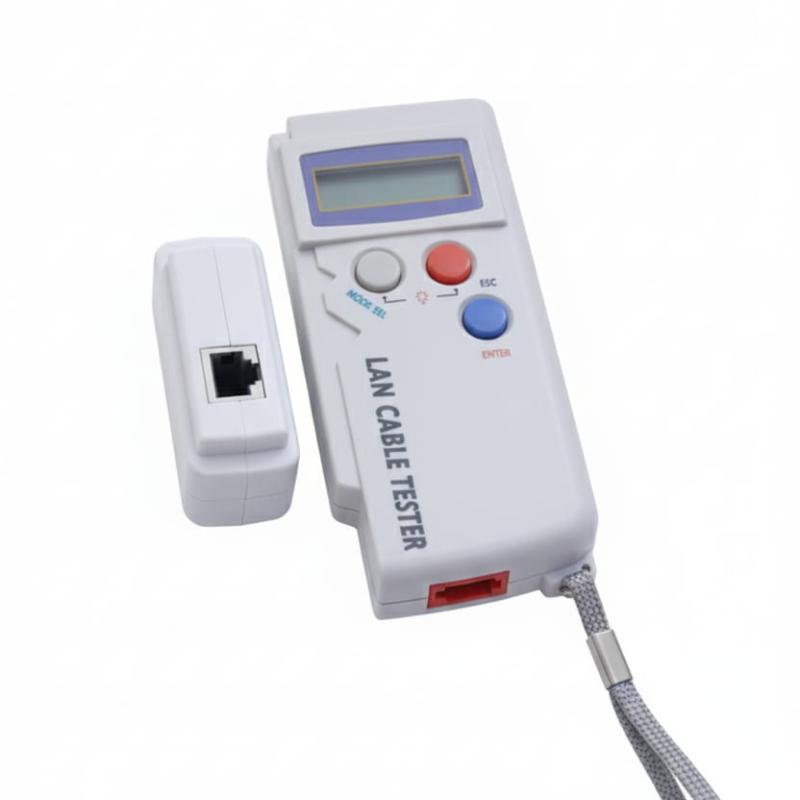

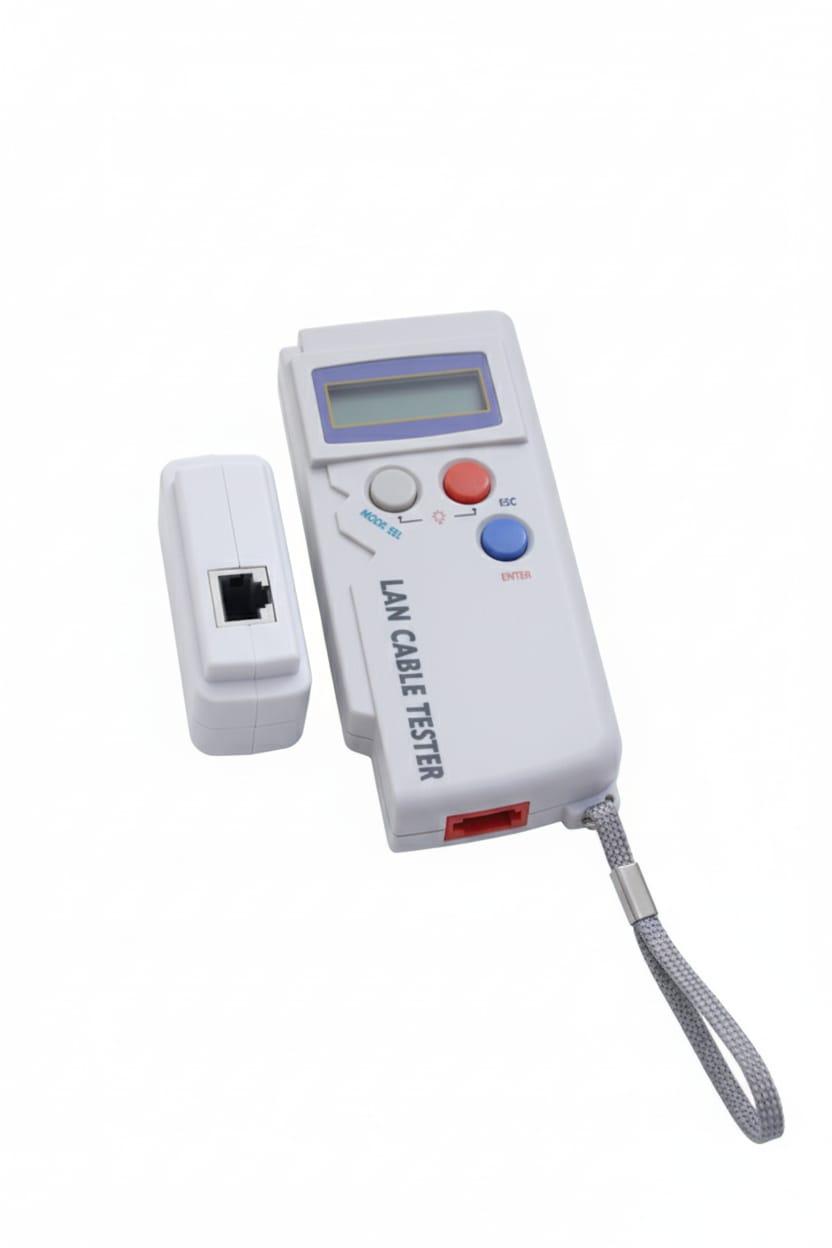

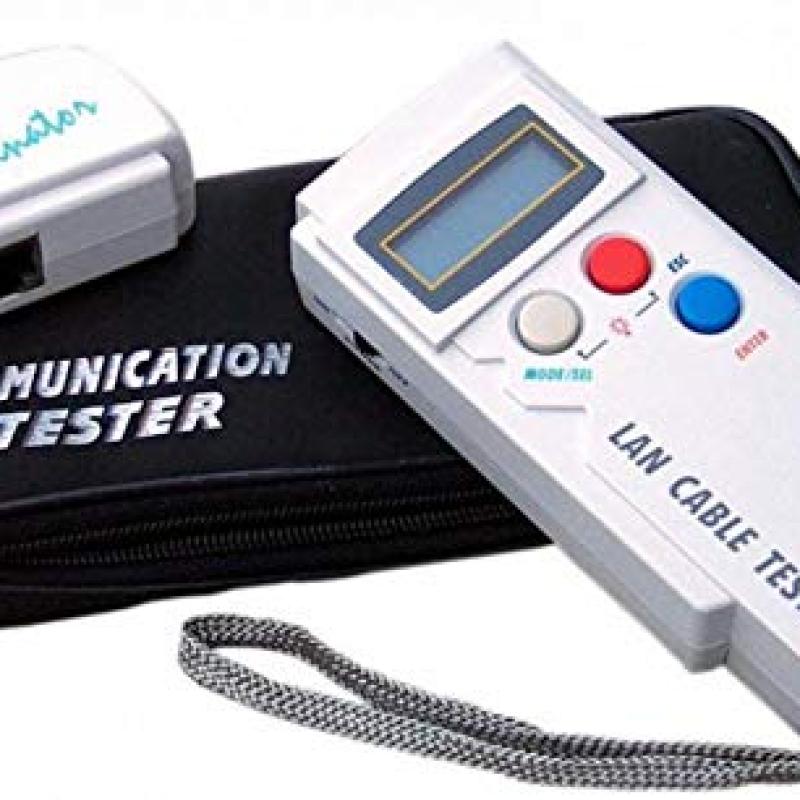

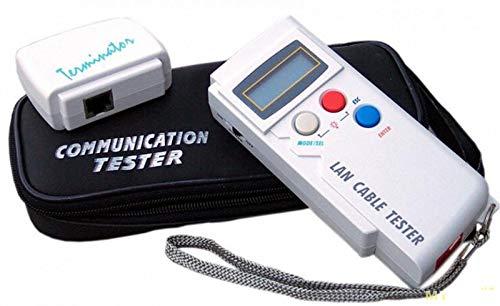

This LAN Cable Tester consists of two parts:

  1. Main Unit (Transmitter) – includes an LCD display and control buttons.
  2. Remote Unit (Receiver) – detachable part with an RJ45 port for testing cable continuity over distance

⚙️ Key Features:

  • LCD Display – shows wire map and test results clearly.
  • Buttons:
    • MODE/SEL – switches between testing modes.
    • ESC – cancels or goes back.
    • ENTER – starts test or confirms options.
  • Functions:
    • Tests network cable continuity, open circuits, shorts, and miswiring.
    • Detects split pairs and wiring sequence errors.
    • Can test both straight-through and crossover cables.
  • Ports:
    • RJ45 for Ethernet cables.
    • RJ11 (red port) for telephone cable testing (some models).
  • Power Supply: Operates on a 9V battery (check the battery compartment).
