⚙️ Technical Specifications
| Item | Specification |
|---|---|
| Socket Type | IEC320 C13 (Double socket × 5 modules = 10 outlets) |
| Socket Quantity | 10 Way |
| Power Input | IEC60309 Industrial Plug (32A, 2P+E, Blue) |
| Bracket Install | Back input |
| Installation Type | Frontal installation |
| Cable Specification | 3 × 6.0 mm² × 3 m |

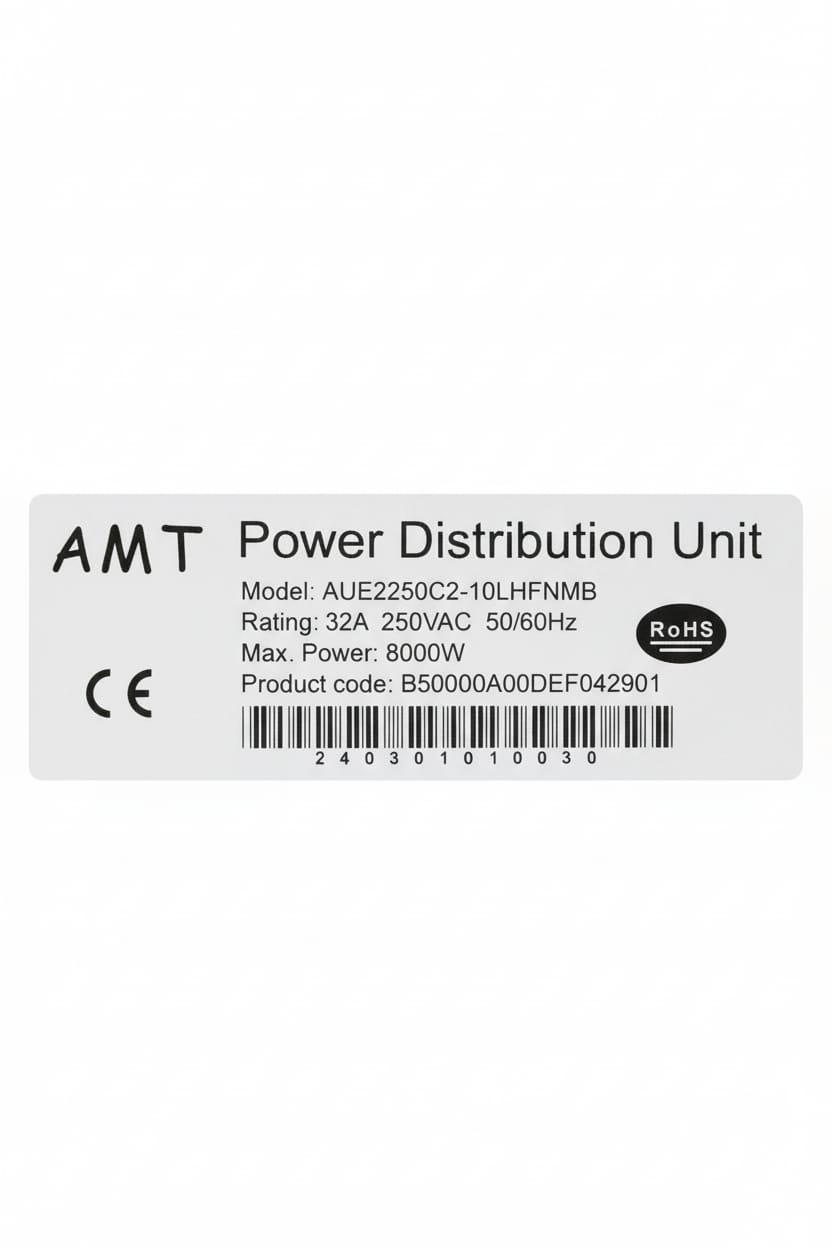

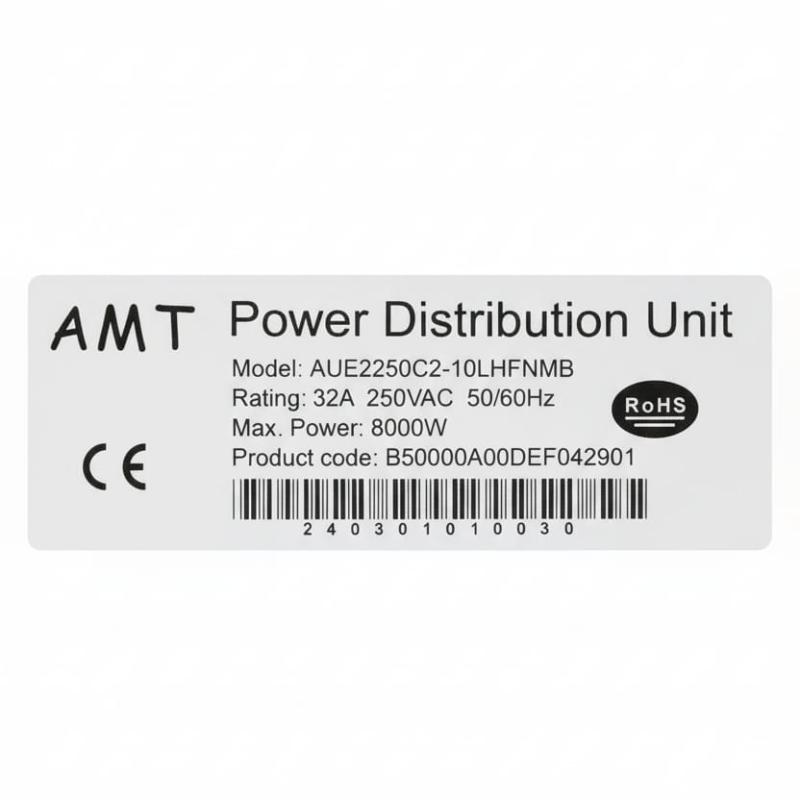

| Rated Voltage | 250 V AC, 50/60 Hz |
| Rated Current | 32 A |
| Max. Current | 32 A |
| Max. Power | 8000 W |
| PDU Exponent | 0.647 |
| Control Function | None |
| Protection Function | None |
| Connection Wire | Internal wire 2.5 mm² (14 AWG) |
| Cable Clamp | Type (19) – Fixed cable clamp |
| Case Color | Black |
| Material | Metal Body |
| Dimensions (L × W × H) | 482 × 44.4 × 44.4 mm |
| Mounting Length | 461 mm |
| Case Length | 429 mm |
| Case Tolerance | ±1.0 mm |
| Fittings | 2 pcs φ6×16 mm cross bolts, 2 pcs M6 floating nuts |
| Safety Certification | CE |
| Environmental Compliance | RoHS |
| Manufacturer | SHENZHEN CLEVER ELECTRONIC CO., LTD |
| Brand | AMT |

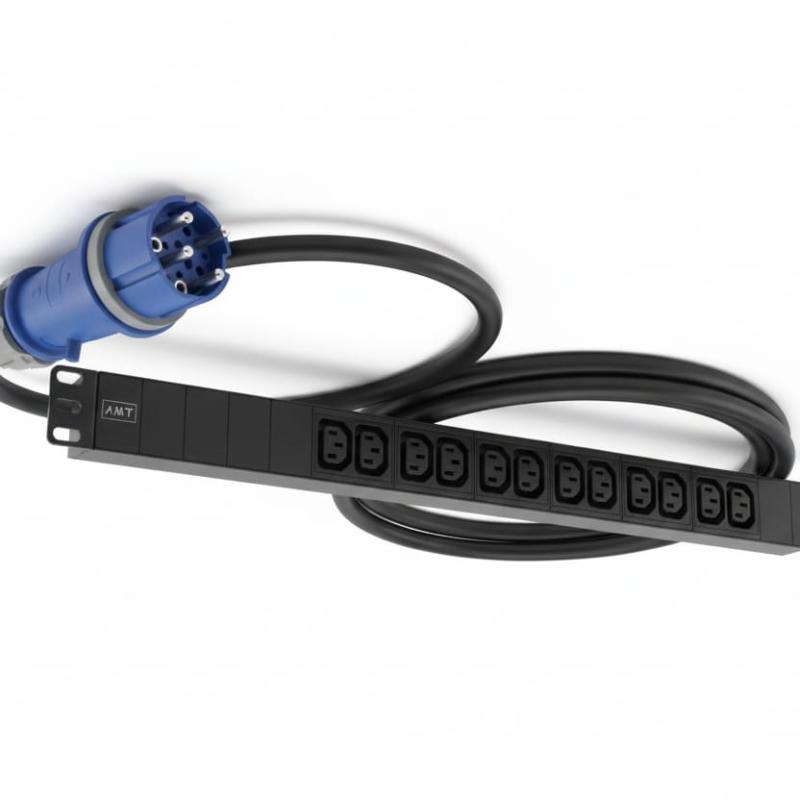

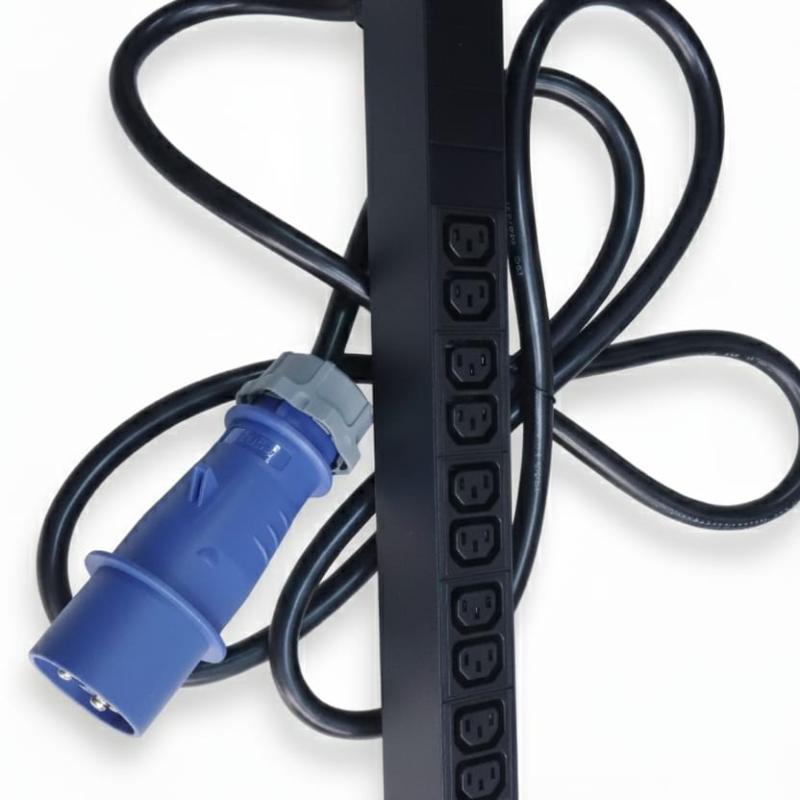

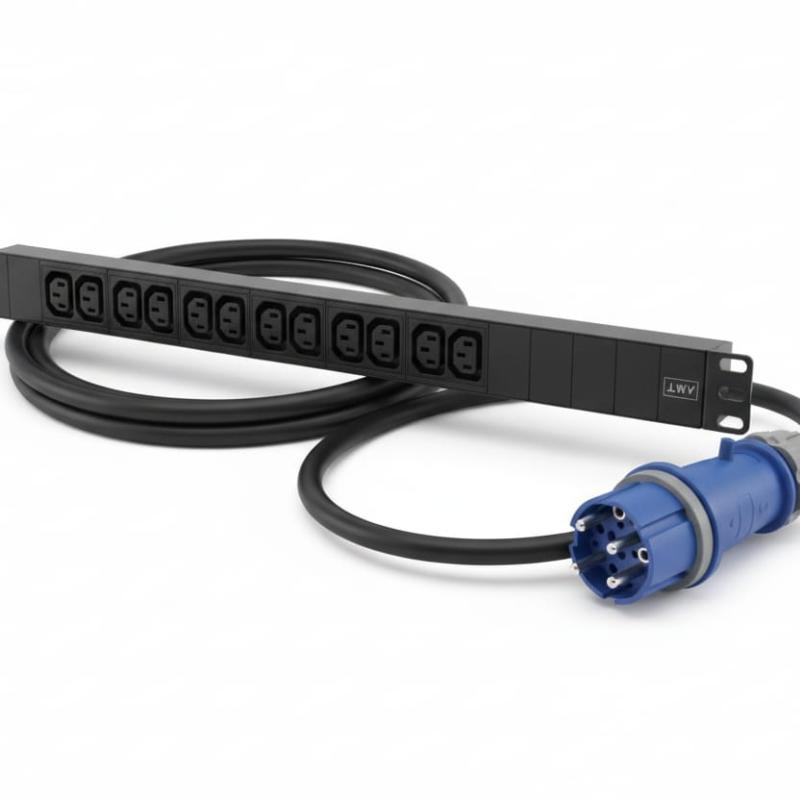

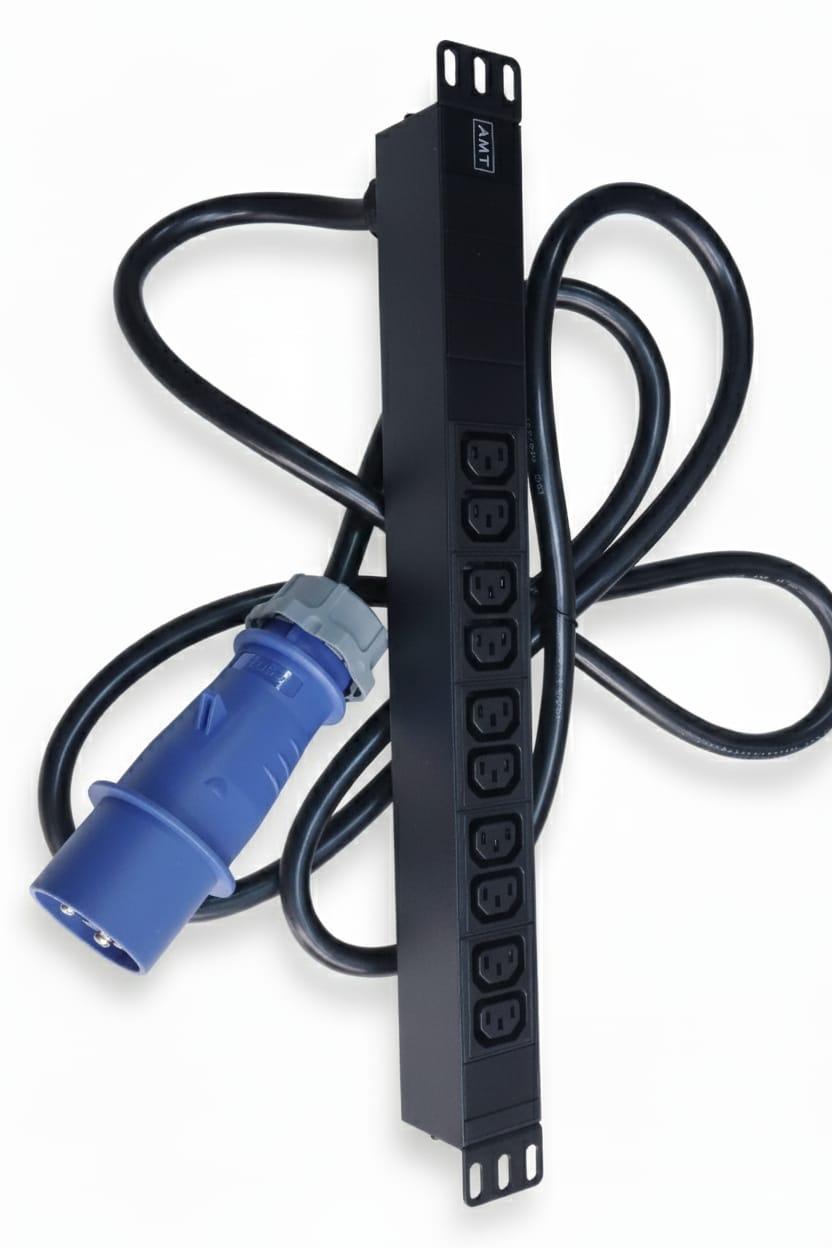

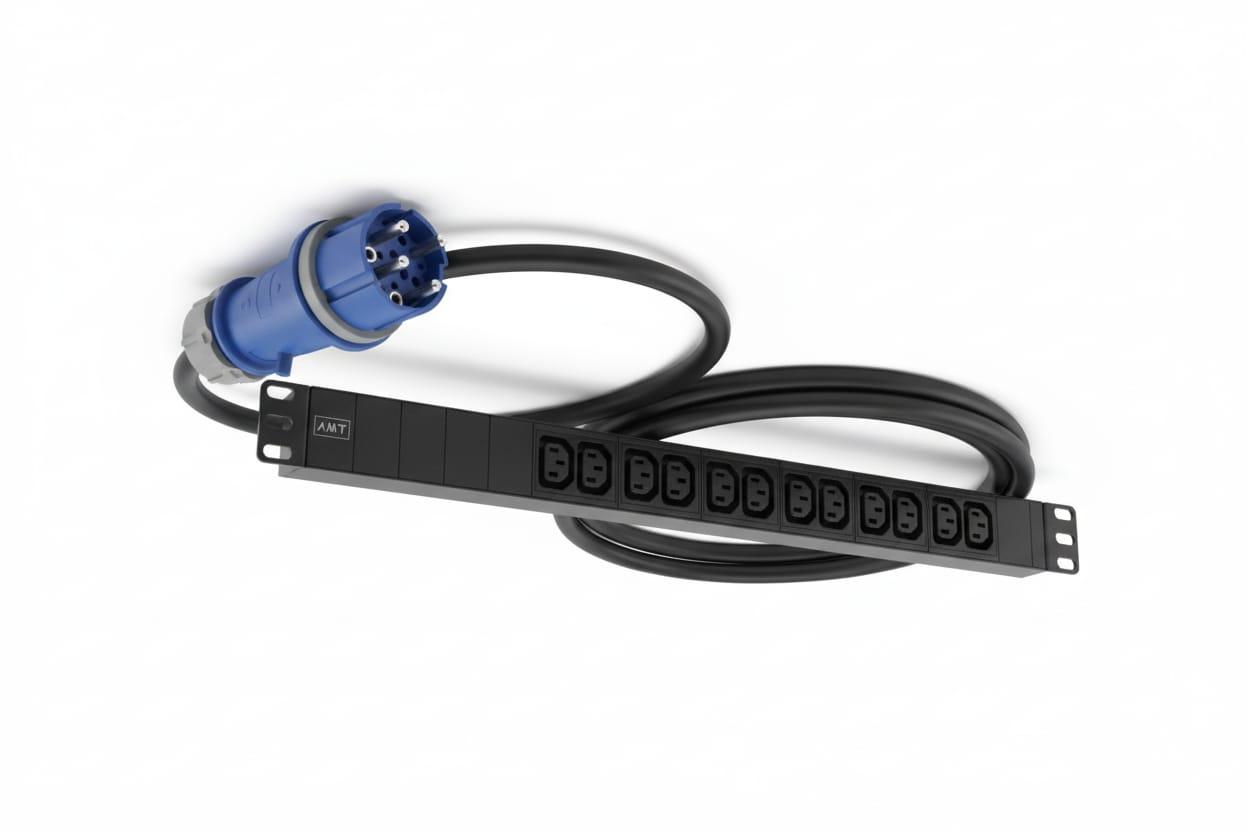

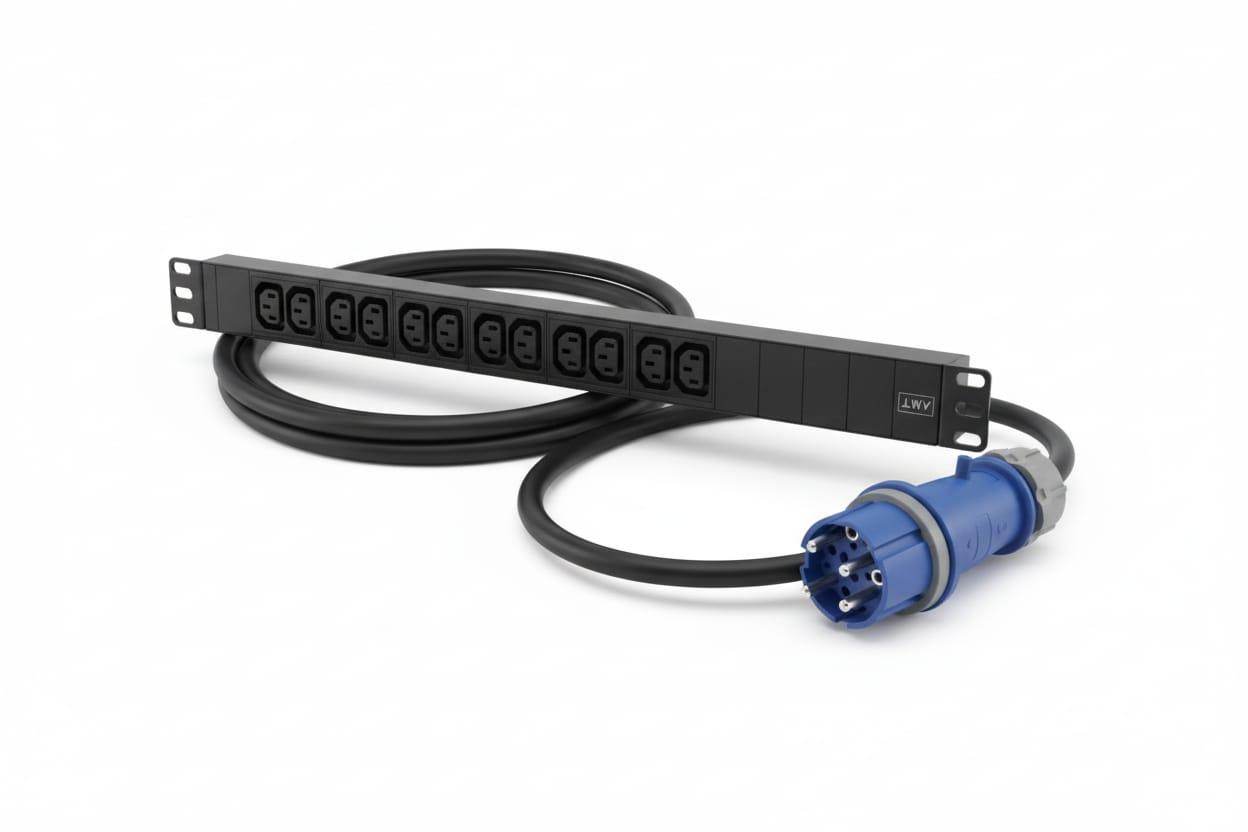

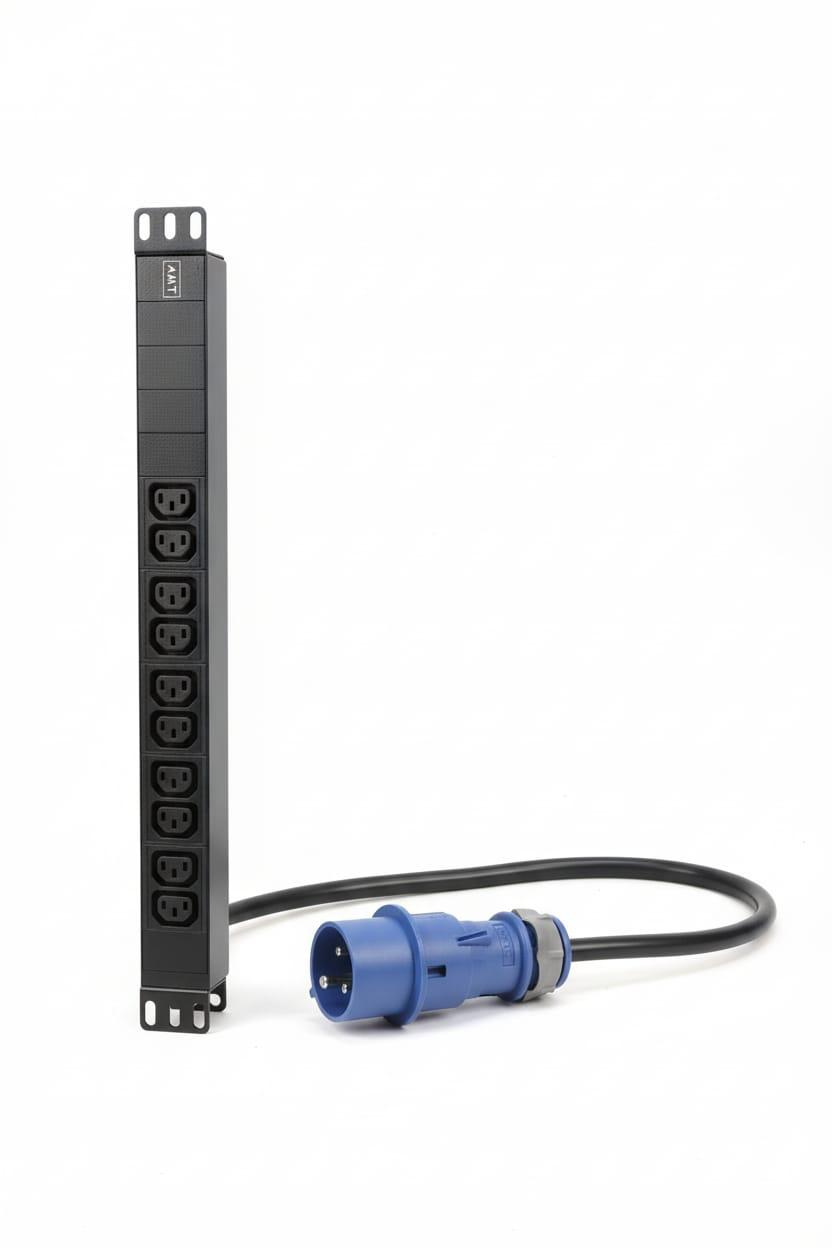

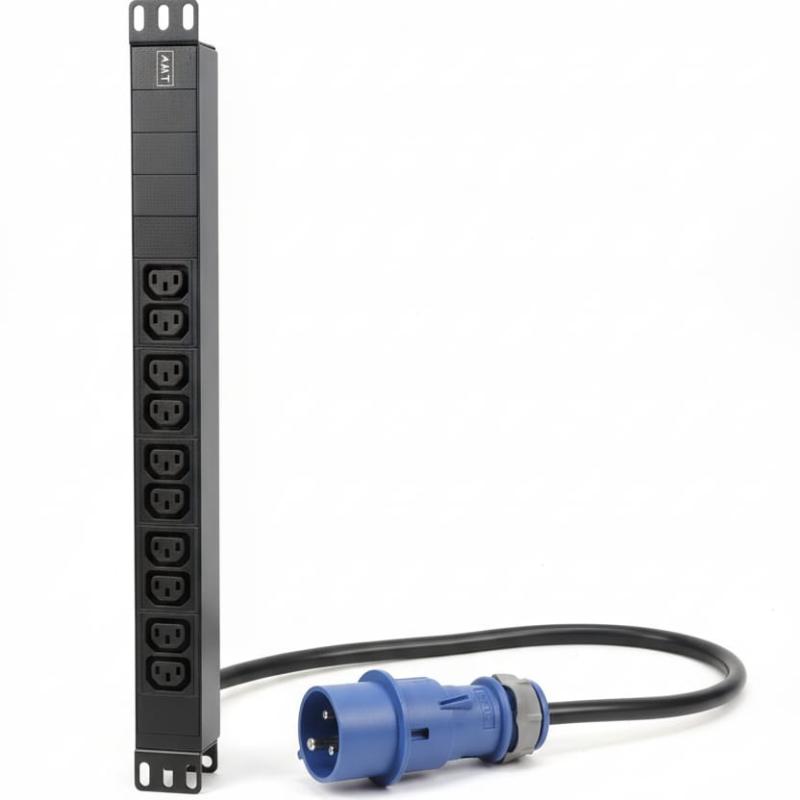

- Datasheet. 10 WAY C13 PDU WITH 32A INDUSTRIAL PLUG
