RJ45 CAT6 INLINE COUPLER KEYSTONE TYPE JE
AED 18.00
AED 25.00

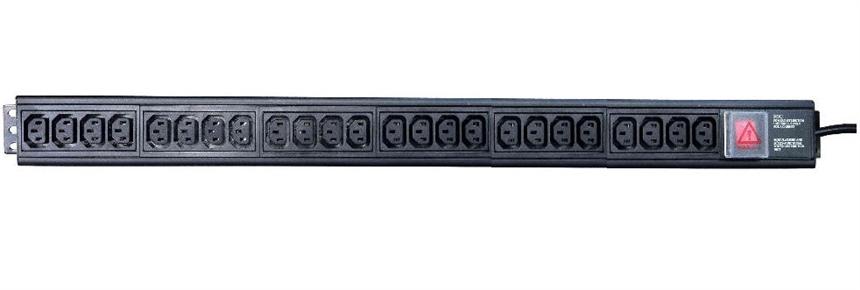

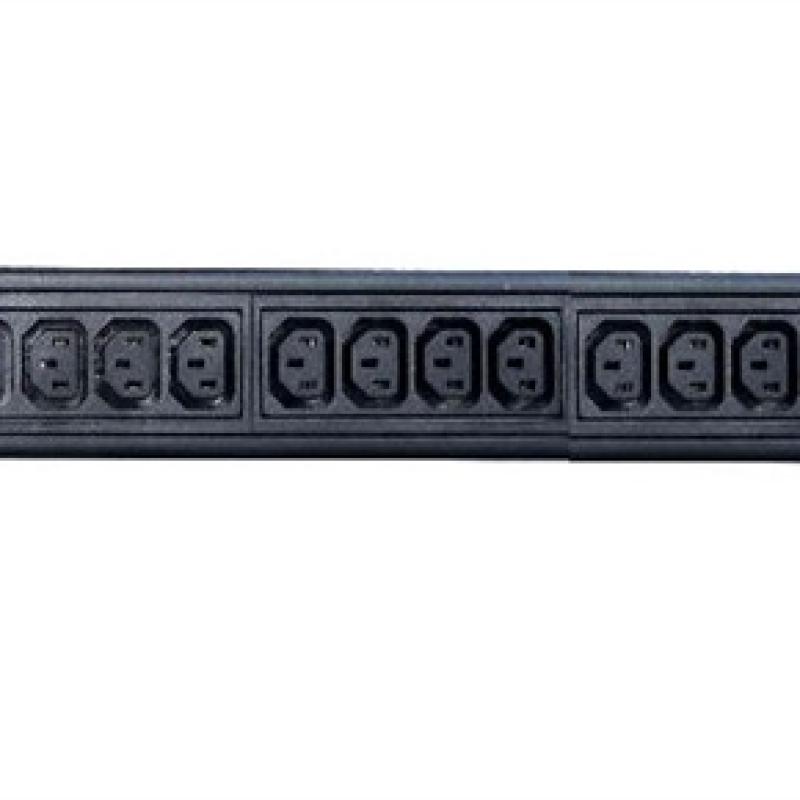

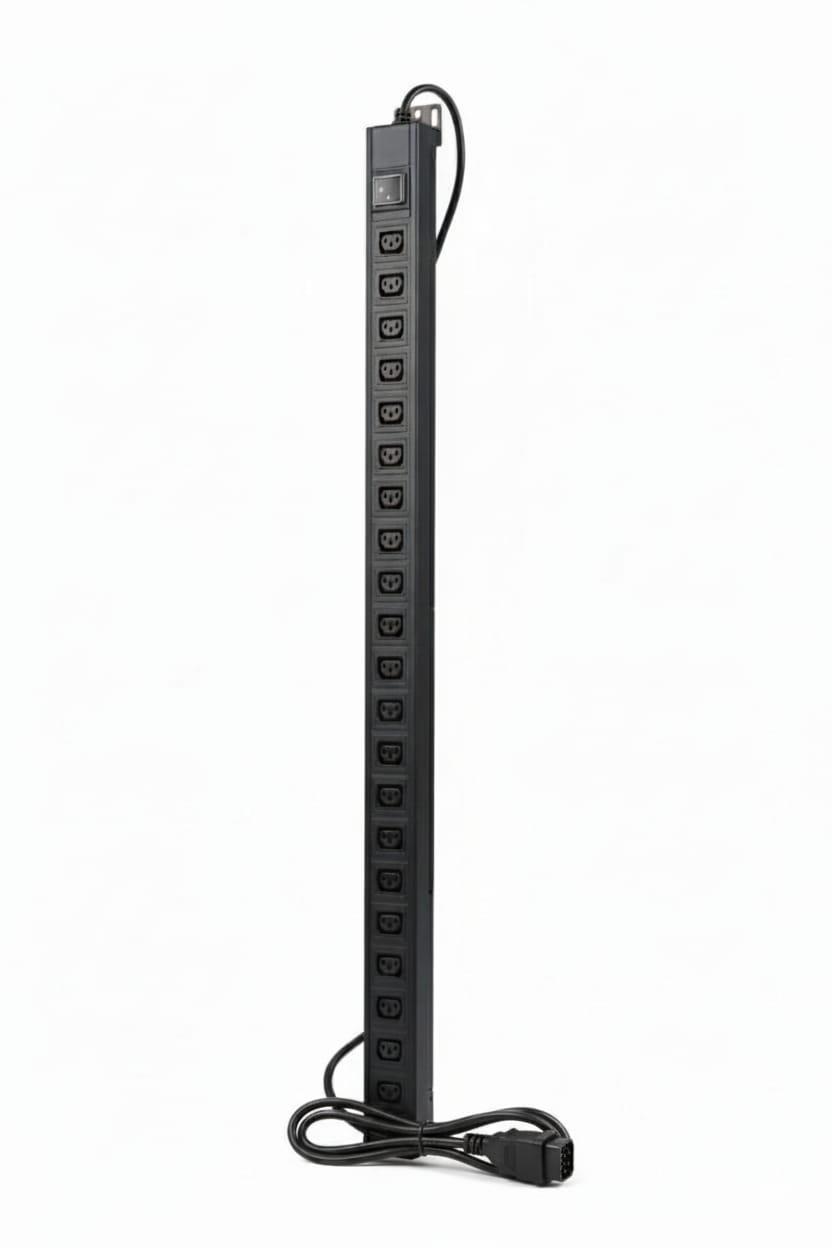

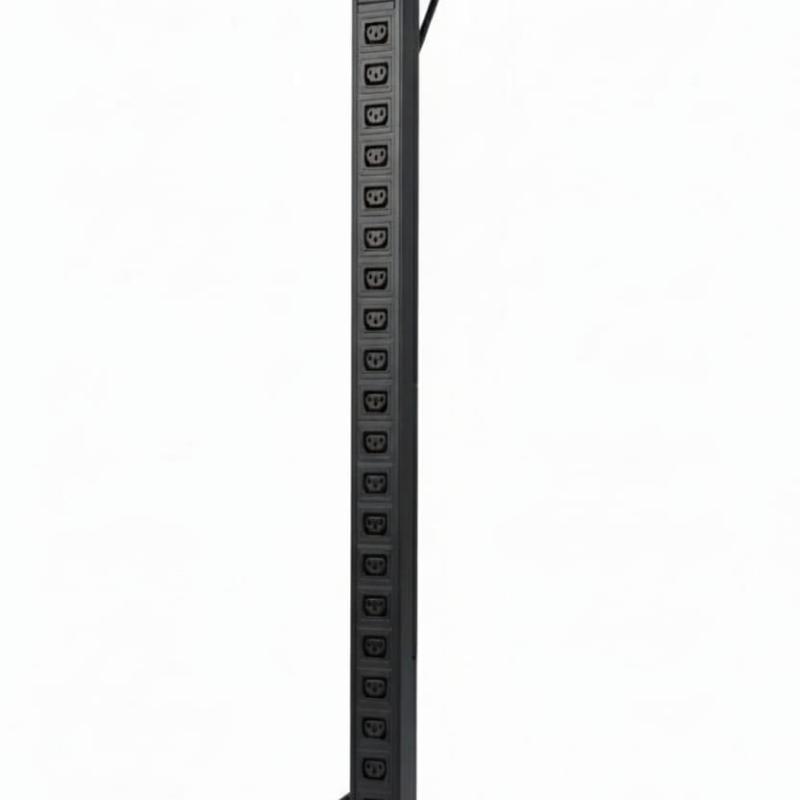

⚙️ Technical Specifications
| Item | Specification |
|---|---|
| Socket Type | IEC320 C13 (Single) |
| Socket Quantity | 24 Way |
| Power Input | IEC320 C14 Plug (10A) |
| Bracket Install | Left-end single input |
| Installation Type | Inverse installation |
| Cable Specification | 3 × 1.0 mm² × 3 m |
| Rated Voltage | 250 V AC, 50/60 Hz |
| Rated Current | 10 A |
| Max. Power | 2500 W |
| PDU Exponent | 1.467 |
| Switch Type | Illuminated rocker switch (with protective cover) |
| Protection Function | None |
| Connection Wire | Internal wire 1.5 mm² (16 AWG) |
| Cable Clamp | Type (11) – Fixed cable clamp |
| Case Material | Metal |
| Case Color | Black anodized finish |
| Dimensions (L × W × H) | 900 × 44.4 × 44.4 mm |
| Mounting Length | 870 mm |
| Case Length | 840 mm |
| Case Tolerance | ±1.0 mm |
| Fittings | 2 pcs φ6×16 mm cross bolts, 2 pcs M6 floating nuts |
| Safety Certification | CE |
| Environmental Compliance | RoHS |
| Manufacturer | SHENZHEN CLEVER ELECTRONIC CO., LTD |
| Brand | AMT |
