Optical Performance

• Insertion Loss: ≤ 0.20 dB (typical), ≤ 0.30 dB (maximum)
• Return Loss: ≥ 60 dB (APC)
• Repeatability: ≤ 0.10 dB variation
• Durability: > 1000 mating cycles

Mechanical Specifications

• Operating Temperature: –40°C to +85°C
• Storage Temperature: –40°C to +85°C
• Ferrule Sleeve: Ceramic for precision alignment
• Retention Force: ≥ 200 g
• Mating Durability: ≥ 1000 times

Compliance & Standards

• Complies With:
  • IEC 60874-10-1
  • TIA/EIA 604-10 (FOCIS-10)
  • RoHS compliant
• Flammability Rating: UL94-V0

Key Features

• Low insertion loss & high return loss
• Stable performance in varying temperatures
• Zirconia ceramic sleeve for accurate core alignment

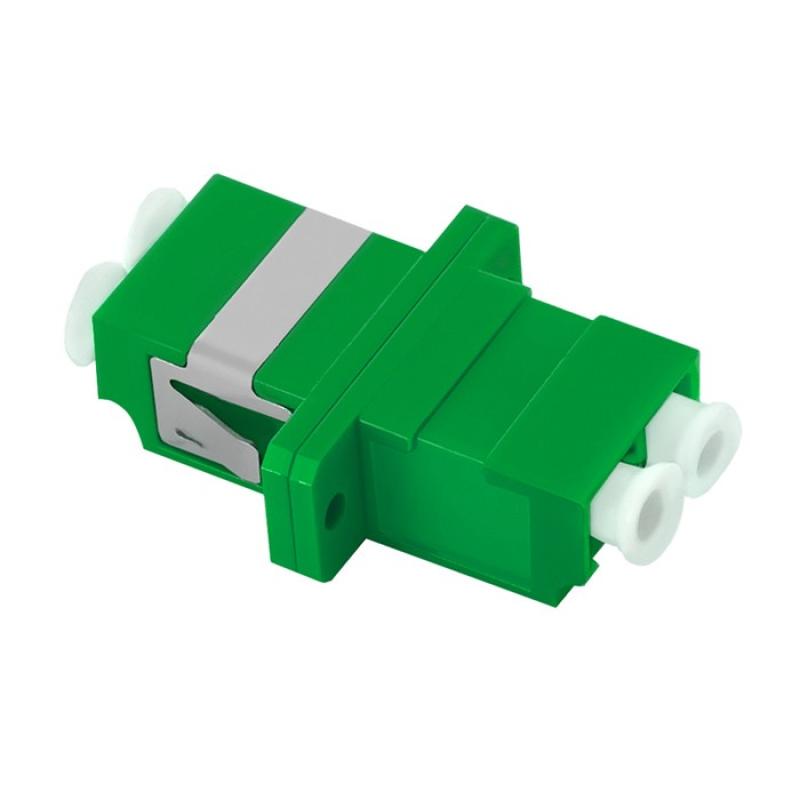

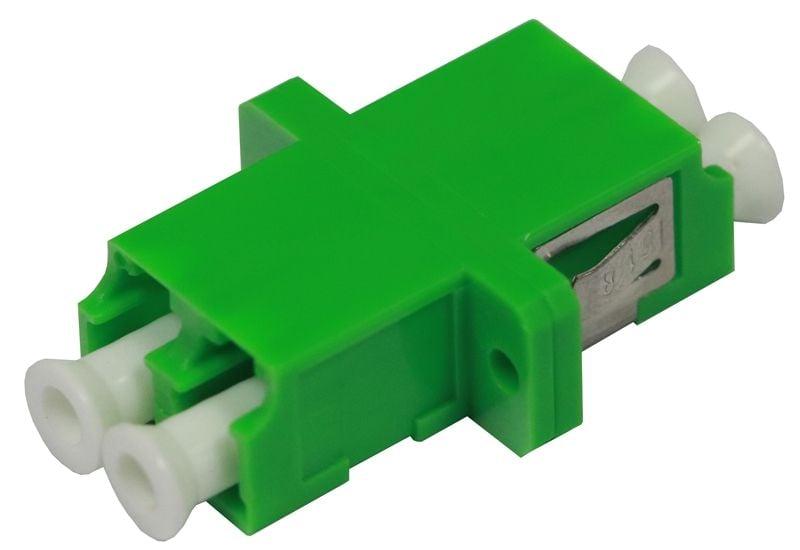

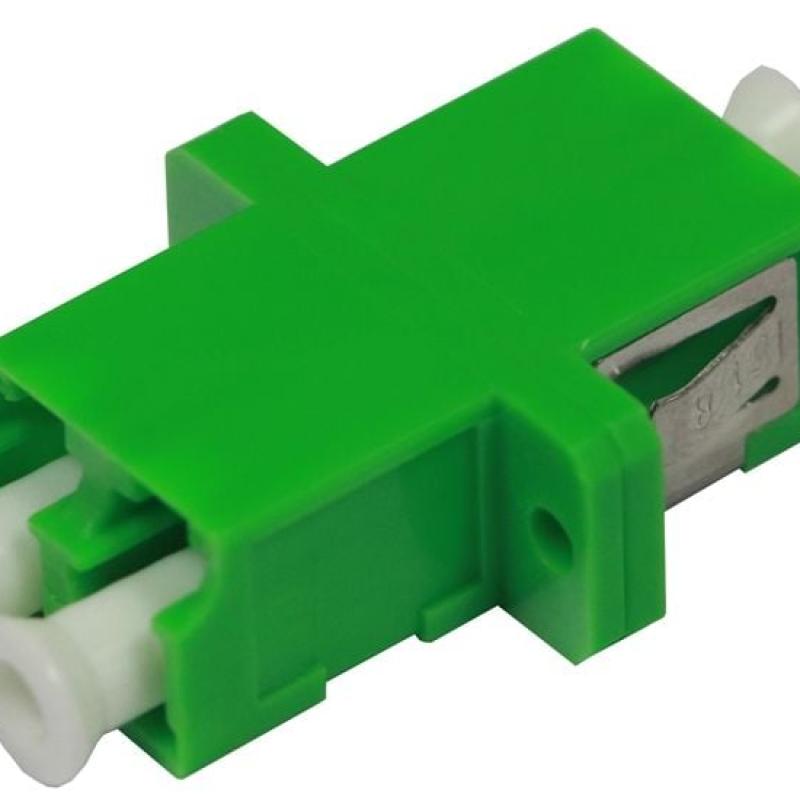

• Duplex LC/APC connectivity for SM fiber networks
• High-density design suitable for patch panels and enclosures
• Long-life durability and reliability
• Green housing for APC identification

Typical Applications

• FTTH / FTTx networks
• ODF fiber distribution frames
• Fiber patch panels & termination boxes
• Telecom & ISP networks
• CATV
• Optical LAN & Data Centers
