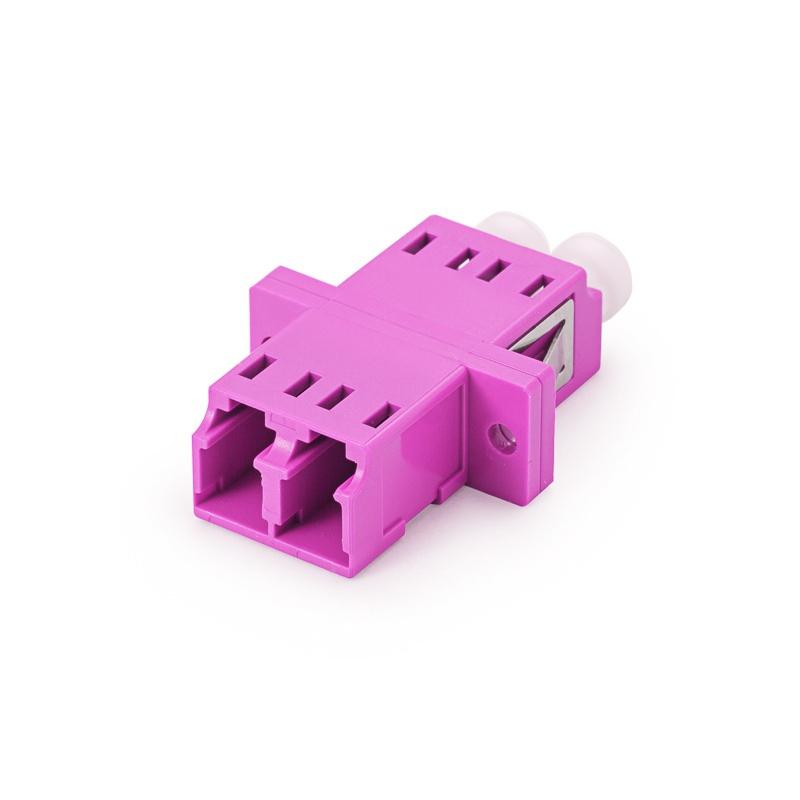

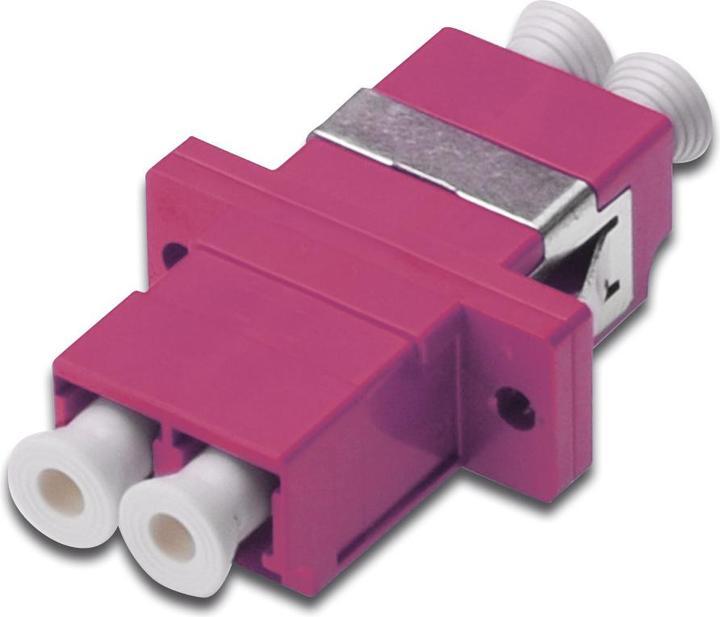

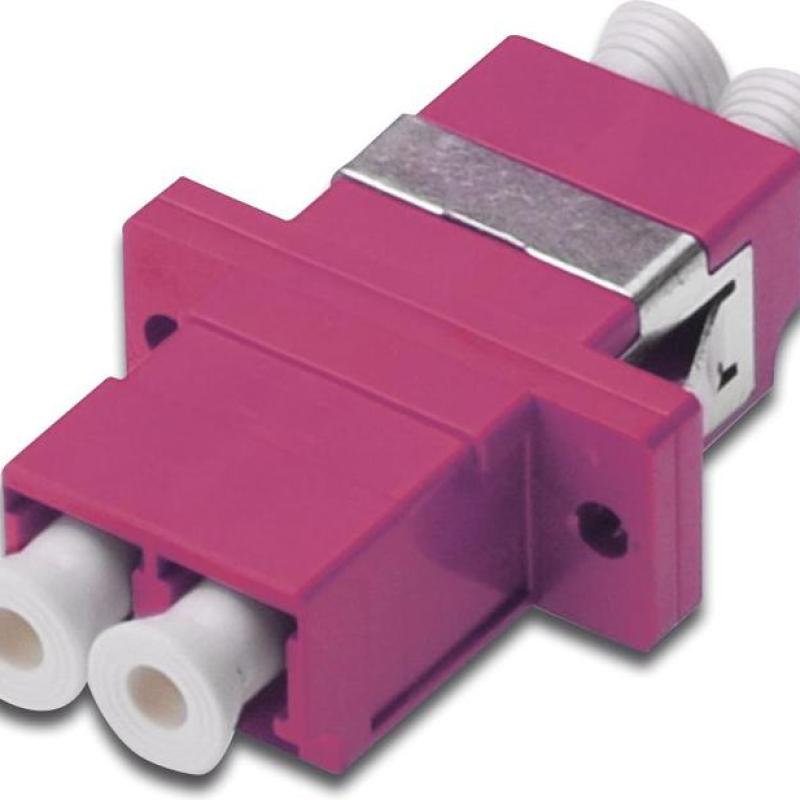

LC MM OM4 DUPLEX ADAPTOR KUWES

Brands: Kuwes

AED 20.00 AED 30.00 -33% Off

🔧 Key Specifications

Connector Type: LC (Lucent Connector), Duplex
Fiber Type: Multimode (MM), optimized for OM4
Color Coding: Magenta or pink, indicating OM4 compatibility for easy identification
Insertion Loss: Typically ≤ 0.2 dB, ensuring minimal signal degradation
Return Loss: ≥ 20 dB for multimode connectors
Sleeve Material: Phosphor bronze (standard for multimode), or zirconia ceramic for tighter tolerance
Operating Temperature: −40°C to +85°C, suitable for harsh environments
Mounting Options: Flanged or flangeless; supports panel mounting with retaining clips or screws
Compliance Standards:
- TIA-604-10 (FOCIS-10)
- IEC 61754-20
- GR-326
- ANSI/TIA 568 C.3

SKU: SF-2443-C5UL
Categories: Fiber Cables
Availability: In stock

Description

⚙️ Functional Highlights

Application Areas:
- Data centers
- Telecommunication networks
- CATV systems
- Gigabit Ethernet
- Multimedia and premise installations
Design Features:
- Precision alignment via split sleeve for accurate ferrule mating
- Dust caps included for protection
- High repeatability and thermal stability
- Plastic body with LC mechanics for lightweight durability

🧠 Why OM4 Matters

OM4 fiber supports 10 Gb/s up to 550 meters, and 40/100 Gb/s up to 150 meters, making it ideal for high-speed short-range data transmission.
The adapter ensures low signal loss and stable performance across repeated connections.
