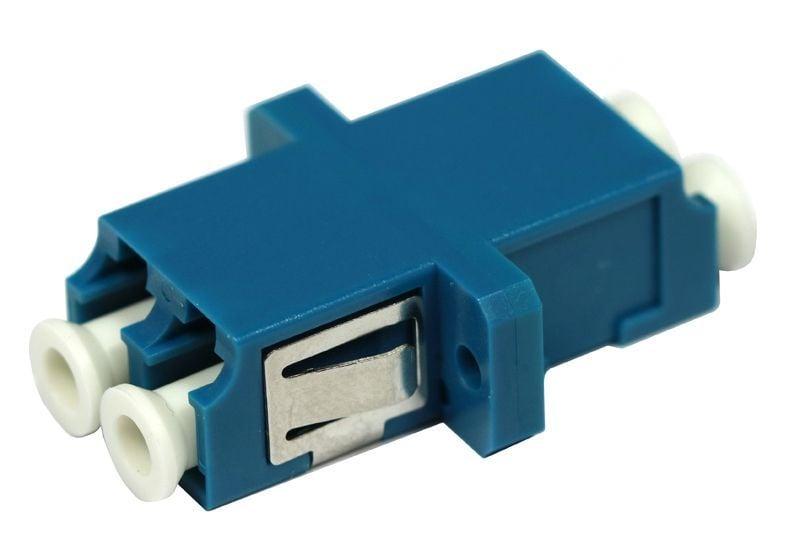

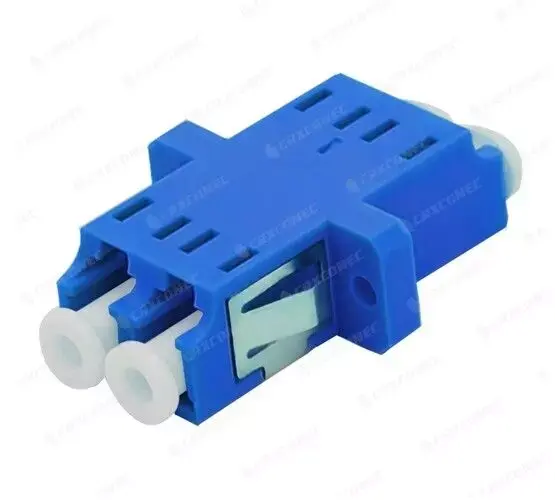

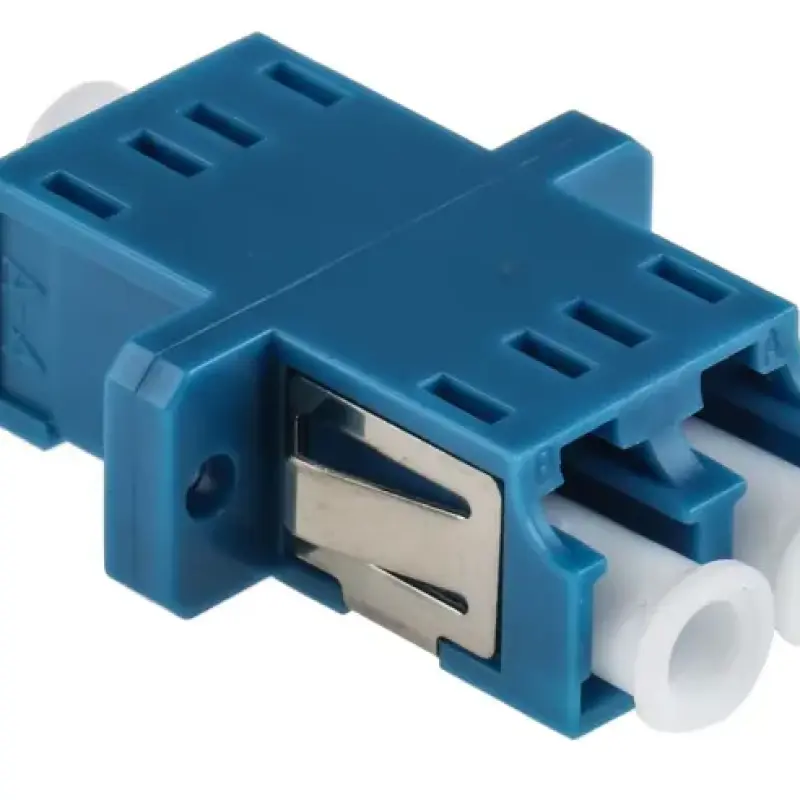

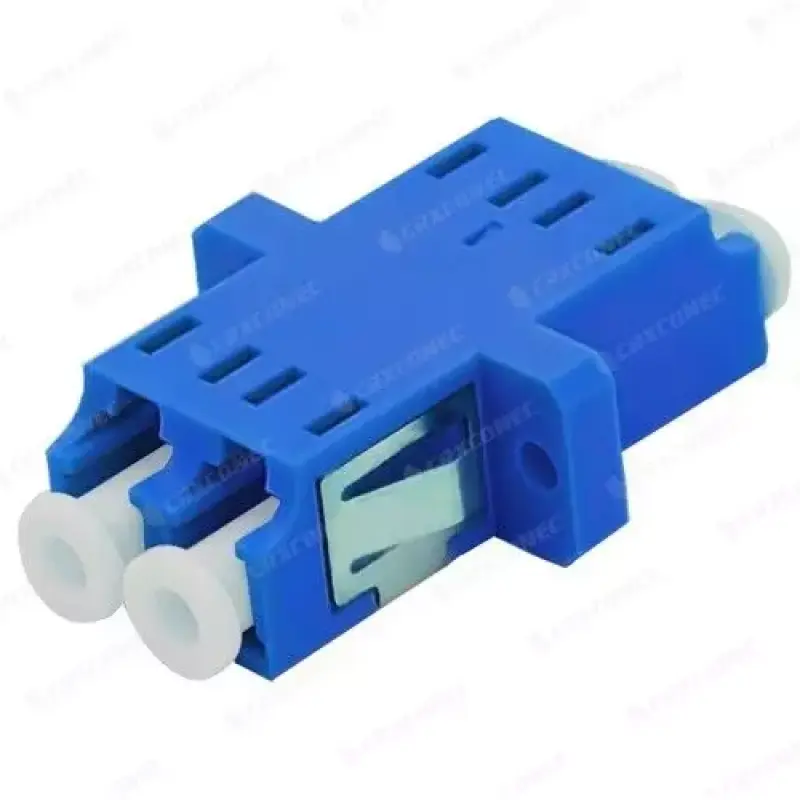

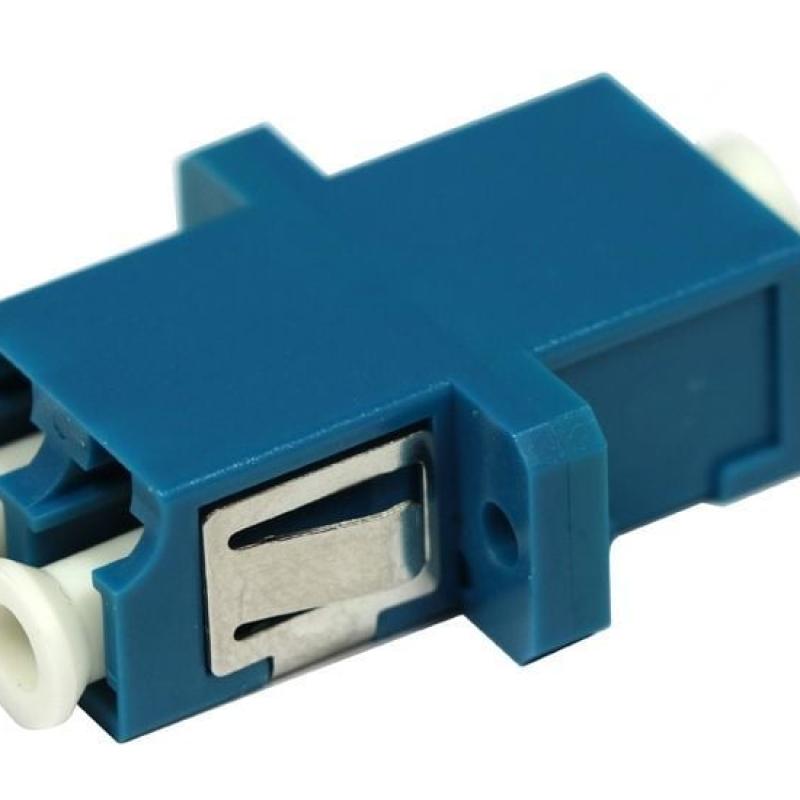

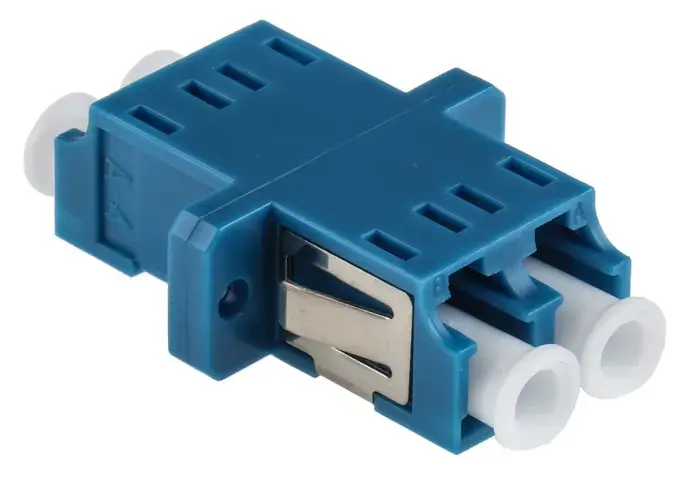

Name: LC Duplex Single-Mode (SM) Fiber Optic Adapter / Coupler
Brand: Kuwes
SKU: SF-2443-WLCZ
Price: 14 AED
Availability: InStock

Email to a Friend

LC Duplex Single-Mode (SM) Fiber Optic Adapter / Coupler

Brands: Kuwes

AED 14.00 AED 20.00 -30% Off

📋 Product Specifications

Detail	Specification	Notes
Adapter Type	LC to LC Duplex	Connects two LC duplex patch cables or four LC simplex connectors.
Fiber Compatibility	Single-Mode (SM)	Designed for $9/125$ single-mode fiber.
Polish Type	UPC (Ultra Physical Contact)	Indicated by the Blue color coding.
Alignment Sleeve	Zirconia Ceramic	Essential for precise alignment of small-diameter single-mode ferrules to ensure minimal signal loss.
Housing Material	Durable Polymer/Engineering Plastic	Typically high-impact and flame-retardant (e.g., UL94 V-0 compliant).
Mounting Style	Flanged (Standard Duplex Footprint)	Includes mounting flanges/clips for easy, tool-less snap-in installation into patch panels, wall outlets, or distribution boxes.
Color Coding	Blue	Industry standard color for Single-Mode UPC components.

📊 Optical & Performance Metrics

Parameter	Industry Standard Value	Significance
Insertion Loss (IL)	0.2db(Typical 0.1 $dB$ )	Low IL ensures minimal signal degradation across the adapter joint.
Return Loss (RL)	$50db$ (Typical 55db )	High RL for UPC polish means low back-reflection, which is good for most standard data transmission.
Ferrule Diameter	1.25 mm	Small form-factor ferrule specific to LC connectors.
Mating Durability	500 Cycles	The minimum number of reliable insertions/removals.
Operating Temp.	-40C to +85C	Standard operating range for passive fiber components.

High Density: LC is a Small Form-Factor (SFF) connector, allowing for twice the port density compared to SC adapters in the same panel space.
Precision Alignment: Features Zirconia Ceramic Sleeves to achieve the reliable, high-precision alignment required for single-mode fiber.
UPC Optimized: The blue color and design are specifically optimized for Single-Mode LC/UPC connectors used in enterprise, telecom, and central office environments.
Quick Installation: Flanged body allows for fast, tool-less snap-in mounting into standard Duplex LC cutouts.
