⚙️ Mechanical Specifications

• Connector Type: RJ45 8P8C
• Wire Gauge Compatibility: 22–26 AWG solid and stranded

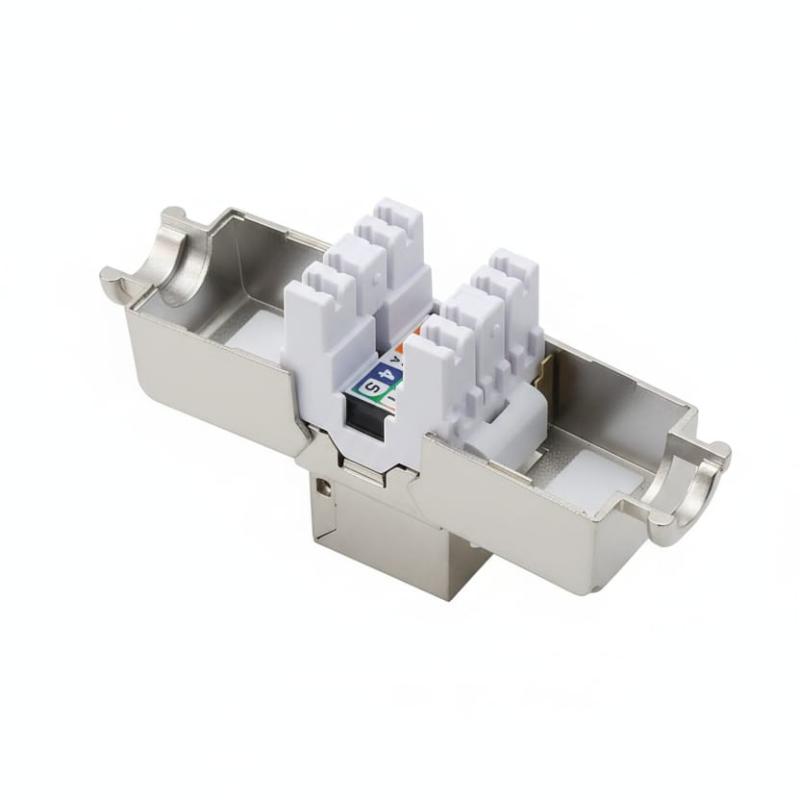

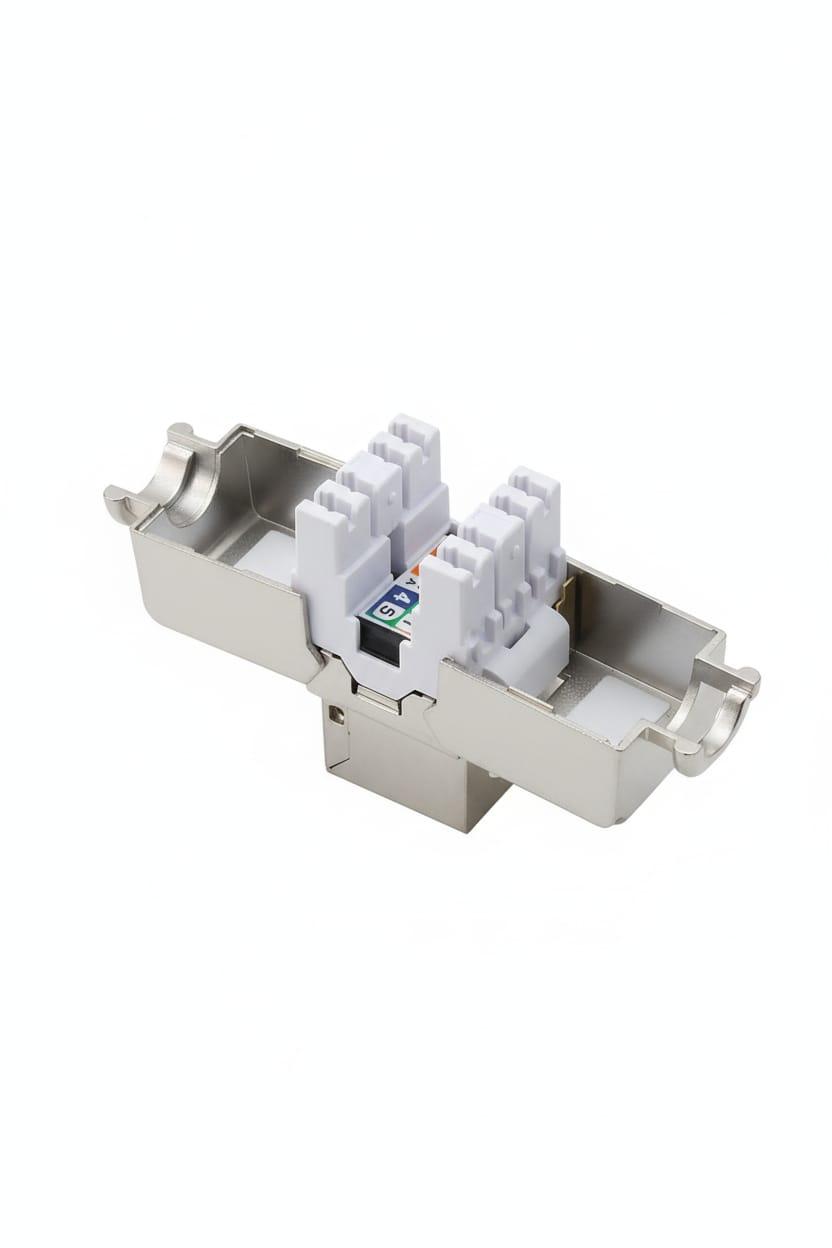

• Termination Style: IDC punch-down block
• Housing Material: Zinc alloy with nickel plating (for shielding)
• Plastic Components: Flame-retardant PC, UL94V-0
• Contact Material:
  • RJ45 pins: Phosphor bronze with 50μ gold plating
  • IDC terminals: Phosphor bronze with tin plating
• Mating Cycles: ≥ 750 insertions
• IDC Reterminations: ≥ 20 times

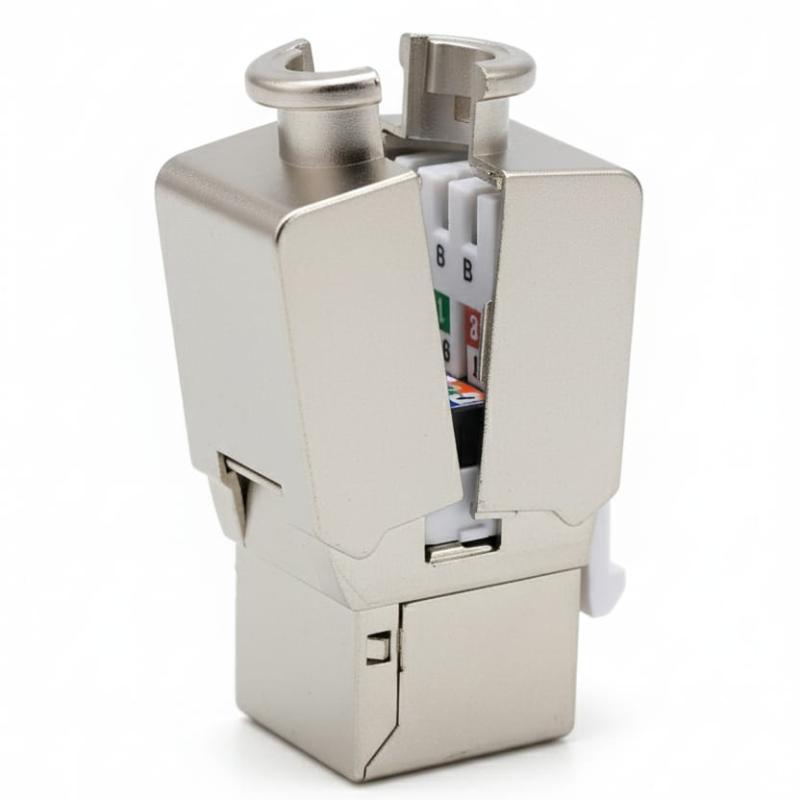

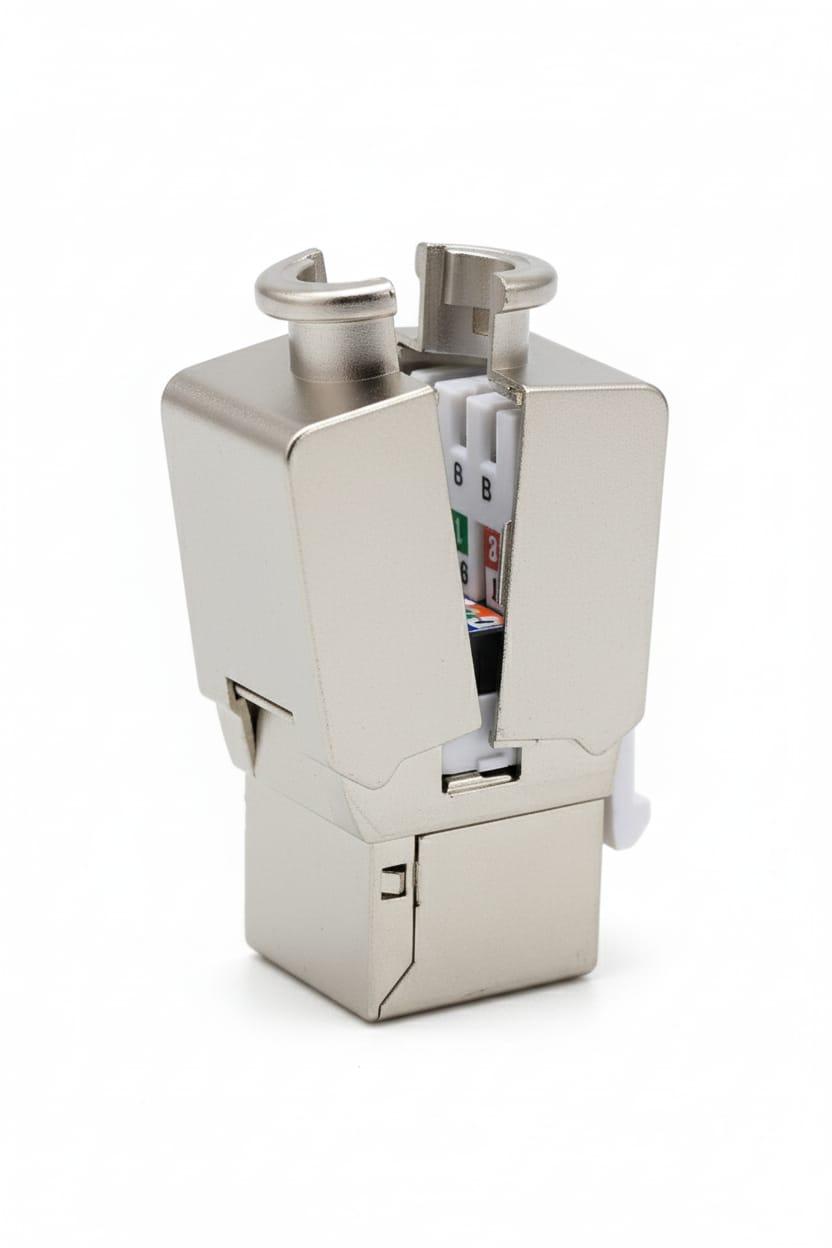

• Shielding Design: 360° metal enclosure for EMI/RFI protection

🔌 Electrical Specifications

• Bandwidth: Up to 500 MHz
• Supported Protocols:
  • 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
  • PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Insulation Resistance: ≥ 500 MΩ
• Contact Resistance: ≤ 20 mΩ
• Current Rating: 1.5 A at 25°C

🌡️ Environmental Specifications

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity Tolerance: Up to 93% non-condensing

🧪 Compliance & Certifications

• Wiring Schemes: T568A and T568B (color-coded on housing)
• Standards Met:
  • ANSI/TIA-568.2-D
  • ISO/IEC 11801
  • IEC 60603-7-51 (CAT6A STP)
• Certifications: UL Listed, RoHS Compliant

🛠️ Installation & Compatibility

• Mounting: Fits standard keystone wall plates, patch panels, and surface boxes
• Tool Compatibility: 110 and Krone punch-down tools
• Cable Compatibility: Shielded CAT6A cables (F/UTP, S/FTP)
