⚙️ Mechanical Specifications

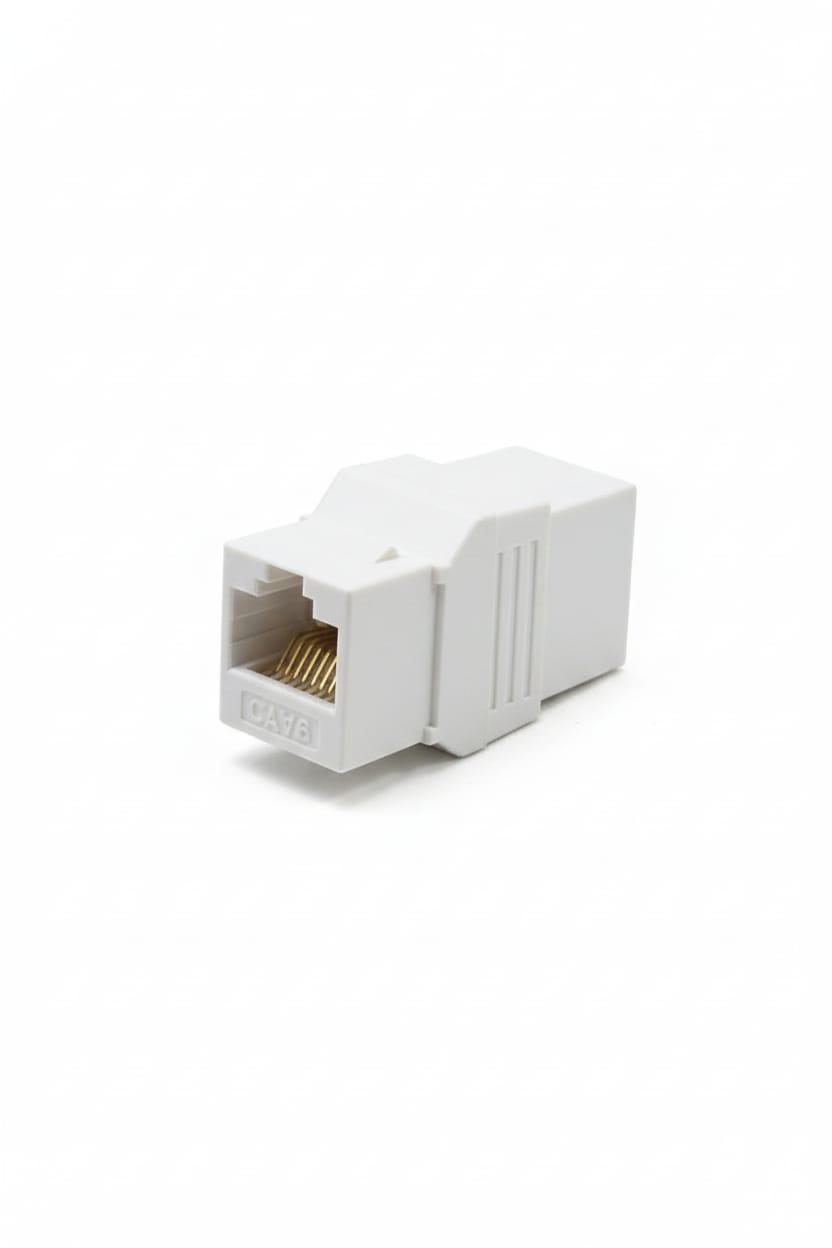

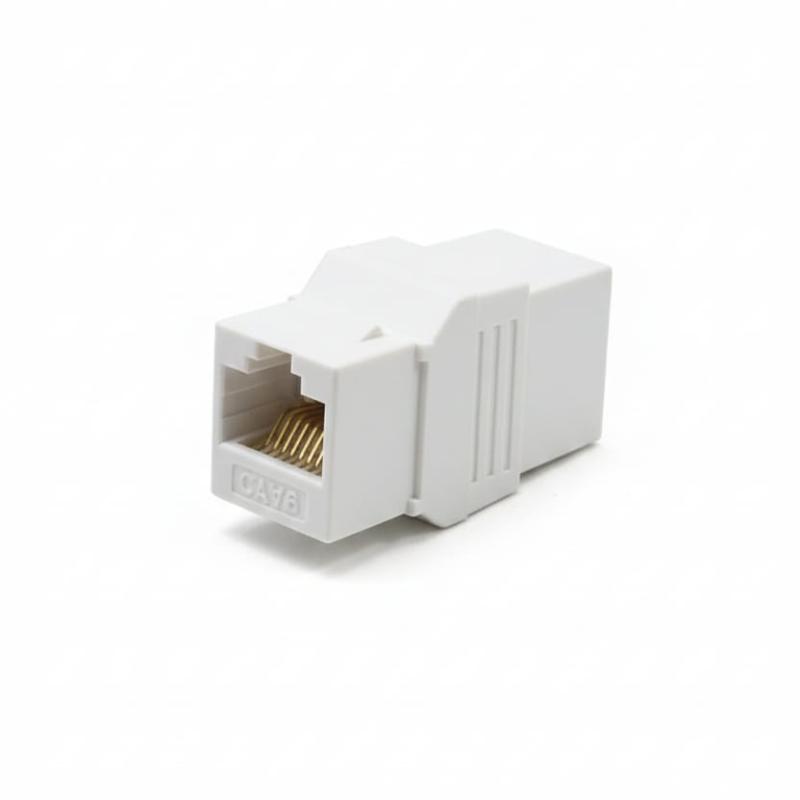

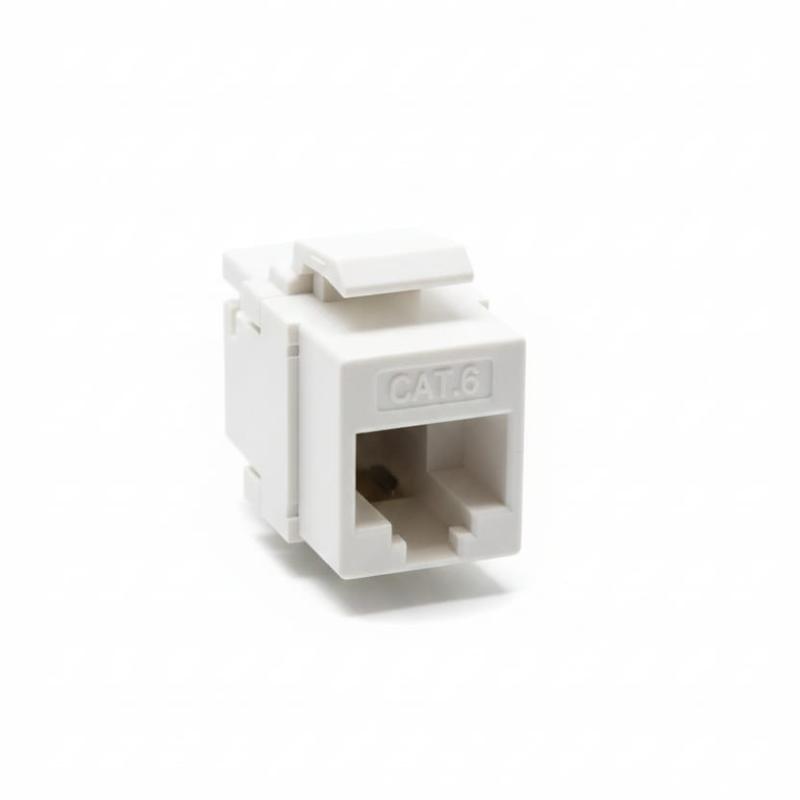

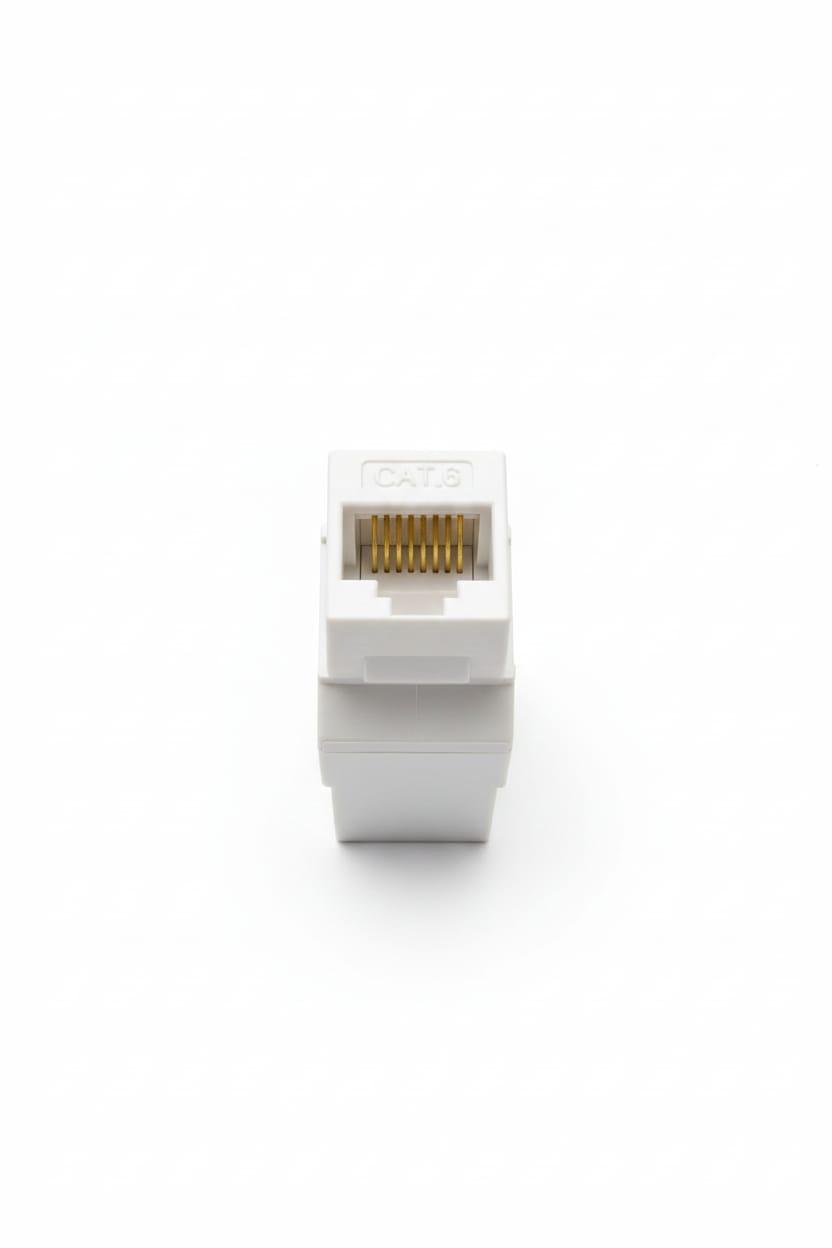

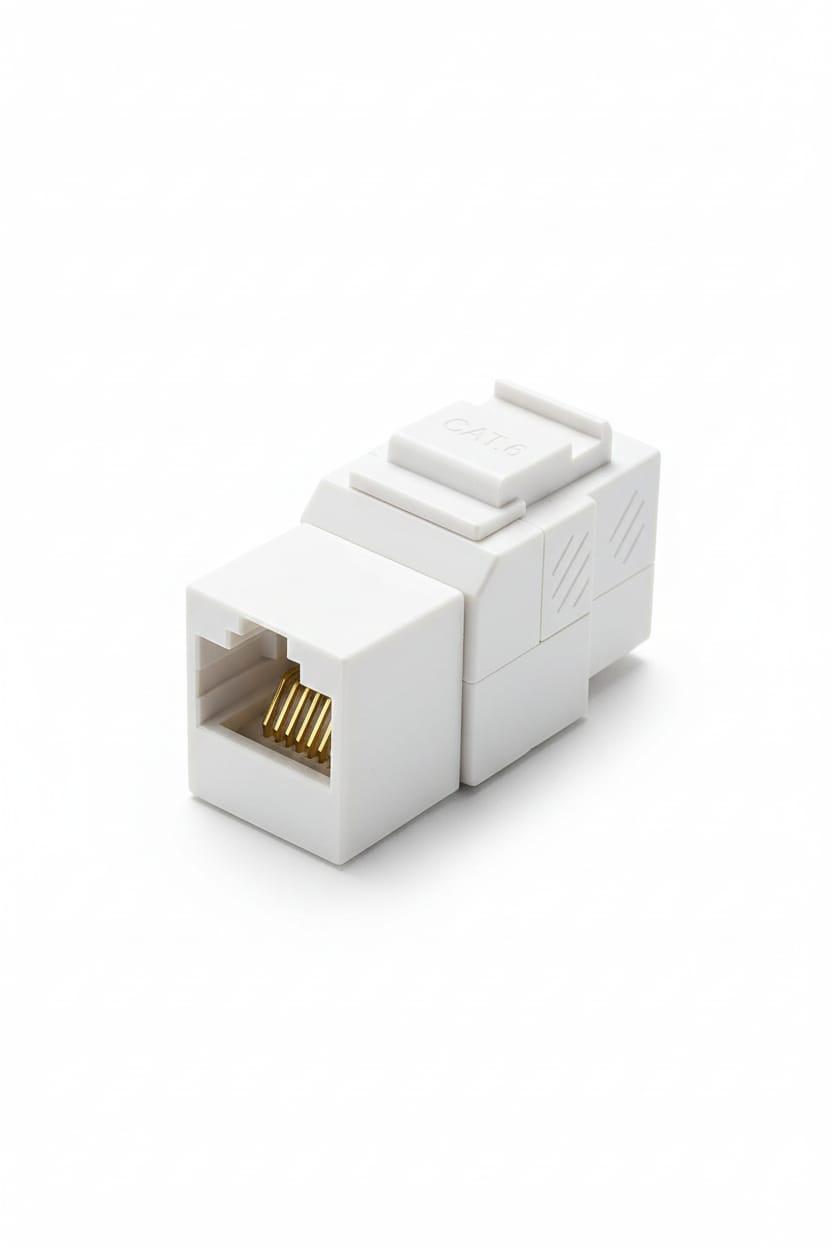

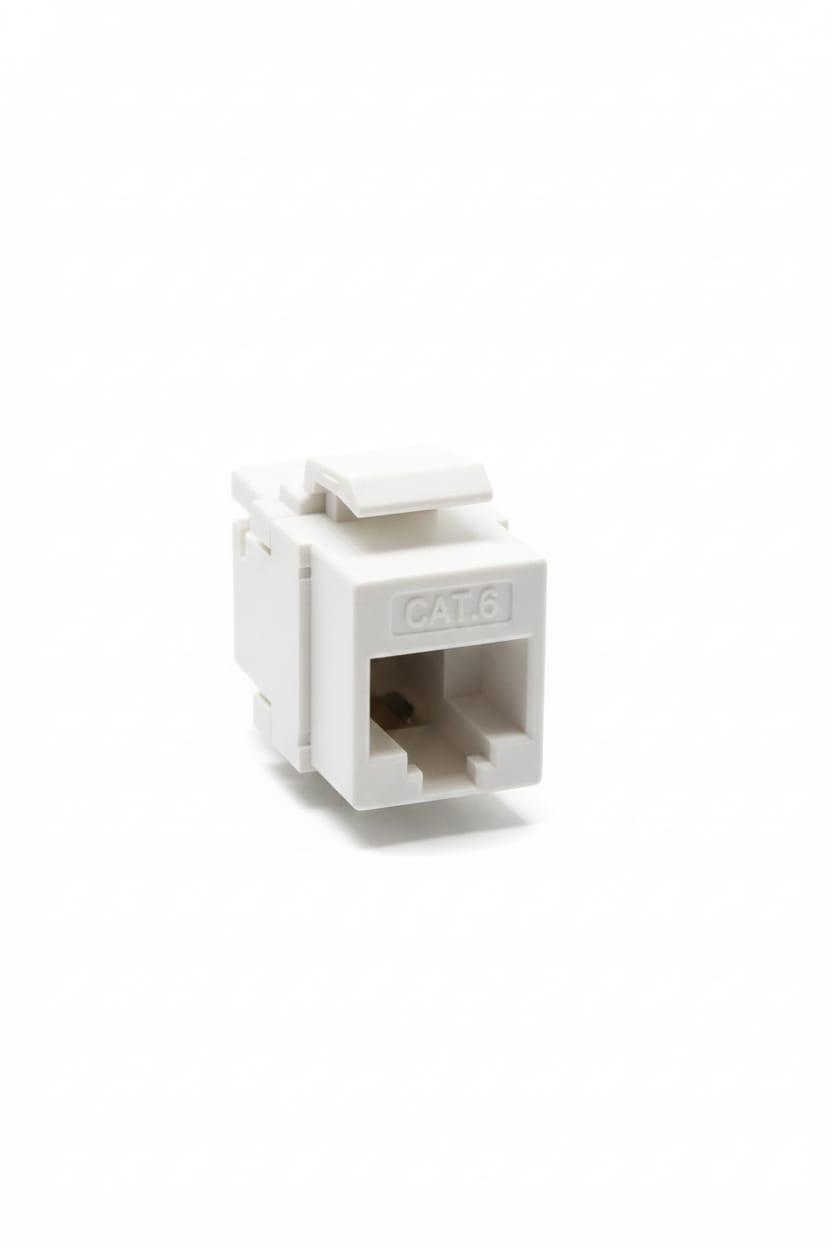

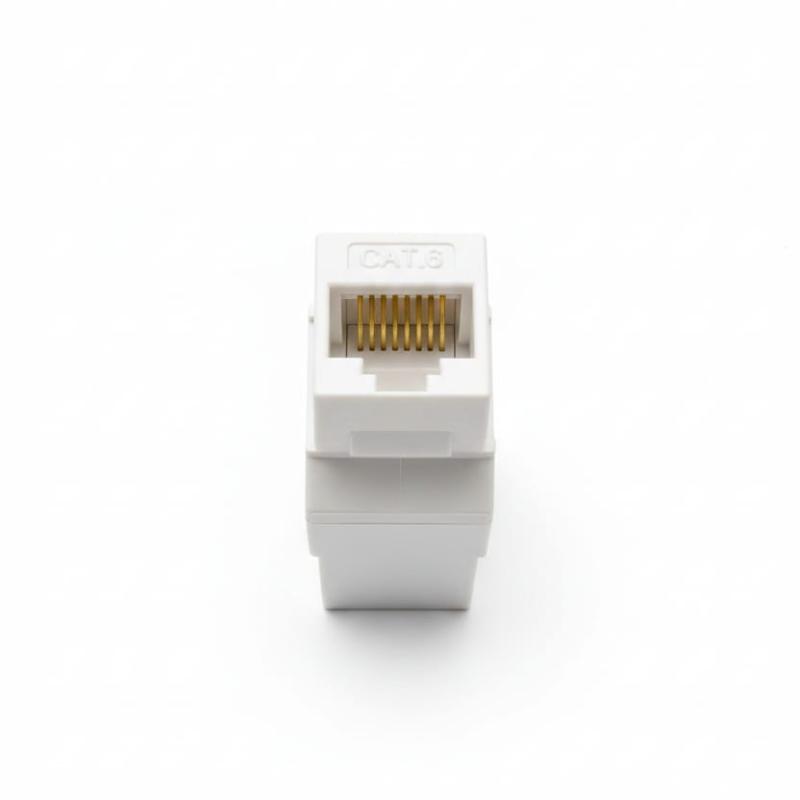

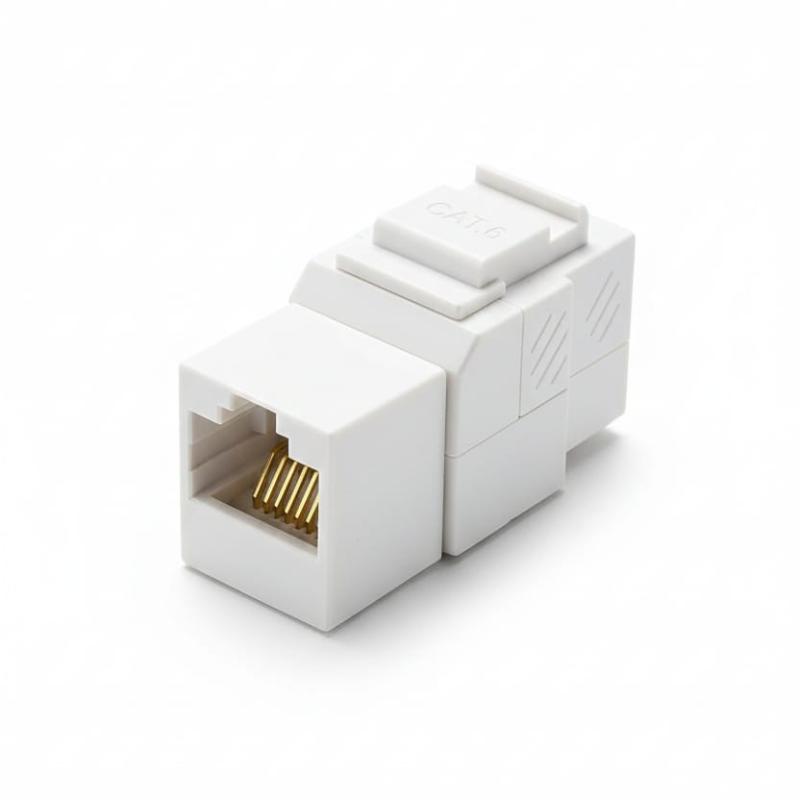

• Connector Type: RJ45 8P8C (Female to Female)
• Housing Material: Flame-retardant PC or ABS (UL94V-0 rated)
• Contact Material:  50μ gold plating
• Mating Cycles: ≥ 750 insertions
• Snap-In Design: Fits standard keystone openings securely

🔌 Electrical & Performance Specs

• Bandwidth: Up to 250 MHz
• Supported Speeds: 10BASE-T, 100BASE-TX, 1000BASE-T
• PoE Compatibility: Supports PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Impedance Matching: Maintains CAT6 signal integrity
• Signal Loss: Minimal, optimized for patch cable extension
• Shielding: Typically unshielded (UTP)

🌡️ Environmental Specifications

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity Tolerance: Up to 93% non-condensing

🧪 Compliance & Certifications

• Standards Met:
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • EN 50173
• Certifications: RoHS, CE, UL (varies by model)

🛠️ Installation & Use

• Tool-Free: No punch-down required—just plug both RJ45 cables in
• Use Cases:
  • Extending Ethernet patch cables
  • Modular wall plate installations
  • Temporary or flexible network setups
  • Ideal for office, home, and commercial environments
