⚙️ Mechanical Specifications

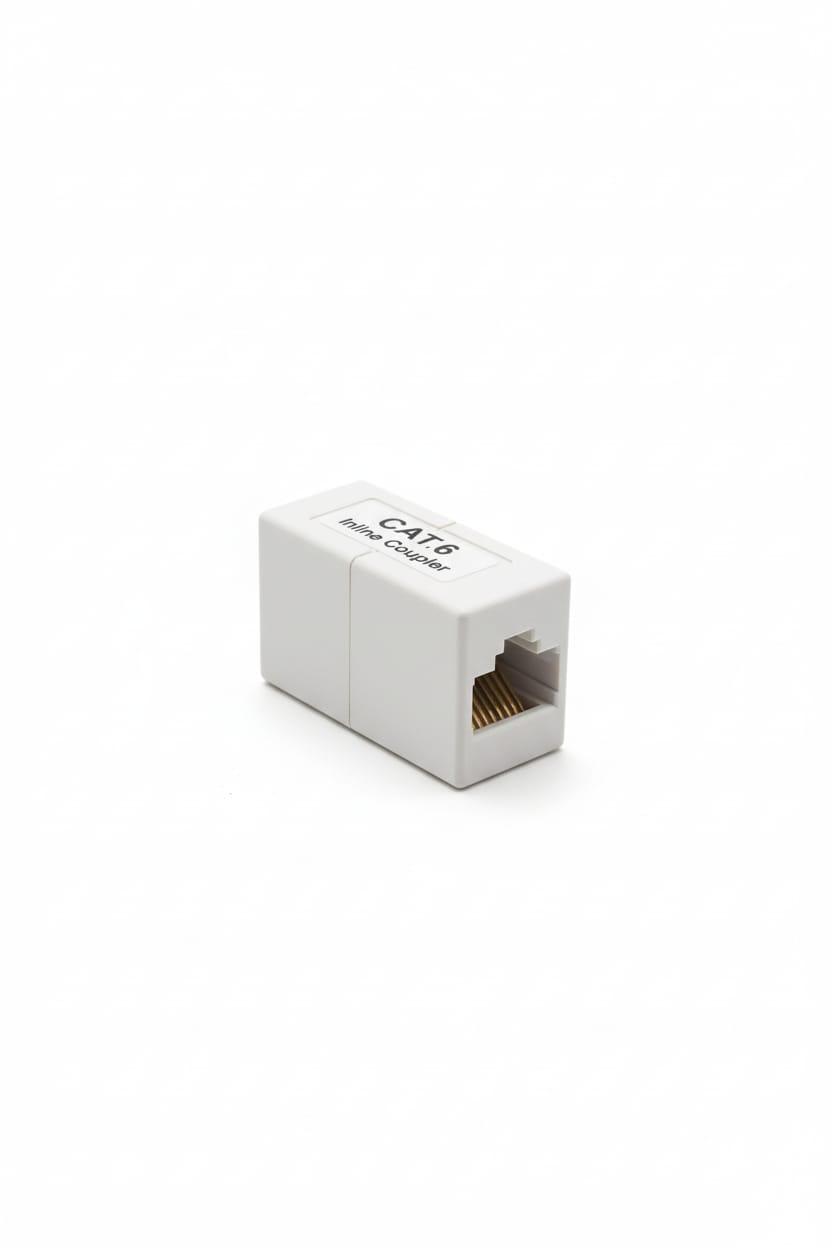

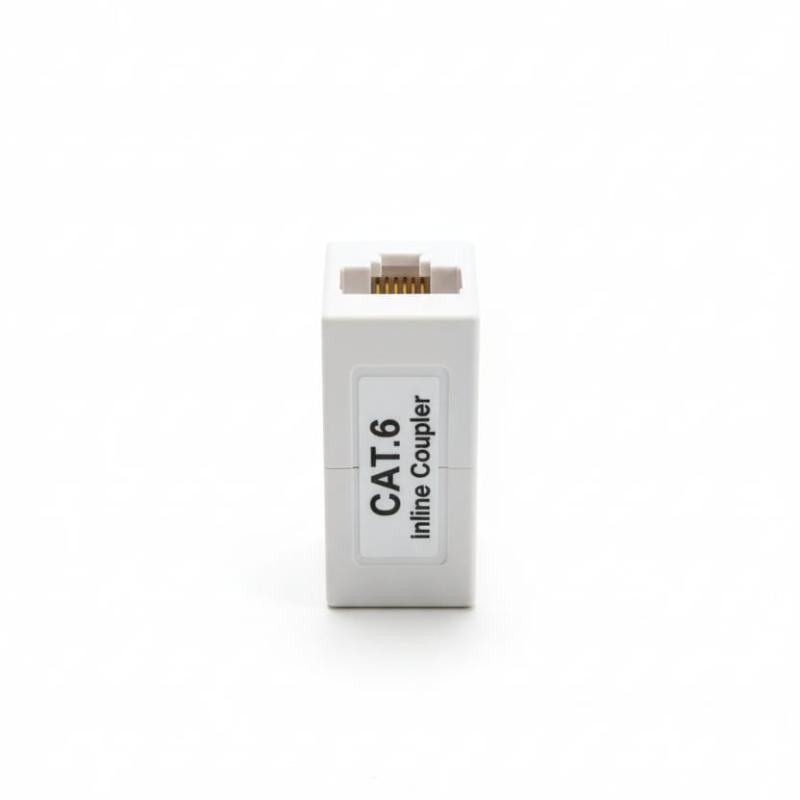

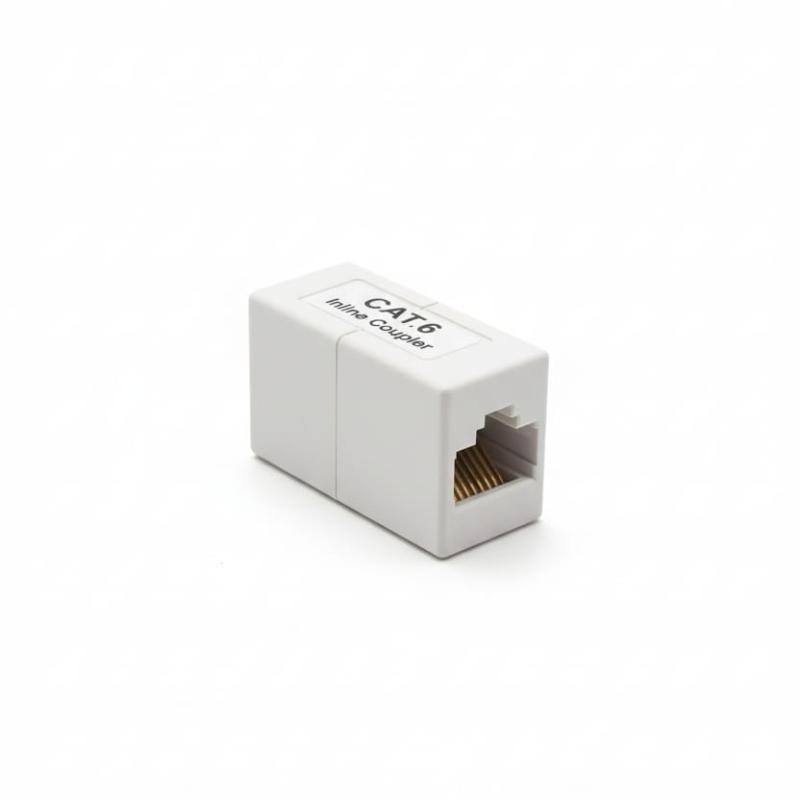

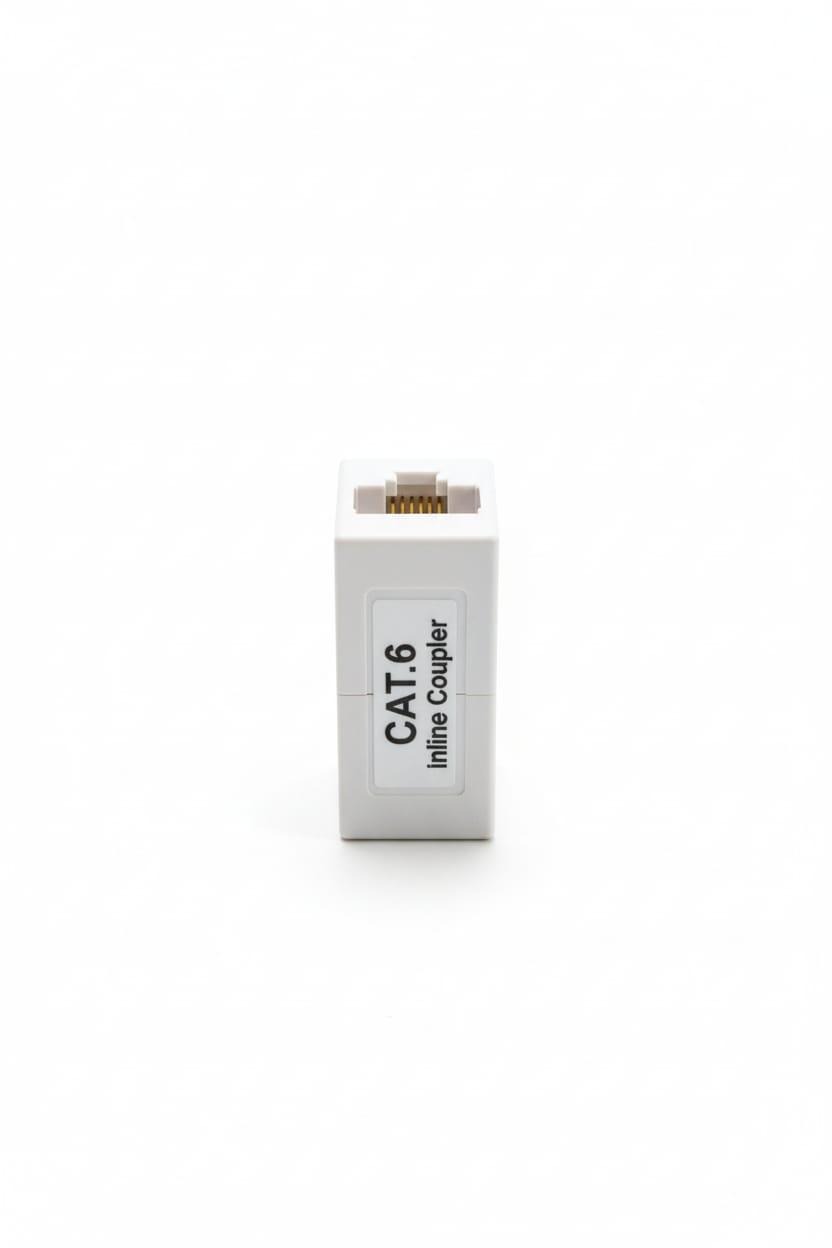

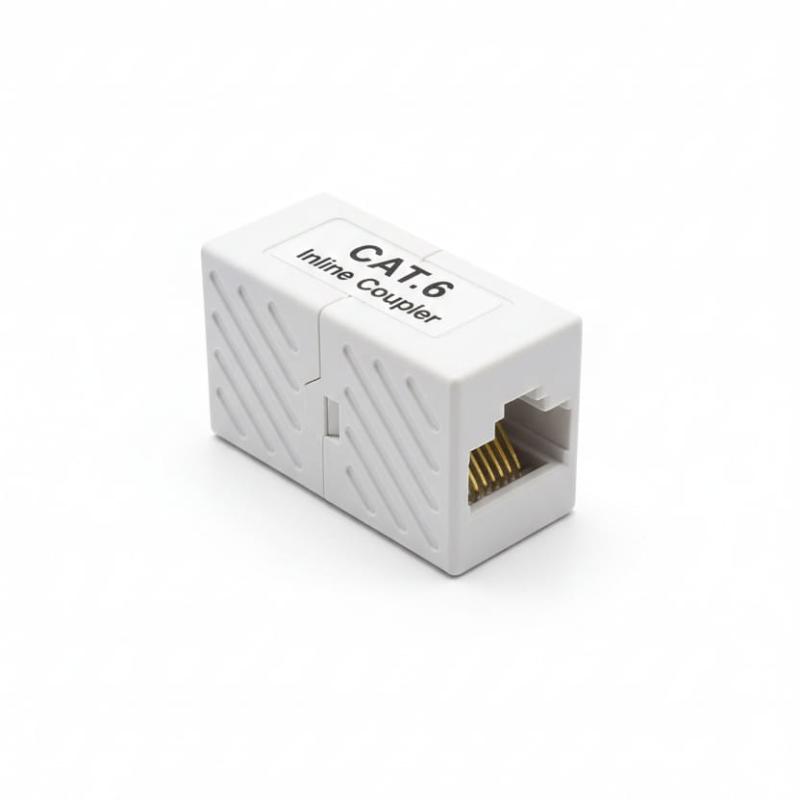

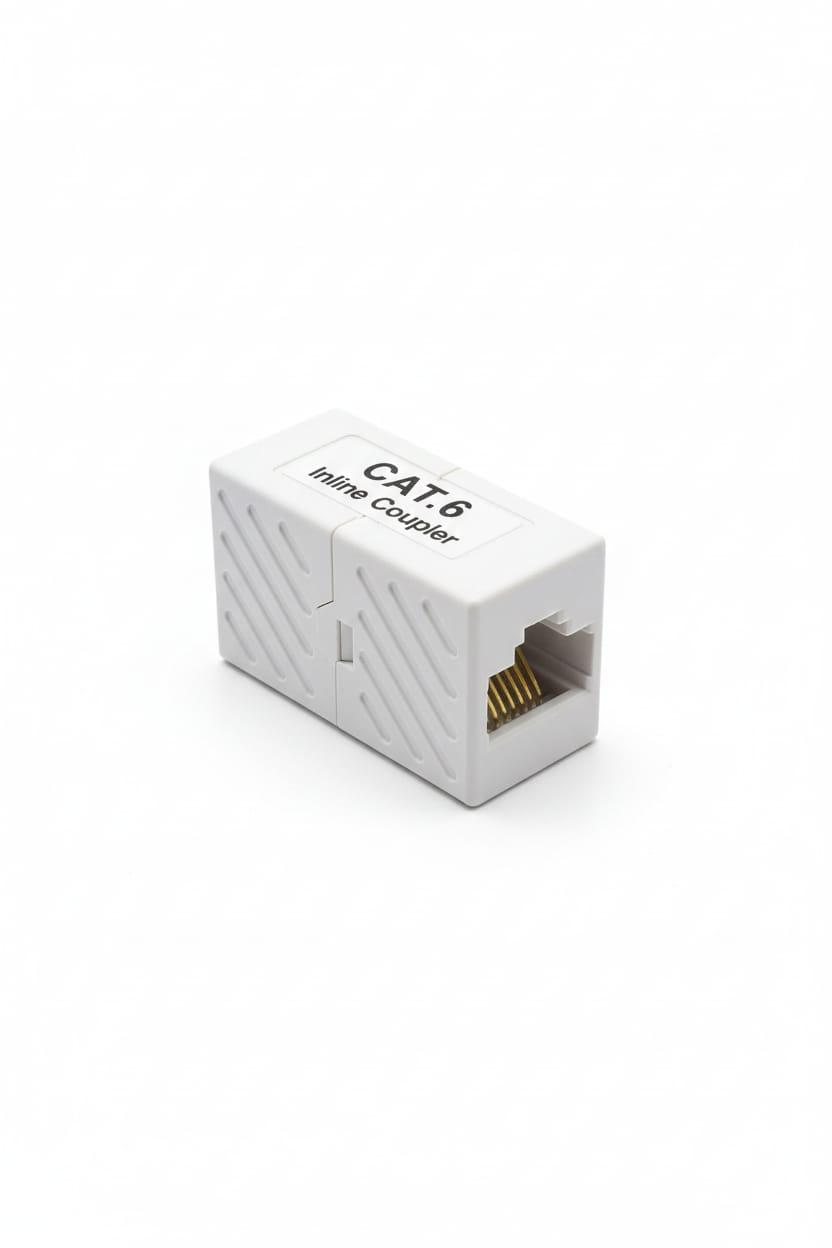

• Connector Type: RJ45 8P8C (Female to Female)
• Housing Material: Durable ABS or PC plastic (UL94V-0 flame retardant)

• Contact Material:  Gold plating



🔌 Electrical & Performance Specs

• Bandwidth: Up to 250 MHz
• Supported Speeds: 10BASE-T, 100BASE-TX, 1000BASE-T
• PoE Support: Compatible with PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Impedance Matching: Maintains signal integrity across connections
• Signal Loss: Minimal, thanks to internal PCB design
• Shielding: Available in UTP (unshielded) and STP (shielded) versions

🌡️ Environmental Specifications

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity Tolerance: Up to 93% non-condensing
• Durability: Rated for ≥ 750 mating cycles

🧪 Compliance & Certifications

• Standards Met:
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • EN 50173
• Certifications: RoHS, CE, UL (varies by model)

🛠️ Installation & Use

• Tool-Free: No tools required—just plug both RJ45 cables in
• Use Cases:
  • Extending short Ethernet runs
  • Temporary patching
  • Relocating devices without re-cabling
  • Connecting CAT5E or CAT6 cables (backward compatible)
