⚙️ Technical Specifications

🧩 Mechanical

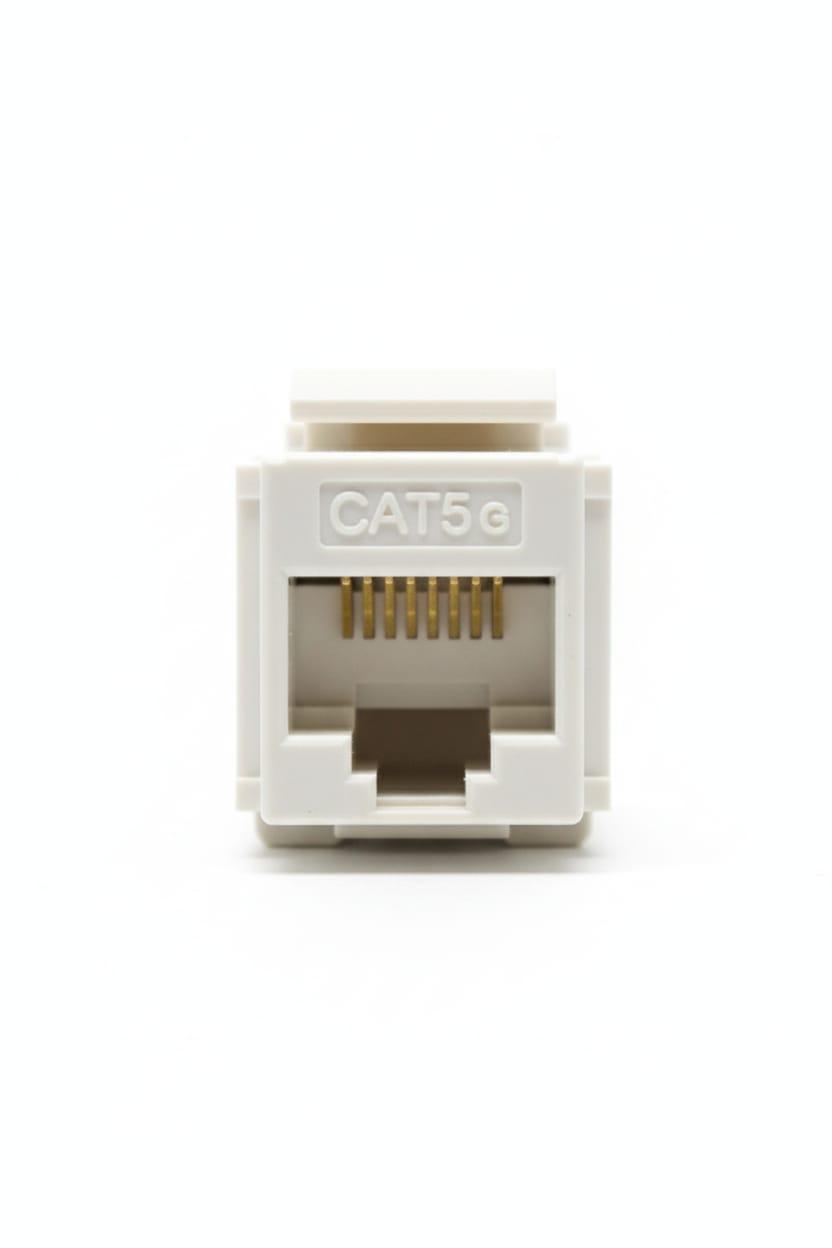

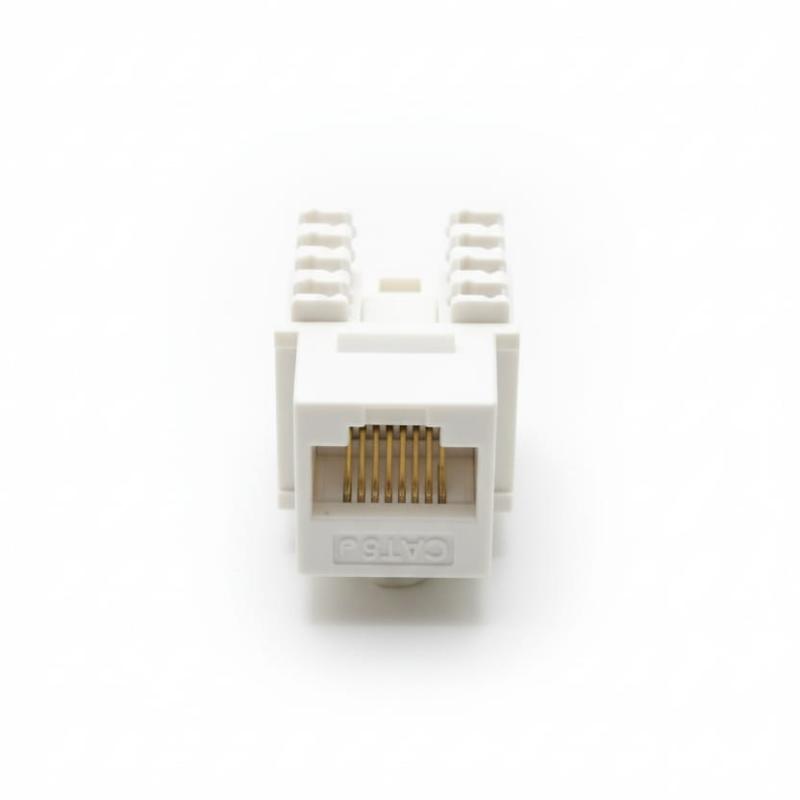

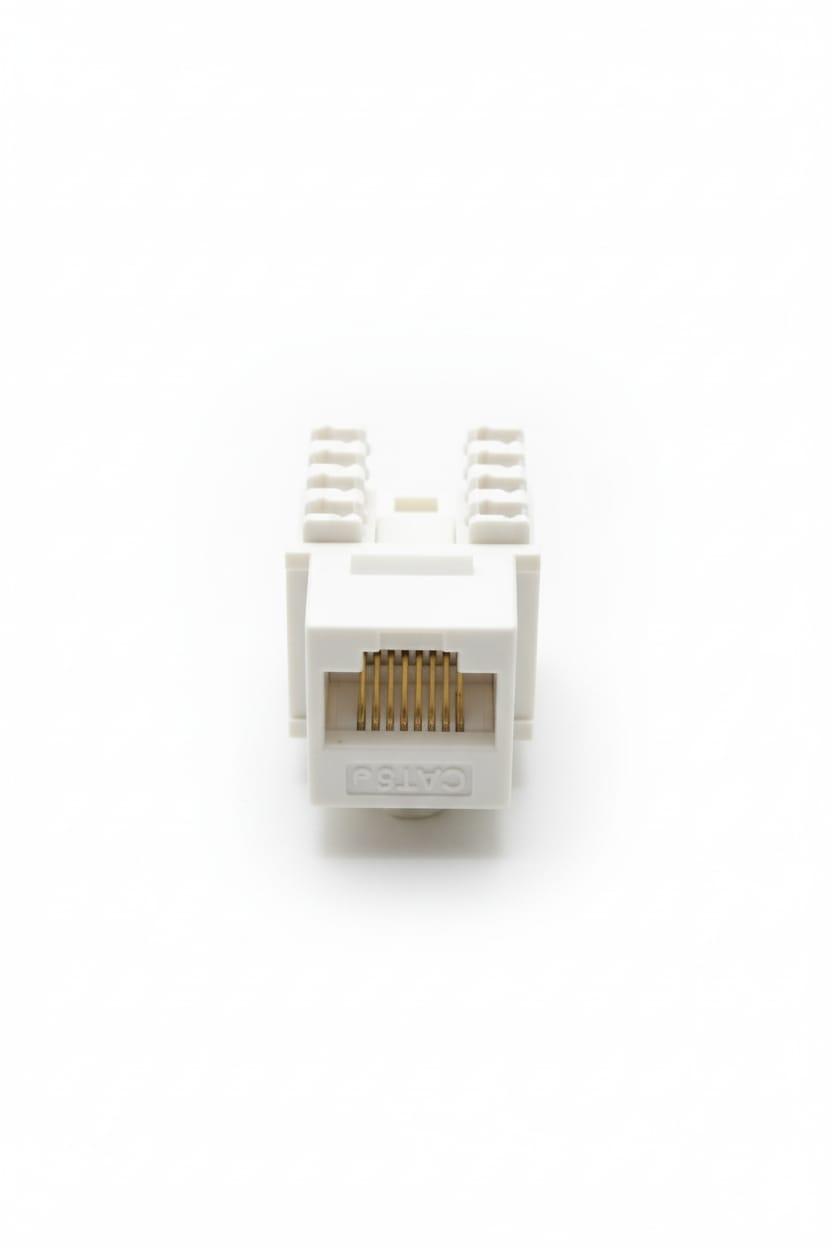

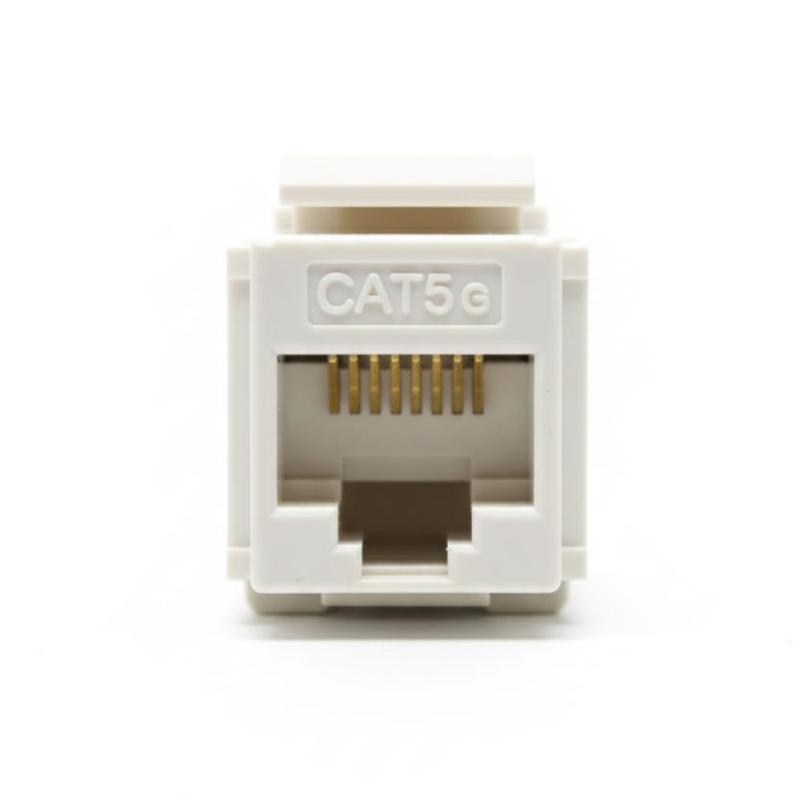

• Connector Type: RJ45 8P8C
• Termination Style: 110-type IDC punch-down
• Wire Gauge Compatibility: 22–26 AWG solid and stranded
• Insertion Cycles: ≥ 750 mating cycles
• IDC Reterminations: ≥ 20 times
• Housing Material: PC (Polycarbonate), UL94V-0 flame retardant
• Contact Material:
  • IDC: Phosphor bronze with tin plating
  • RJ45 pins: Phosphor bronze with 50 micro-inch gold plating on contact area

🔌 Electrical

• Bandwidth: Up to 100 MHz
• Supported Standards:
  • IEEE 802.3: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Token Ring, ISDN, ATM
• Insulation Resistance: ≥ 500 MΩ
• Contact Resistance: ≤ 20 mΩ
• Current Rating: 1.5 A at 25°C

🌡️ Environmental

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C

🧪 Compliance & Certifications

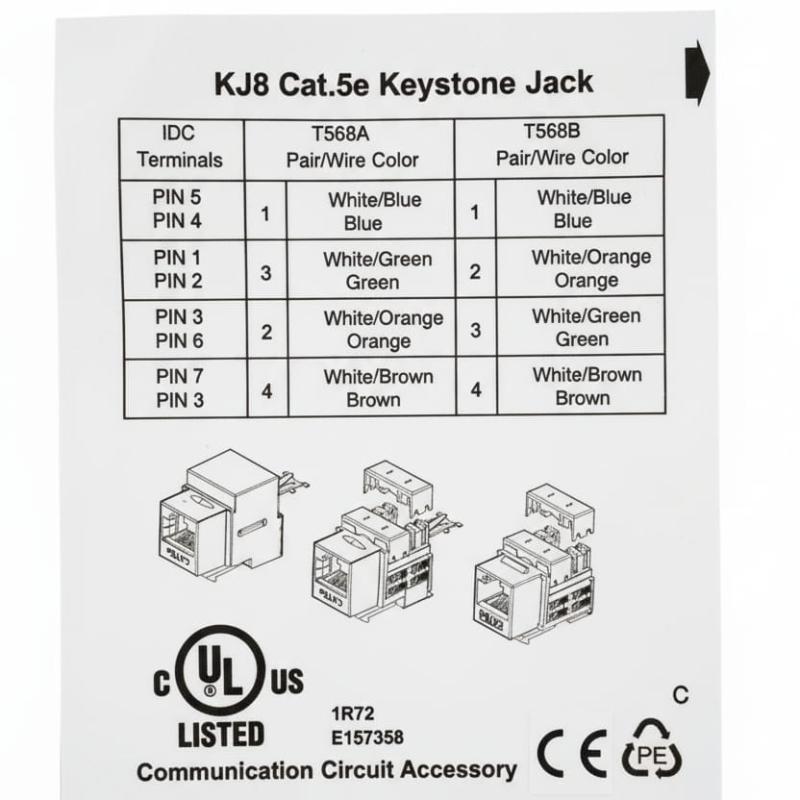

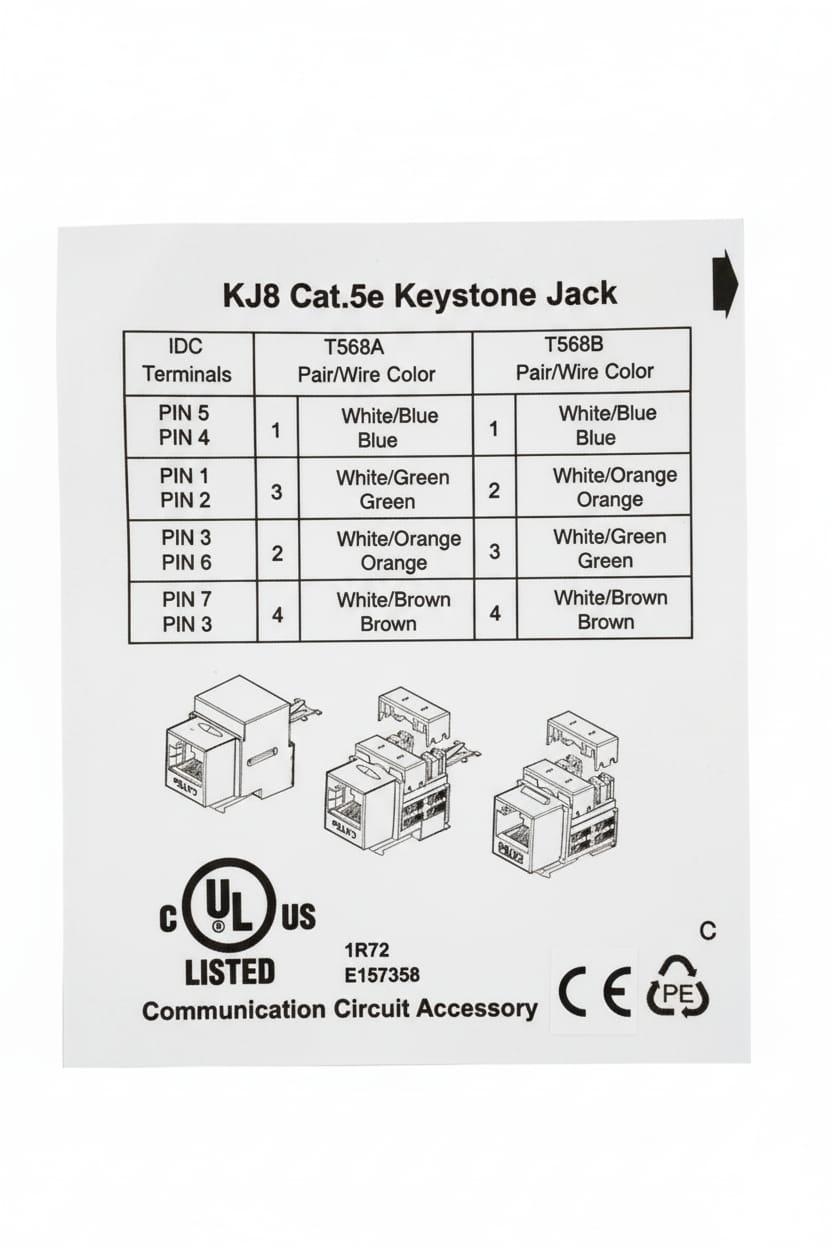

• Wiring Schemes: T568A and T568B (color-coded labels)
• Standards Met:
  • ANSI/TIA/EIA-568-C.2
  • ISO/IEC 11801
  • EN 50173
  • IEC 60603-7-4
• Certifications: UL Listed, ETL Verified, RoHS Compliant

🛠️ Installation & Use

• Mounting: Fits standard keystone wall plates, patch panels, surface boxes
• Termination Tools: Compatible with both 110 and Krone punch-down tools
• Application: Horizontal cabling in structured networks, suitable for home, office, and data center environments
