⚙️ Mechanical Specifications

• Connector Type: RJ45 8P8C
• Wire Gauge Compatibility: 22–26 AWG solid and stranded

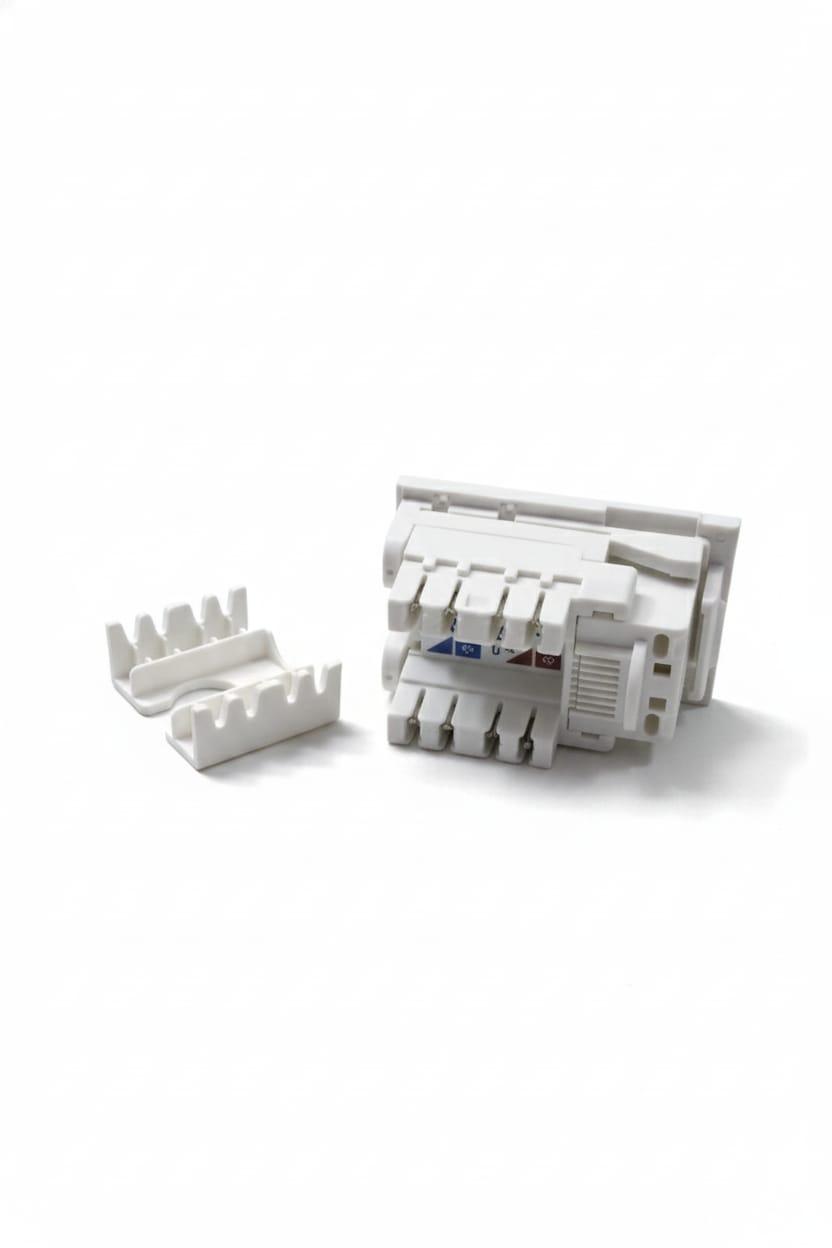

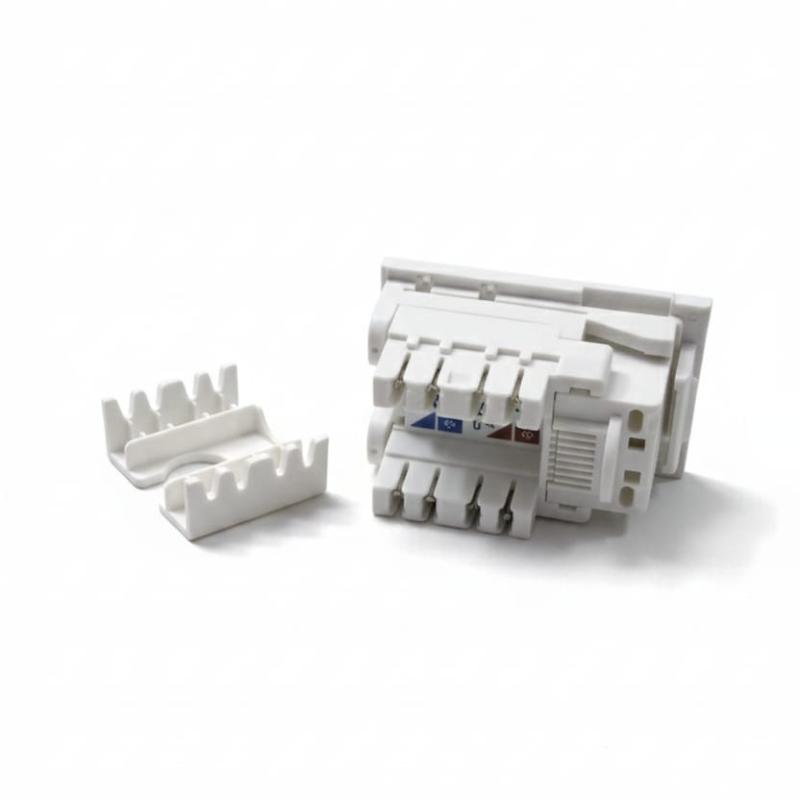

• Termination Style: IDC punch-down block
• Housing Material: Polycarbonate (PC), UL94V-2 flame retardant
• Contact Material:
  • RJ45 pins: Phosphor bronze with 50μ gold plating
  • IDC terminals: Phosphor bronze with tin plating
• Insertion Cycles: ≥ 750 mating cycles
• IDC Reterminations: ≥ 200 times

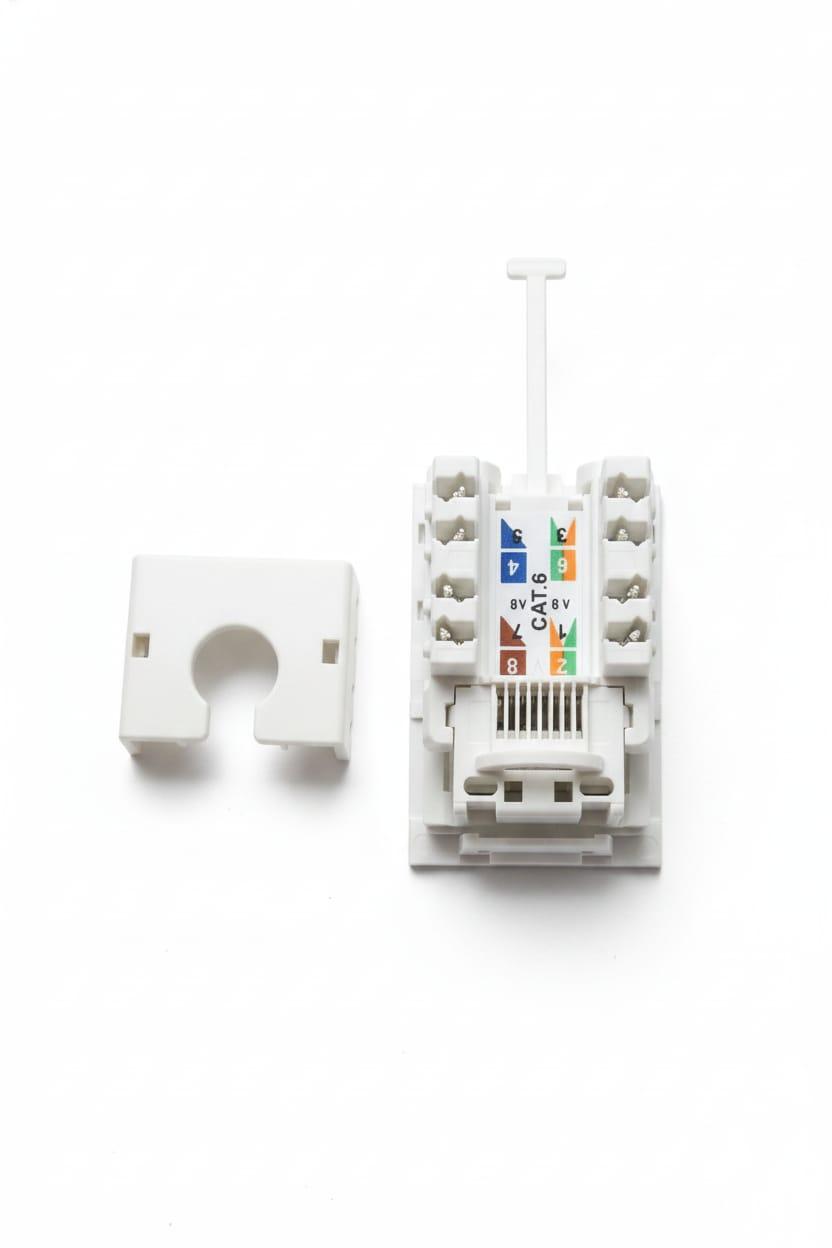

• Color Coding: Universal labels for T568A and T568B wiring schemes

🔌 Electrical Specifications

• Bandwidth: Up to 250 MHz
• Supported Protocols:
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Insulation Resistance: ≥ 500 MΩ
• Contact Resistance: ≤ 20 mΩ
• Current Rating: 1.5 A at 25°C

🌡️ Environmental Specifications

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity Tolerance: Up to 93% non-condensing

🧪 Compliance & Certifications

• Standards Met:
  • ANSI/TIA/EIA-568-C.2
  • ISO/IEC 11801
  • EN 50173
• Certifications: UL Listed, RoHS Compliant

🛠️ Installation & Compatibility

• Mounting: Fits standard floor box modules, keystone wall plates, and patch panels
• Tool Compatibility: 110 and Krone punch-down tools
• Cable Compatibility: UTP CAT6 cables (solid or stranded)
