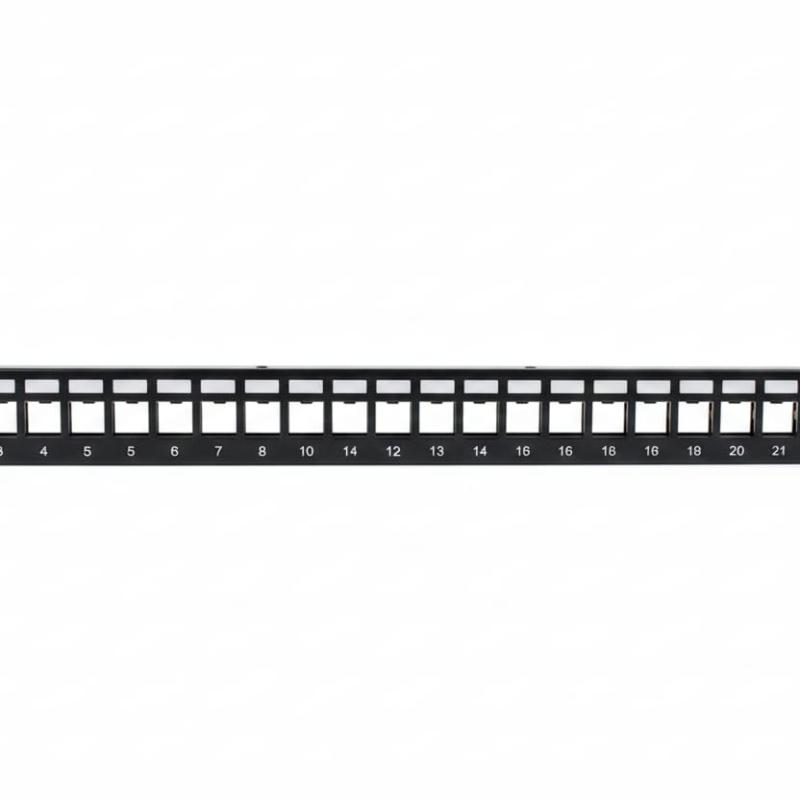

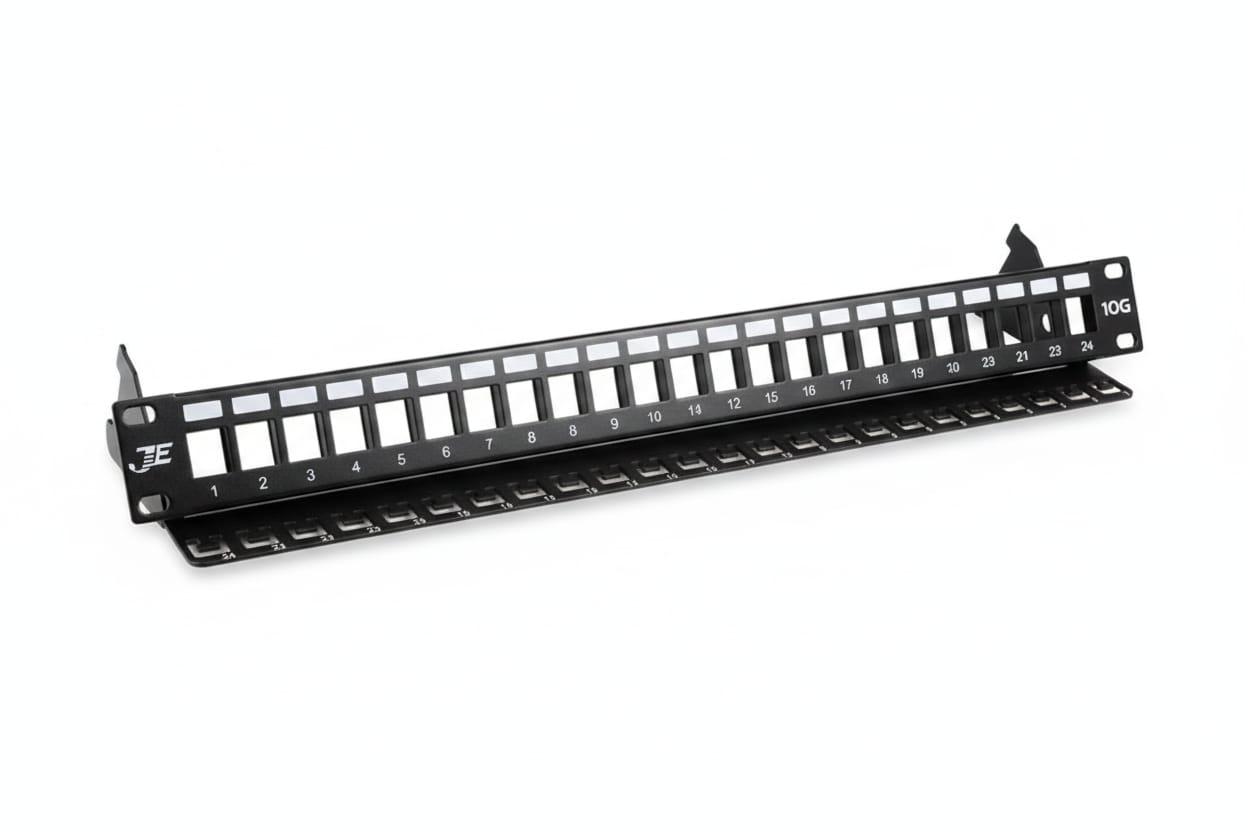

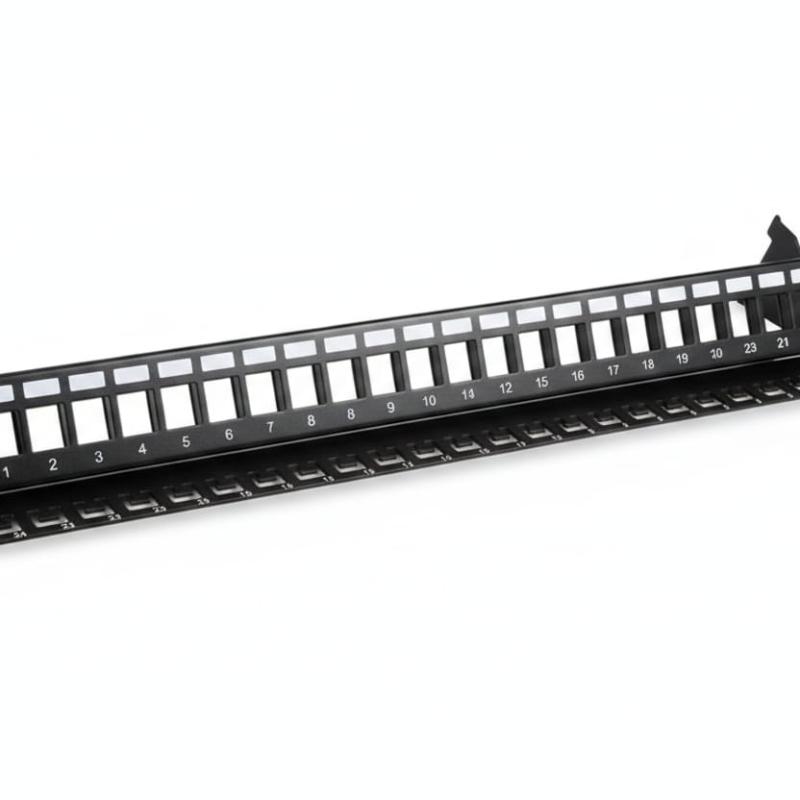

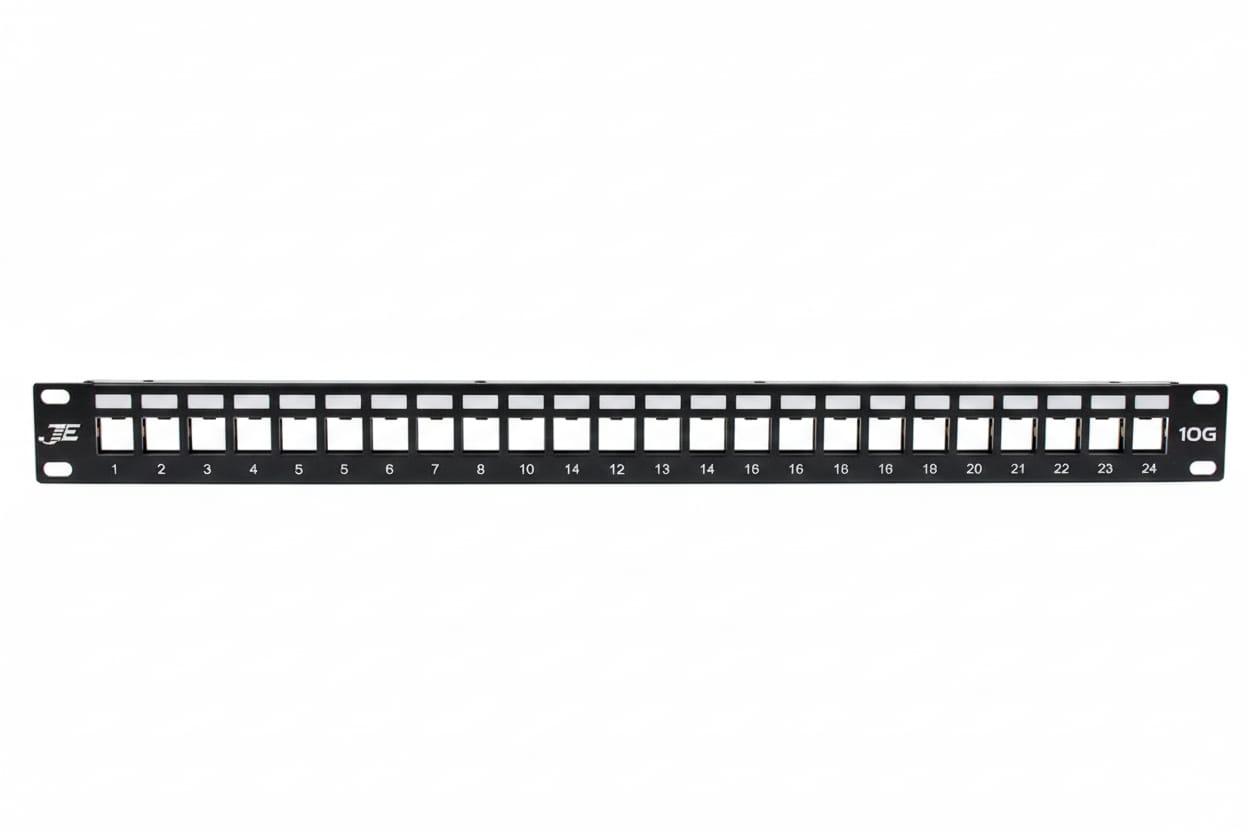

Name: 24-port STP 10G unloaded patch panel JE
Brand: JE
SKU: SF-2443-KWS5
Price: 70 AED
Availability: InStock

Email to a Friend

24-port STP 10G unloaded patch panel JE

Brands: JE

AED 70.00 AED 85.00 -17% Off

Type: Unloaded patch panel (no pre-installed jacks)
Ports: 24 shielded keystone slots, numbered 1–24
Category Support: Cat6A / 10GBASE-T, backward compatible with Cat6 and Cat5e STP jacks
Shielding: Full metal frame with integrated grounding tabs for EMI/RFI protection
Orientation: Horizontal, 1U rack-mountable

Feature	Specification
Panel Material	SPCC steel, 1.5mm thick, black powder-coated
Jack Compatibility	JE shielded keystone jacks (snap-in), tool-less or punch-down
Port Identification	Numbered 1–24, with writable label strip above each port
Grounding	Dual grounding lugs for rack bonding
Cable Gauge Support	22–26 AWG solid or stranded STP cables
Flammability Rating	UL94V-0 flame-retardant thermoplastic
Mounting	Standard 19-inch EIA rack, 1U height
Accessories	Includes cage nuts, screws, rear cable manager bar, and cable ties

Bandwidth: Up to 500 MHz (Cat6A)
Applications:
- 10GBASE-T Ethernet
- PoE/PoE+/PoE++
- Voice/Data/Video
Certifications:
- UL Listed
- TIA/EIA-568-C.2
- ISO/IEC 11801
- RoHS Compliant

Modular Design: Allows selective jack population — ideal for phased rollouts or mixed media
Tool Compatibility: Accepts both tool-less shielded jacks and 110 punch-down shielded jacks
Cable Management: Rear bar supports strain relief and organized routing
Grounding: Ensure proper bonding to rack earth for shield continuity
