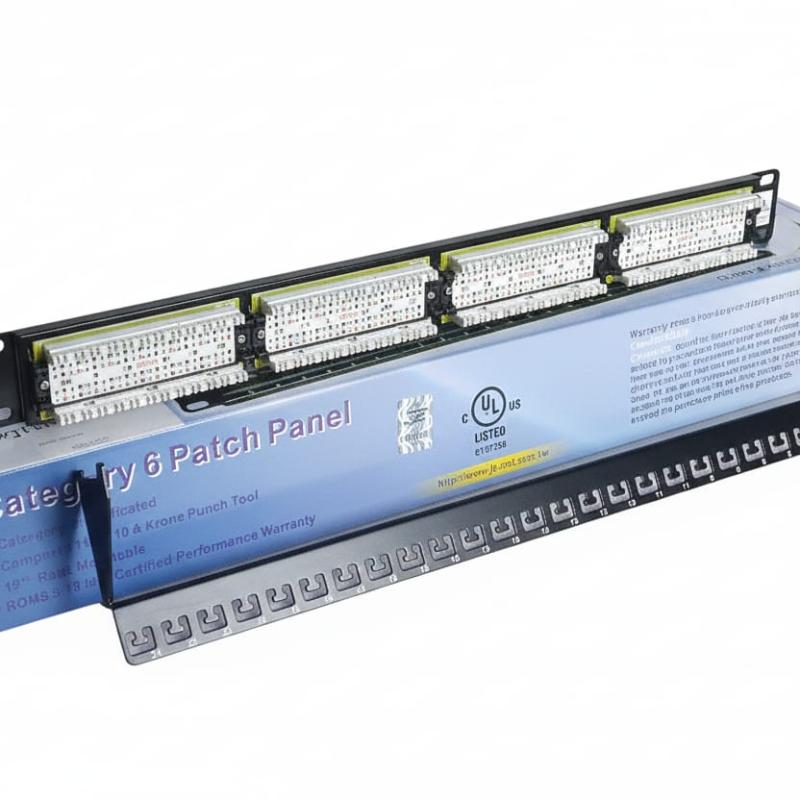

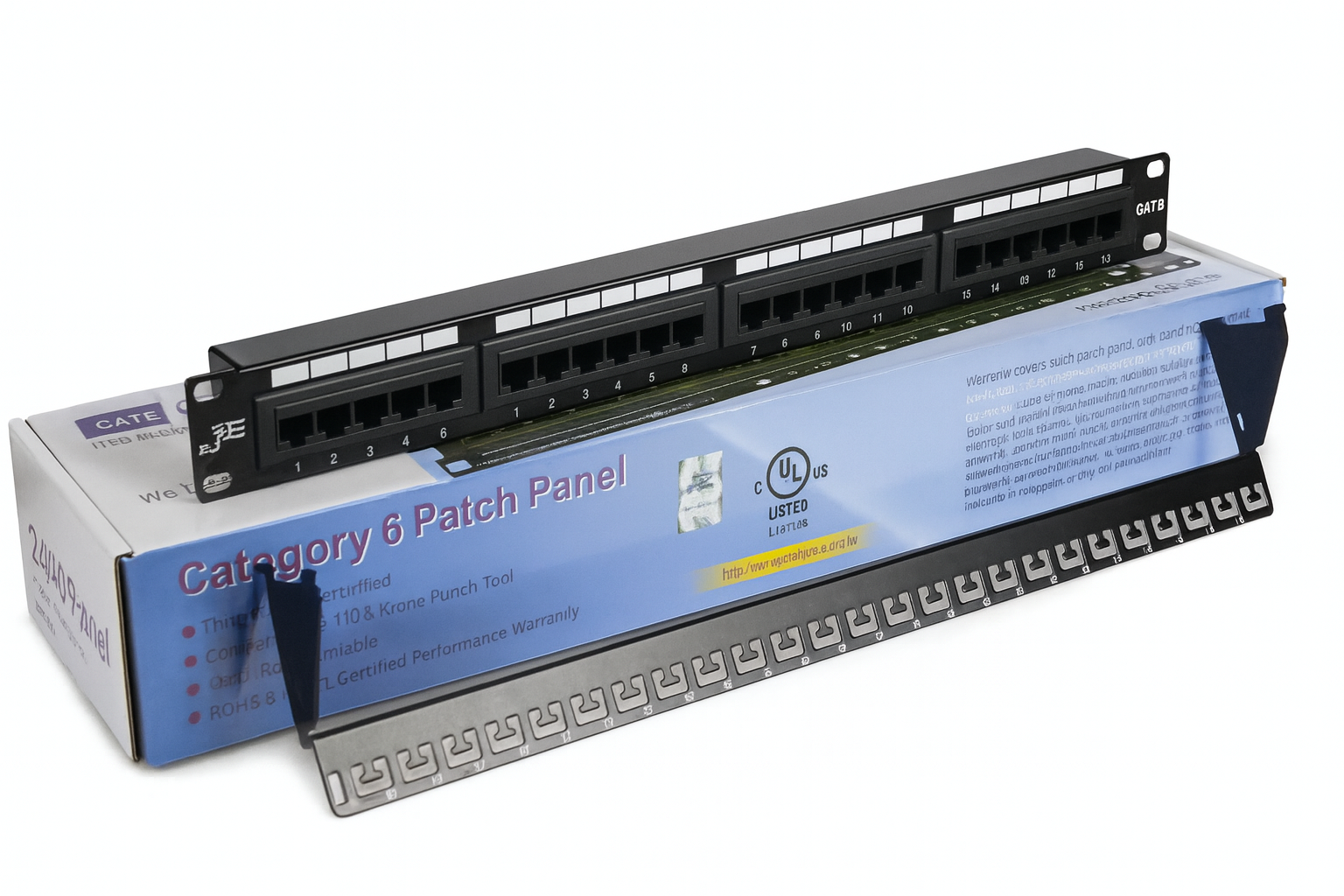

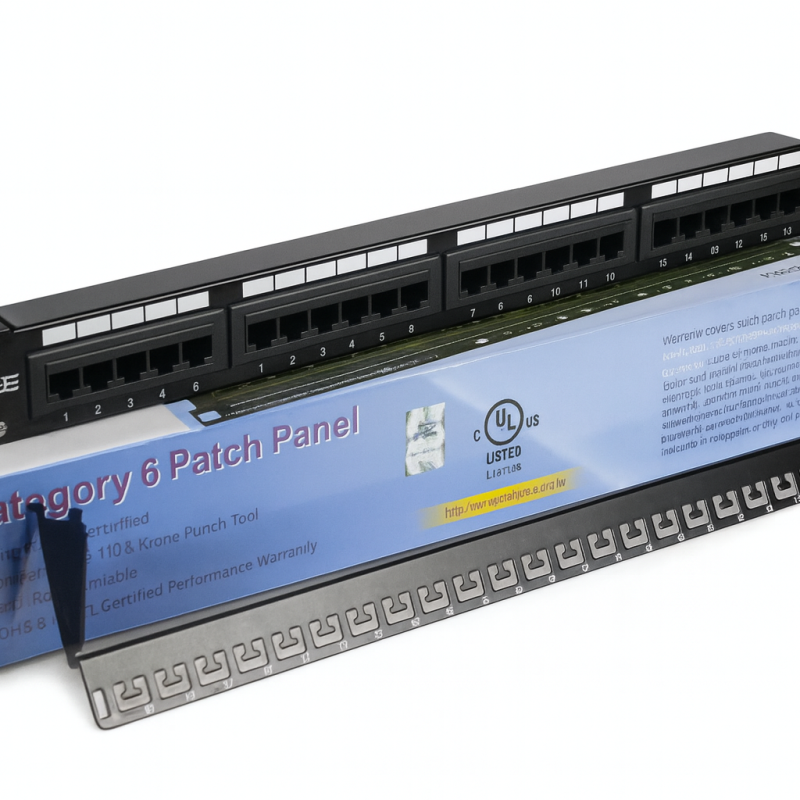

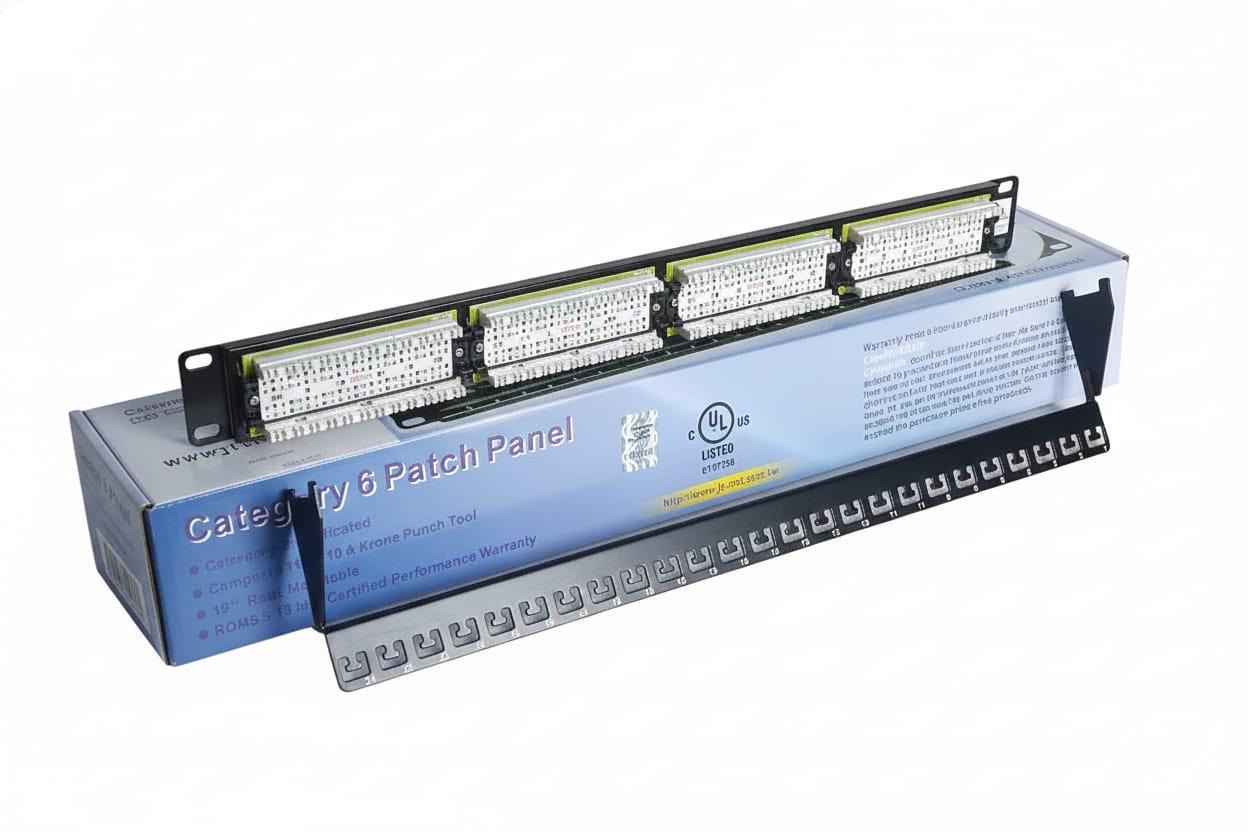

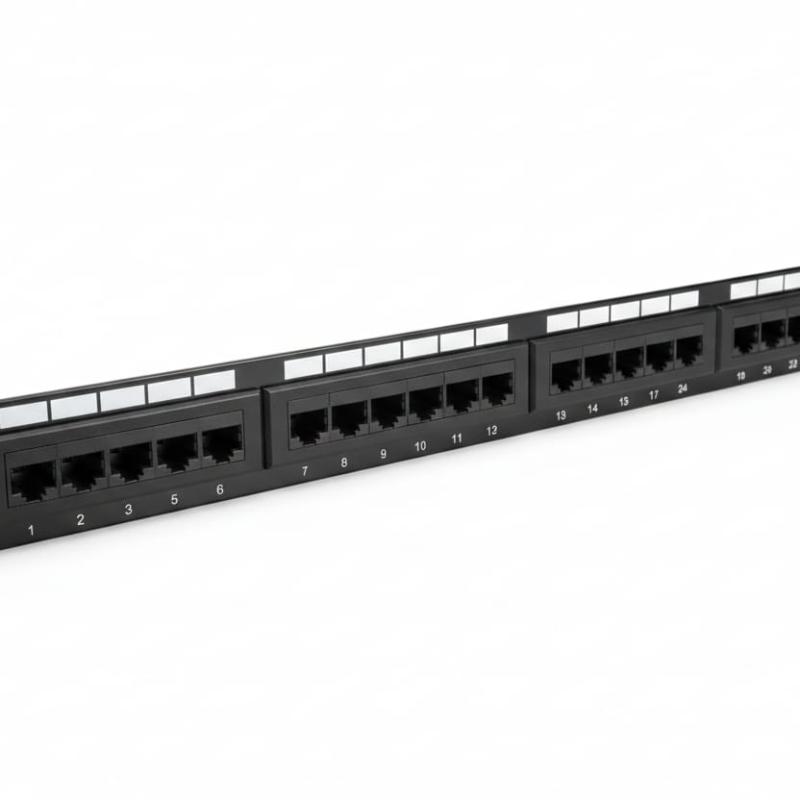

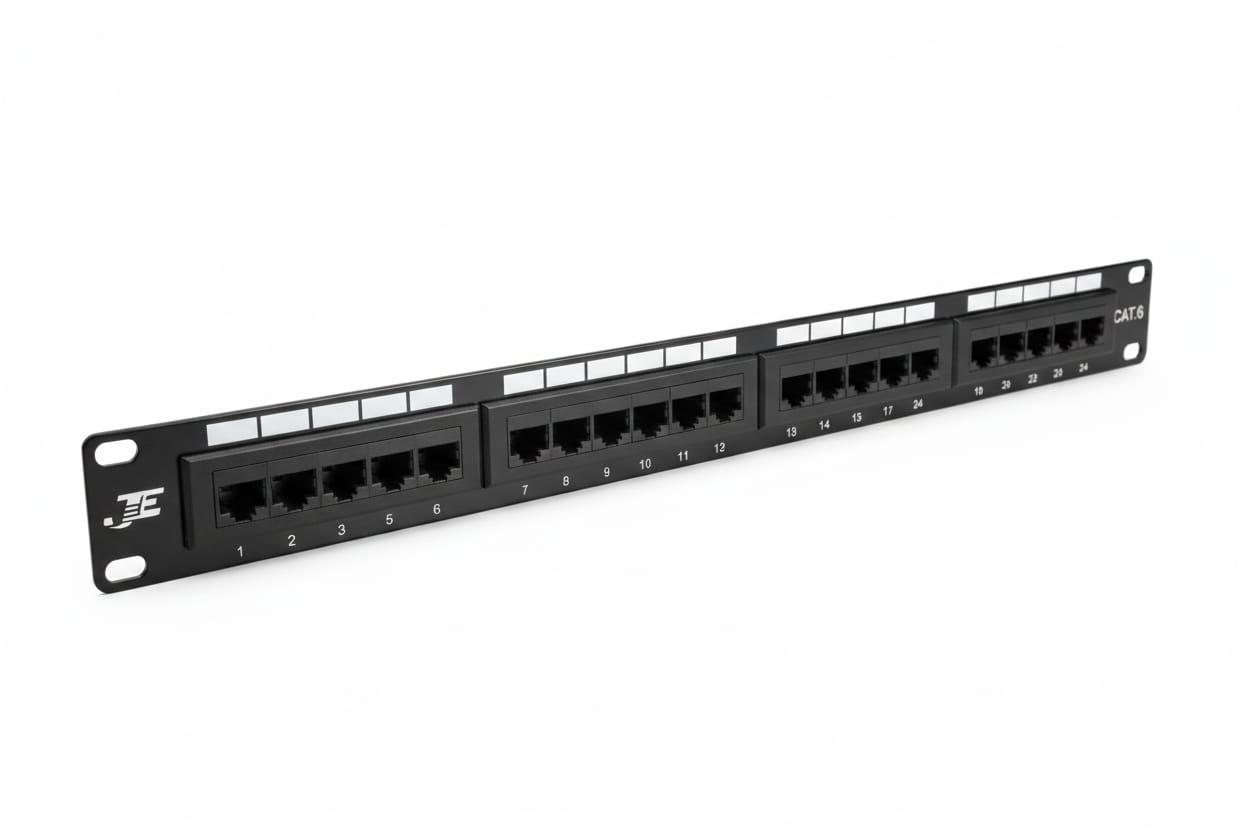

Kuwes 24-Port Cat6A 10G Patch Panel
AED 350.00
AED 375.00
⚙️ Mechanical & Electrical Details
| Feature | Specification |
|---|---|
| Rack Size | 19-inch standard EIA rack, 1U height |
| Panel Material | SPCC cold-rolled steel, black powder-coated finish |
| Jack Housing | High-impact, flame-retardant thermoplastic (UL94V-0) |
| IDC Contacts | Phosphor bronze with nickel/tin plating |
| Cable Gauge Support | 22–26 AWG solid or stranded UTP |
| Dielectric Strength | 1000V RMS @ 60Hz for 1 minute |
| Insulation Resistance | ≥500 MΩ |
| Current Rating | 1.5A max |
🛠️ Installation & Features
- Mounting: Includes L-brackets and cage nuts/screws for rack installation
- Labeling: Writable port labels with transparent ID strip
- Color Coding: Rear punch-down blocks are color-coded for 568A/B wiring
- Cable Management: Optional rear bar with J-hooks or tie points
- Tool Compatibility: Works with 110 and Krone punch-down tools
📐 Performance & Compliance
- Bandwidth: Up to 250 MHz
- Applications: Gigabit Ethernet, PoE/PoE+, Voice/Data
Certifications:
- TIA/EIA-568-B
- UL Listed
- ETL Verified
🔧 Use Case Scenarios
- Ideal for enterprise networks, data centers, and telecom closets
- Supports modular cabling with JE keystone jacks and faceplates
- Compatible with structured cabling systems using JE or equivalent components
