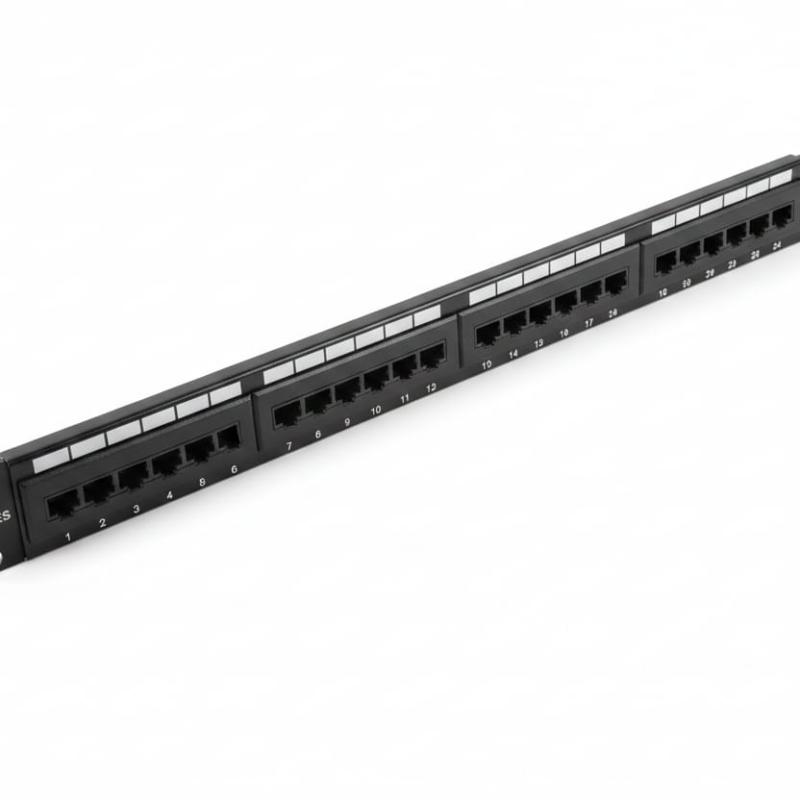

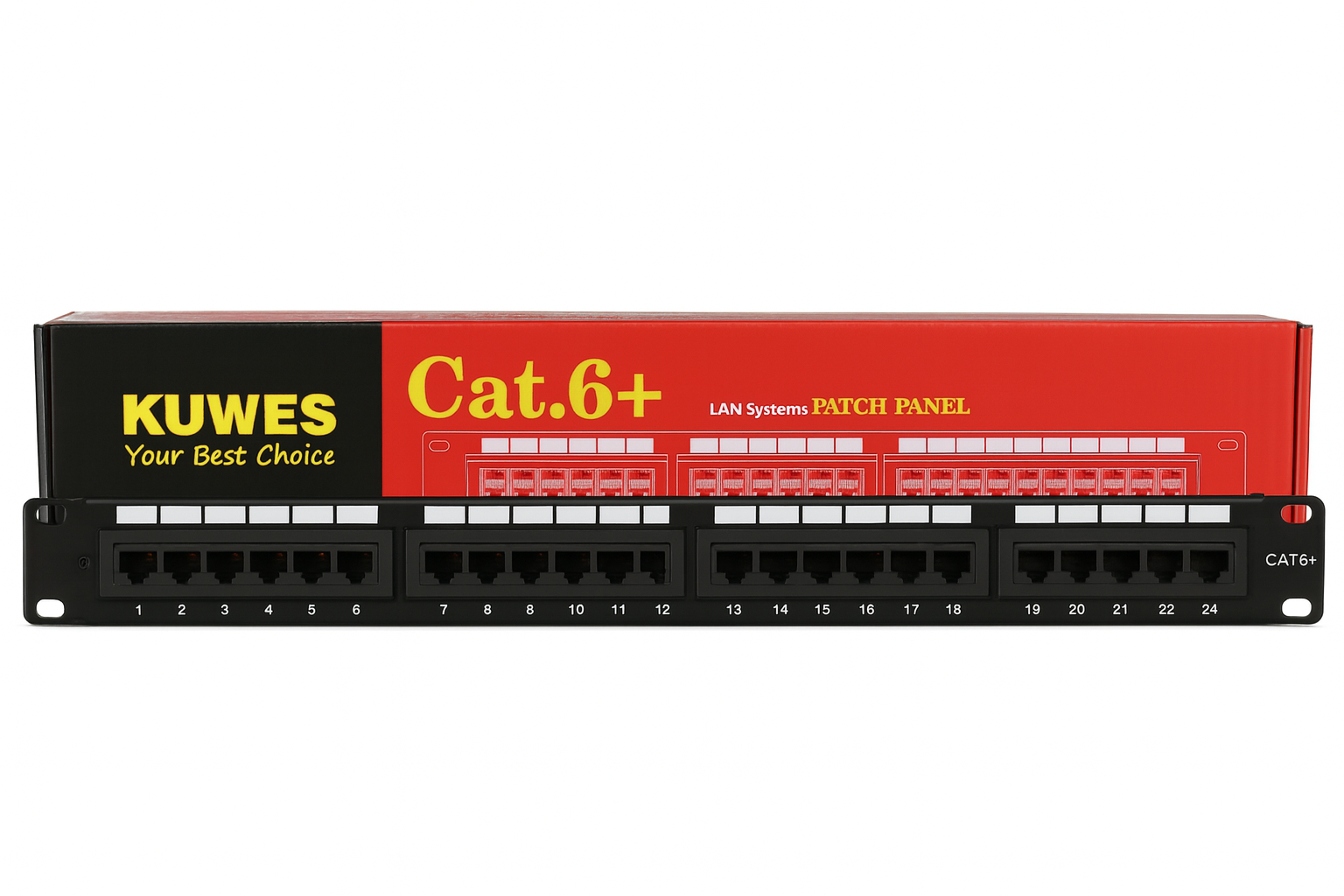

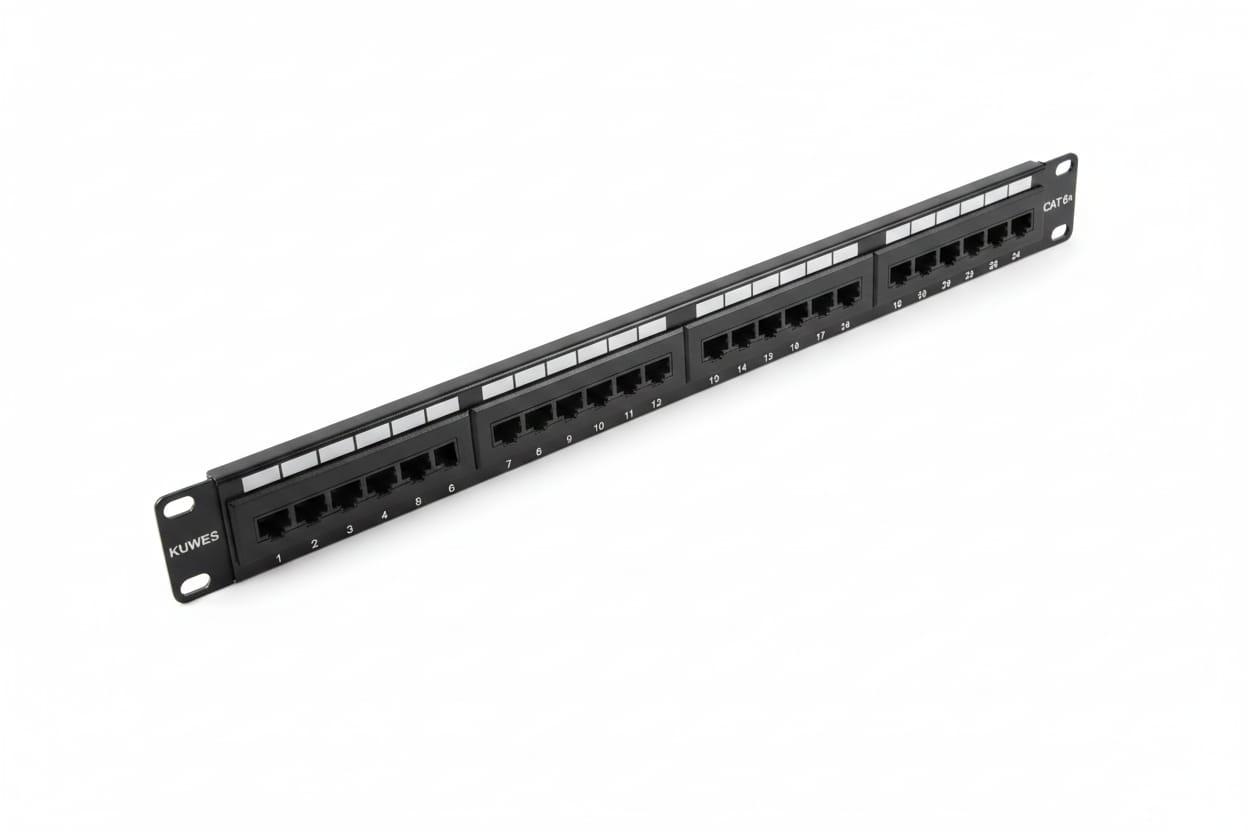

Kuwes 24-Port Cat6A 10G Patch Panel
AED 350.00
AED 375.00
🧩 Core Specifications
| Feature | Details |
|---|---|
| Port Count | 24 RJ45 ports |
| Category | Cat.6+ (supports up to 1 Gbps Ethernet) |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Termination Type | 110 IDC punch-down blocks (compatible with 110 & Krone tools) |
| Wiring Standards | TIA/EIA-568A and 568B compliant |
| Bandwidth Support | Up to 250 MHz |
| Gold Plating | 50U gold-plated contacts for enhanced conductivity and corrosion resistance |
| Panel Type | Loaded (pre-installed jacks) |
🛠️ Mechanical & Electrical Details
- Material: SPCC steel frame with black powder coating
- Jack Housing: Flame-retardant thermoplastic (UL94V-0)
- IDC Contacts: Phosphor bronze with nickel/tin plating
- Cable Gauge Support: 22–26 AWG solid or stranded
- Dielectric Strength: 1000V RMS @ 60Hz for 1 minute
- Insulation Resistance: ≥500 MΩ
- Current Rating: 1.5A max
📏 Dimensions & Mounting
- Rack Compatibility: Standard 19-inch EIA rack
- Height: 1U
- Mounting: Includes L-brackets with screw holes for rack installation
- Labeling: Writable ID strip above each port for cable identification
📐 Performance & Compliance
Certifications:
- UL Listed (E322246)
- TIA/EIA-568-B
- Applications:
- Gigabit Ethernet
- PoE/PoE+
- Voice/Data transmission
🔧 Installation Notes
- Tool Compatibility: Works with standard 110 punch-down and Krone tools

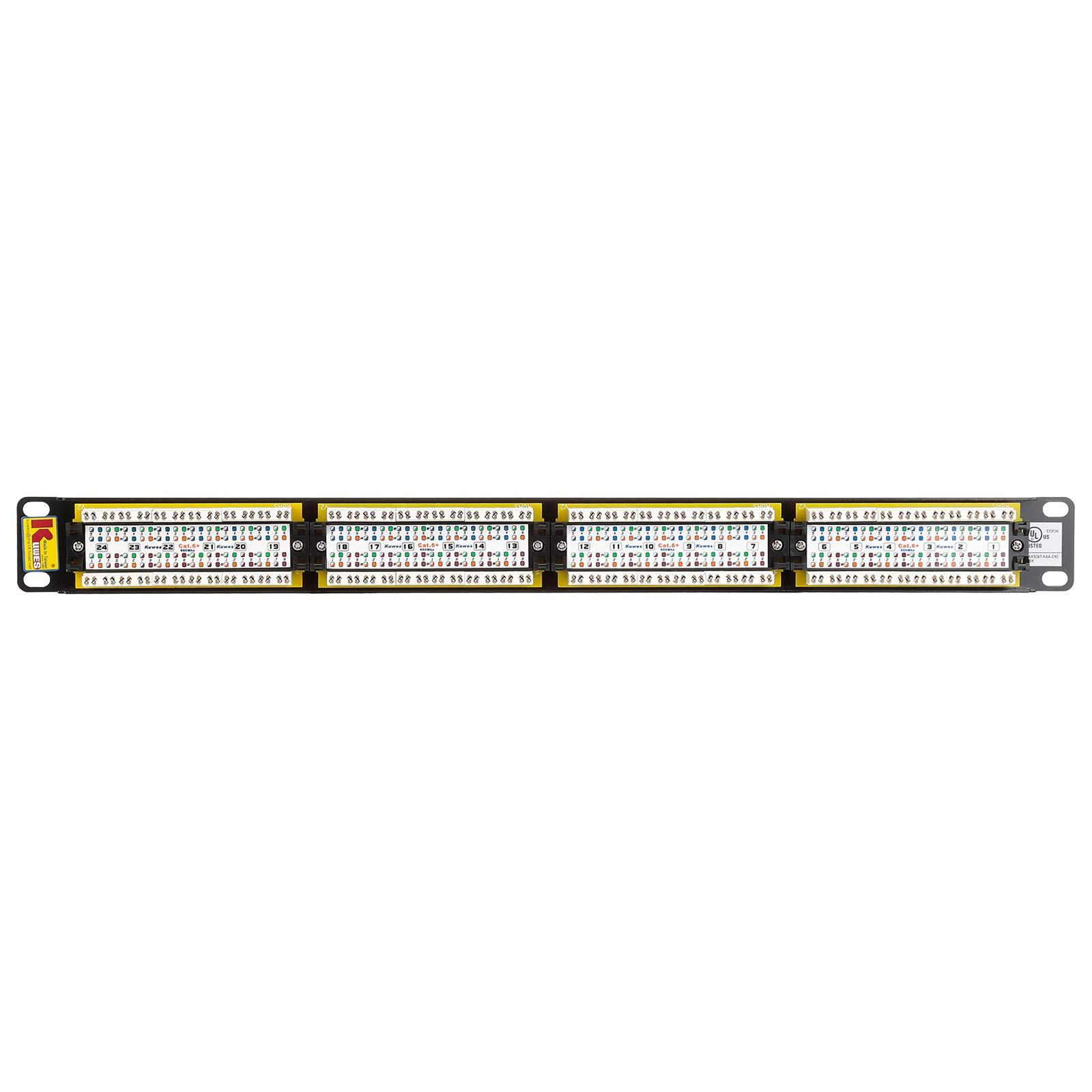

- Color Coding: Rear IDC blocks are color-coded for easy wiring
- Cable Management: Optional rear bar or integrated tie points
- Field Labeling: Easy-to-use labeling system for port identification
