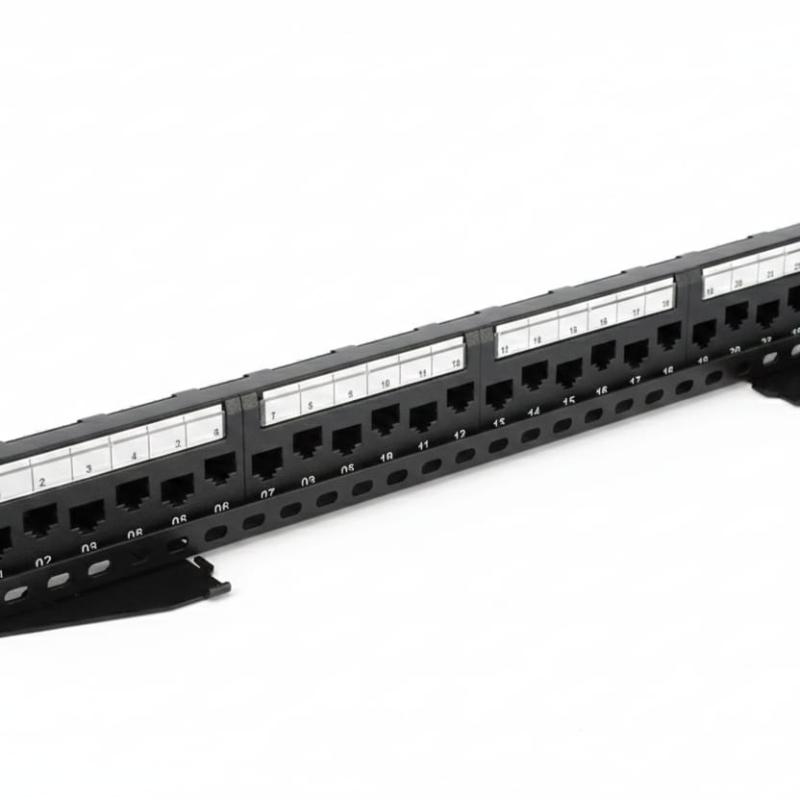

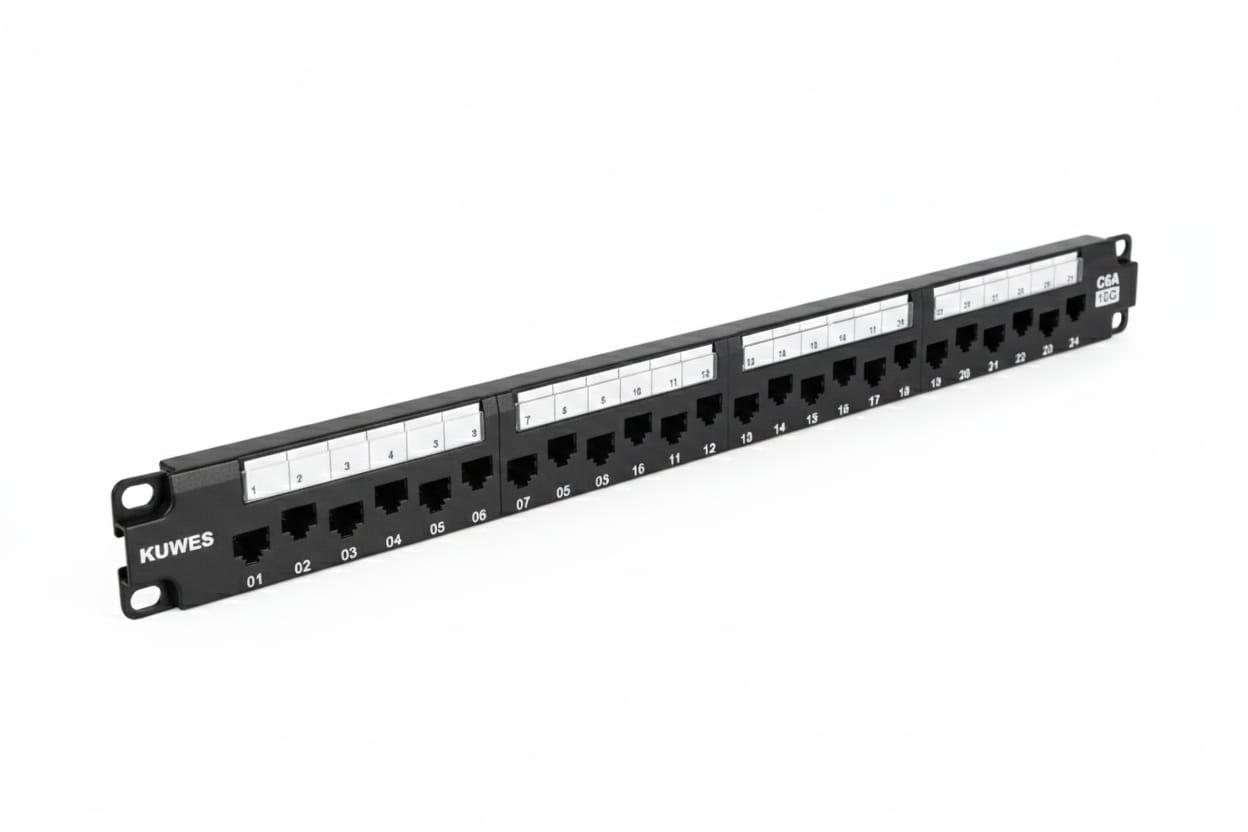

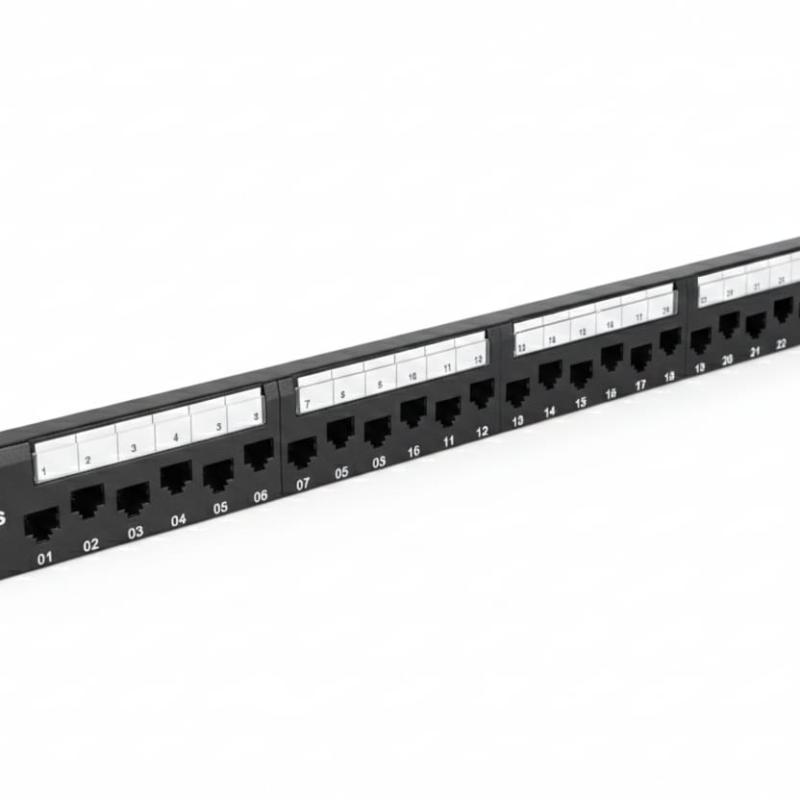

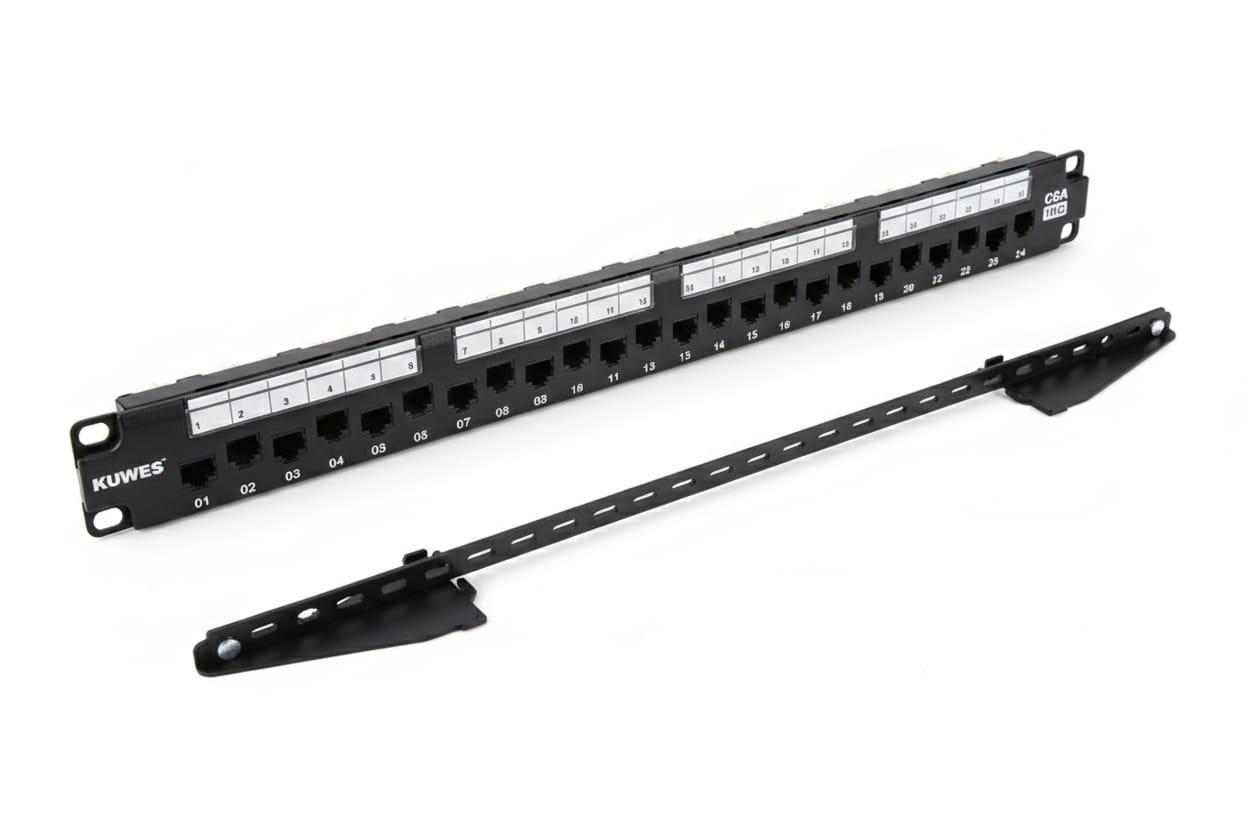

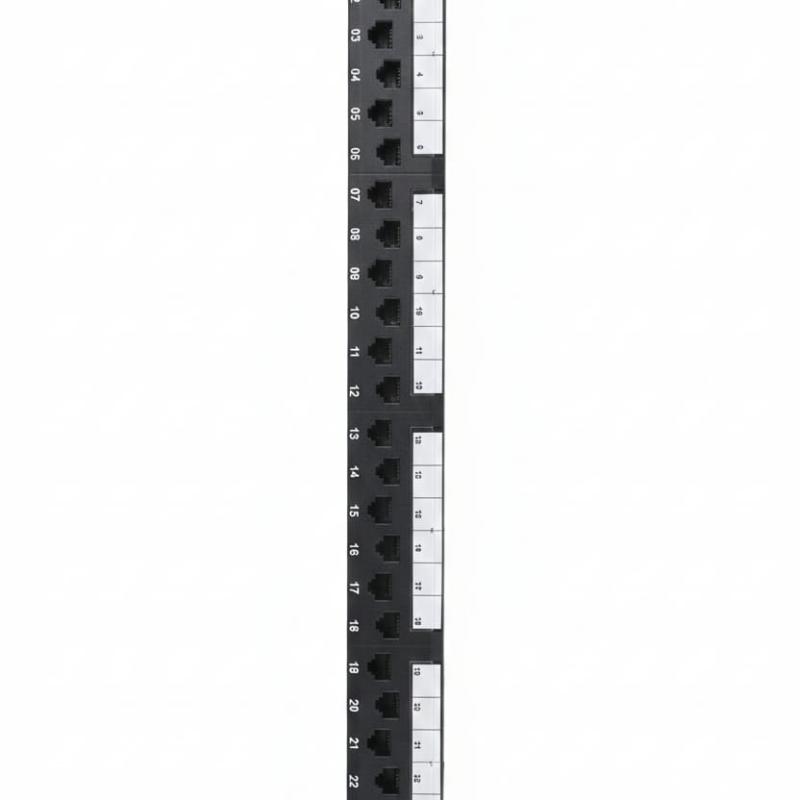

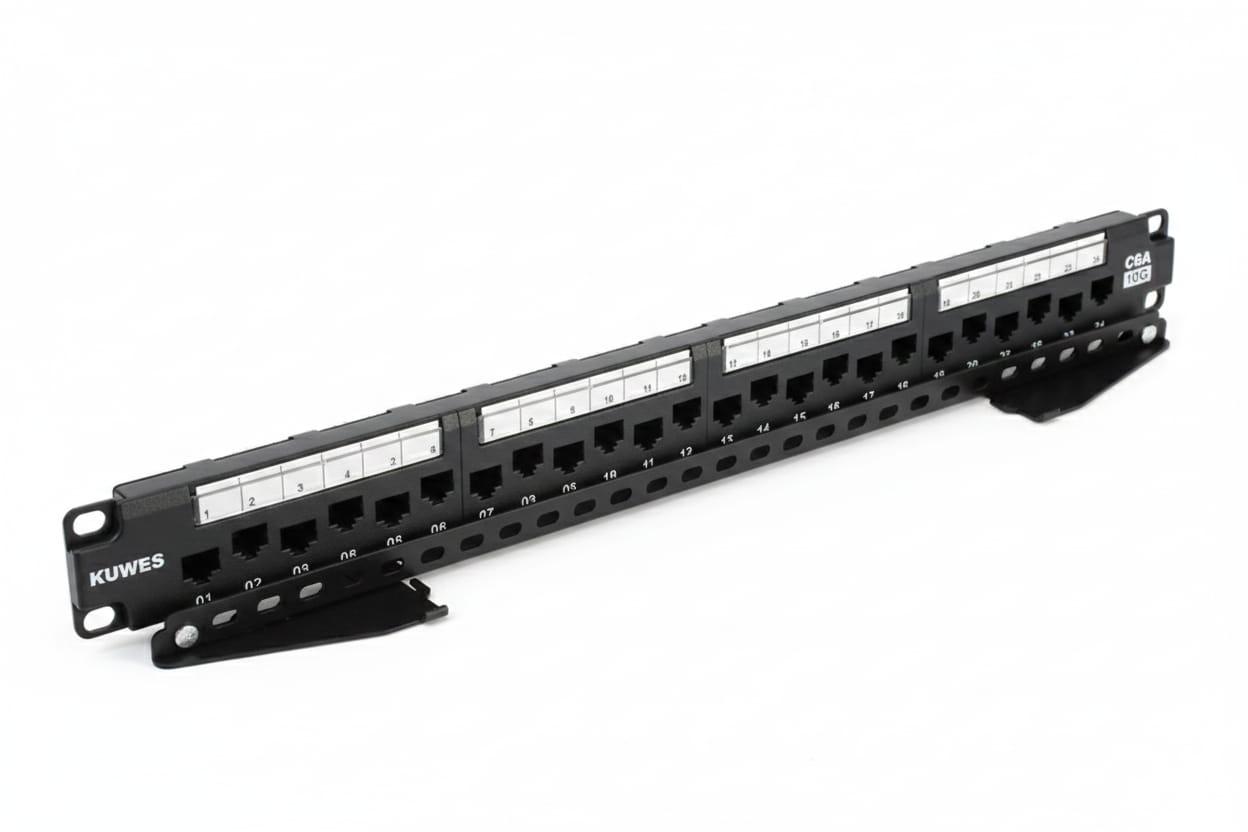

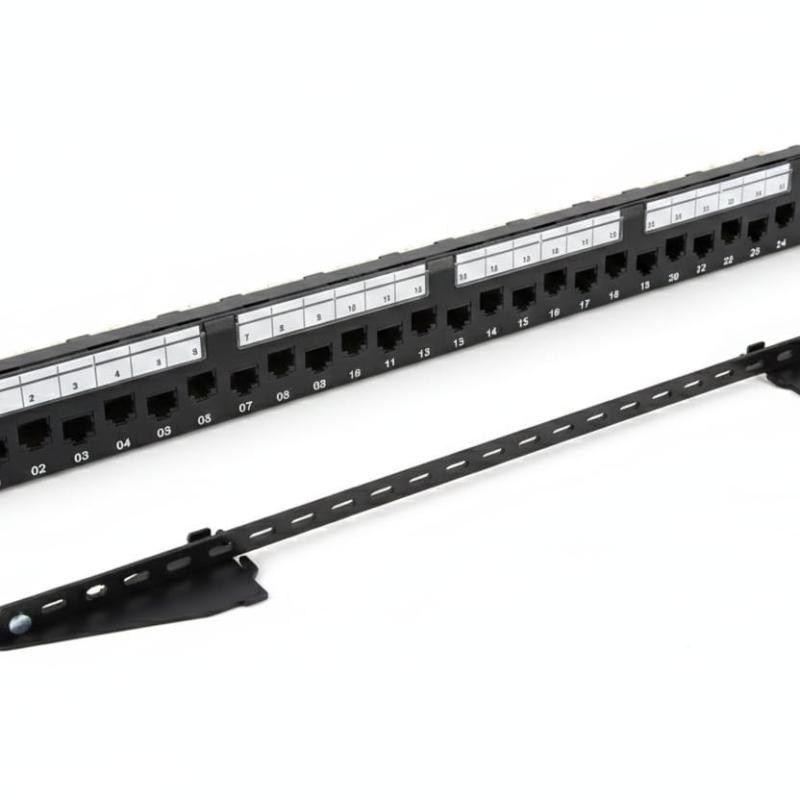

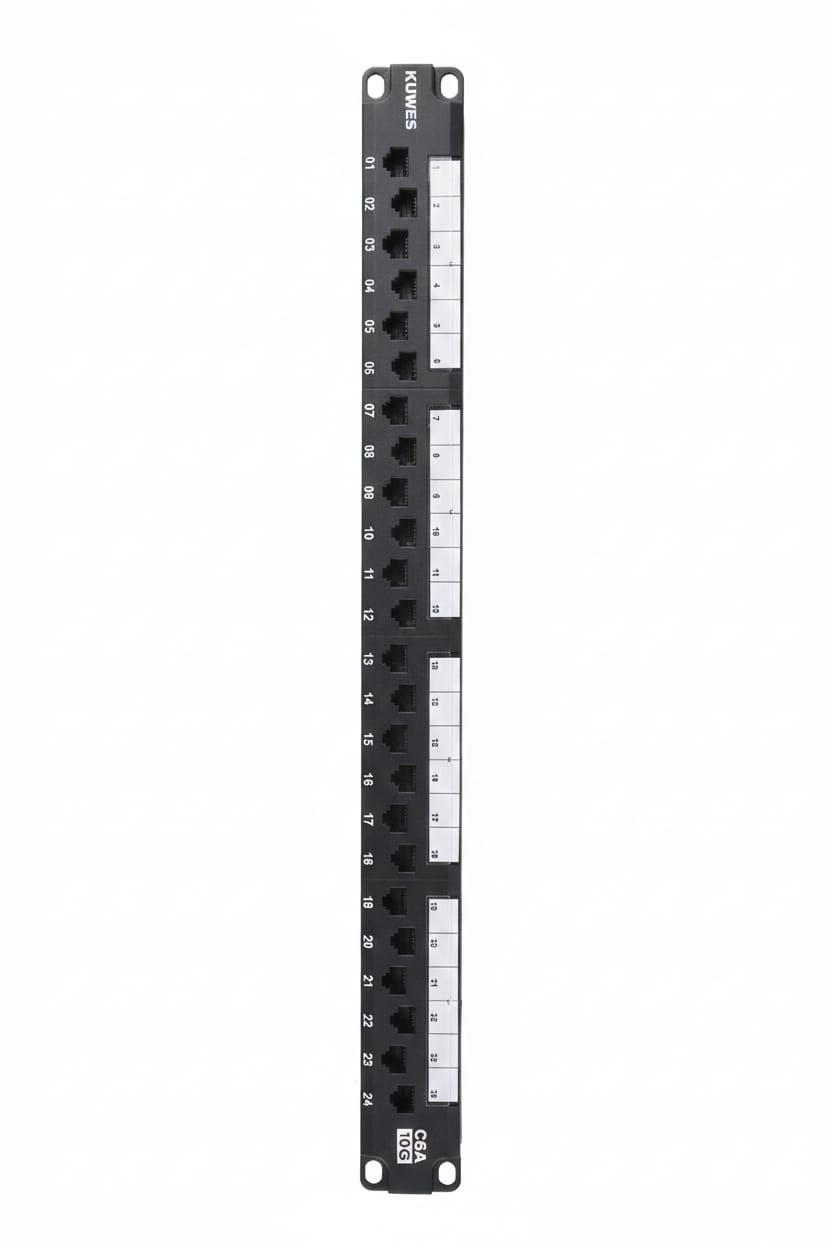

Kuwes 24-Port Cat6A 10G Patch Panel
AED 350.00
AED 375.00
āļø Mechanical & Electrical Details
| Feature | Specification |
|---|---|
| Panel Material | SPCC steel, 1.5mm thick, black powder-coated |
| Jack Type | Pre-installed shielded Cat6A jacks |
| Contact Plating | 50Ī¼ gold-plated contacts for enhanced conductivity and corrosion resistance |
| Cable Gauge Support | 22ā26 AWG solid or stranded STP cables |

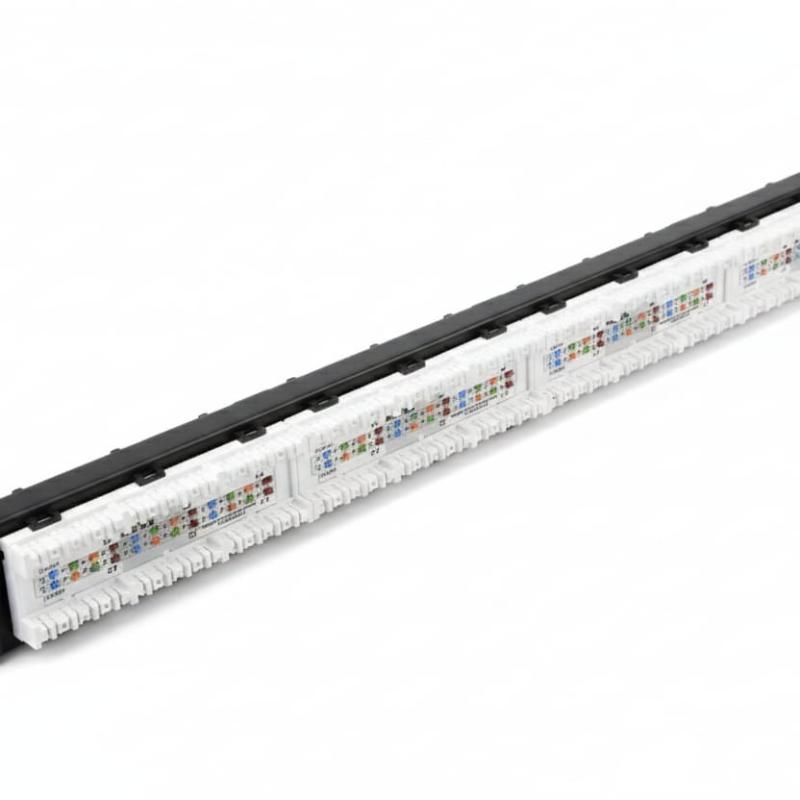

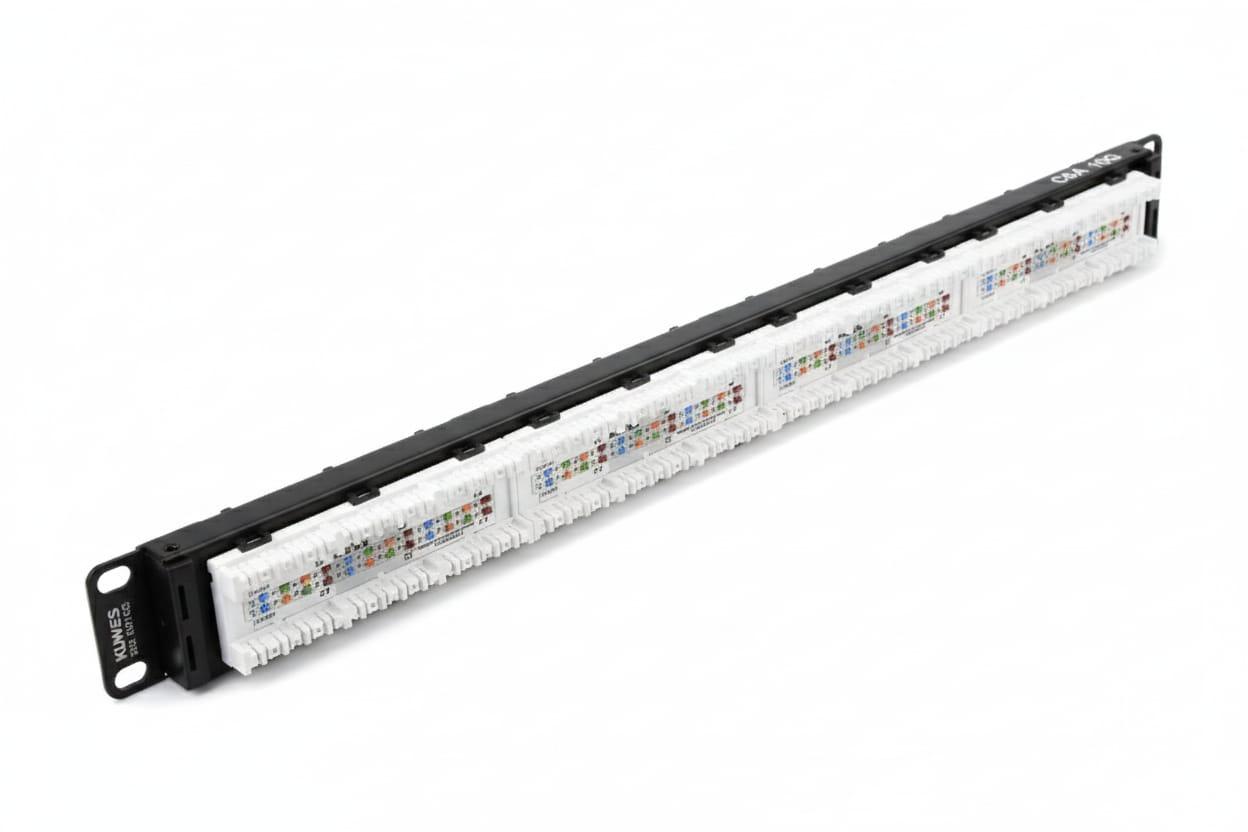

| IDC Termination | 110 punch-down blocks (compatible with 110 & Krone tools) |
| Flammability Rating | UL94V-0 flame-retardant thermoplastic |
| Mounting | Standard 19-inch EIA rack, 1U height |
| Labeling | Writable ID strip above each port |
| Accessories | Includes cable ties, cage nuts, rear cable manager bar |
Ā
Ā
š Performance & Compliance
- Bandwidth Support: Up to 500 MHz
- Applications:
- 10GBASE-T Ethernet
- PoE/PoE+/PoE++
- Voice/Data/Video
- Certifications:
- CE
- RoHS
- REACH Compliant
- TIA/EIA-568-C.2

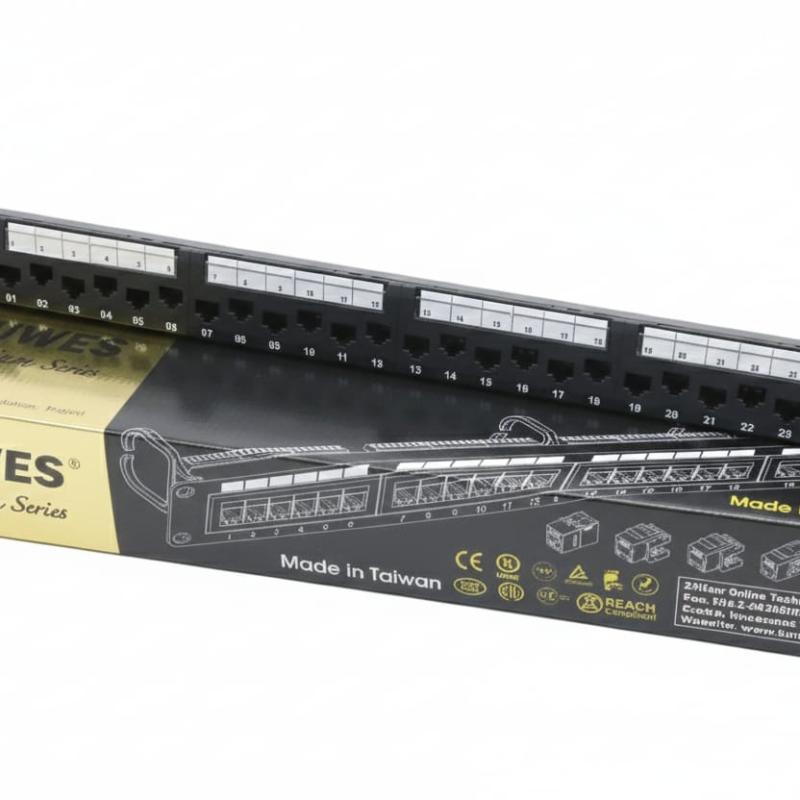

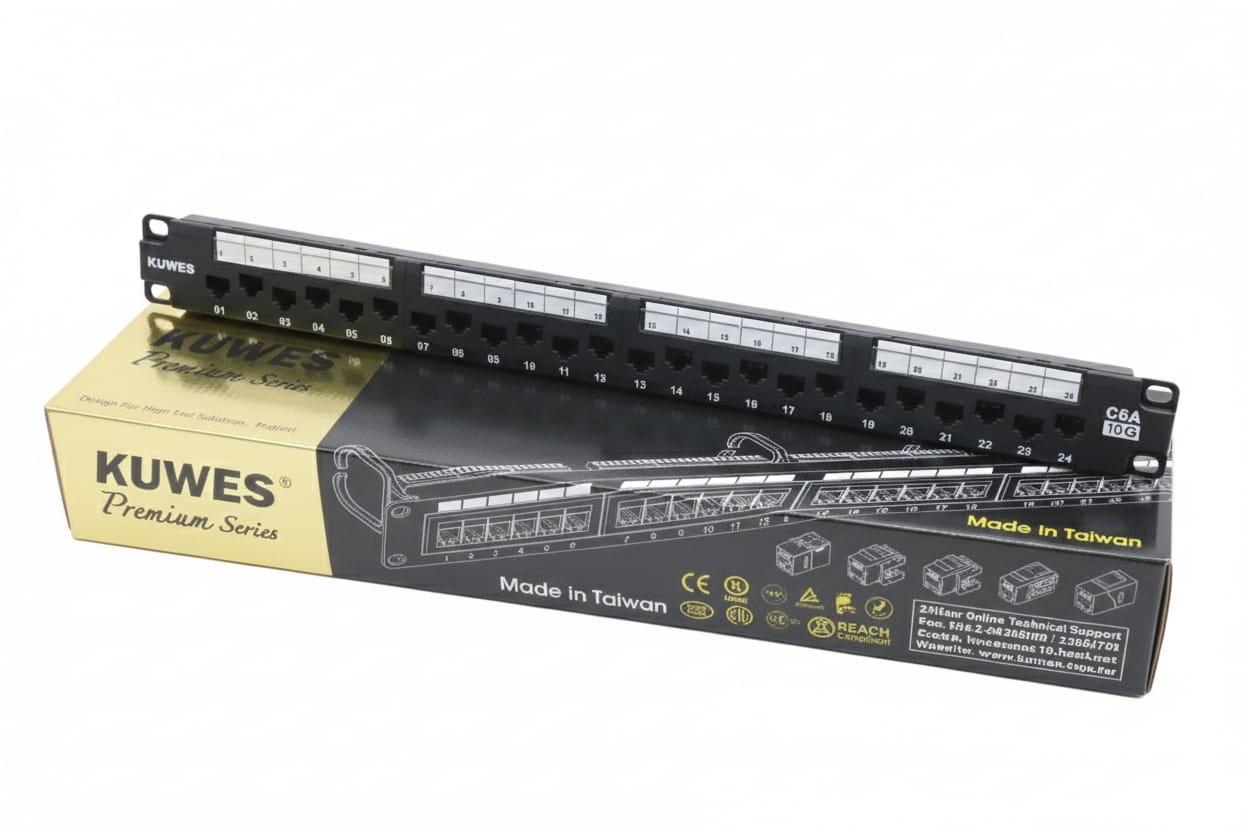

- Country of Origin: Made in Taiwan
Ā
š§ Installation Notes
- Tool Compatibility: Works with standard 110 punch-down and Krone tools
- Grounding: Integrated grounding lugs for shield continuity
- Cable Management: Rear bar supports strain relief and organized routing
- Labeling System: Blank ID strip for port identification
