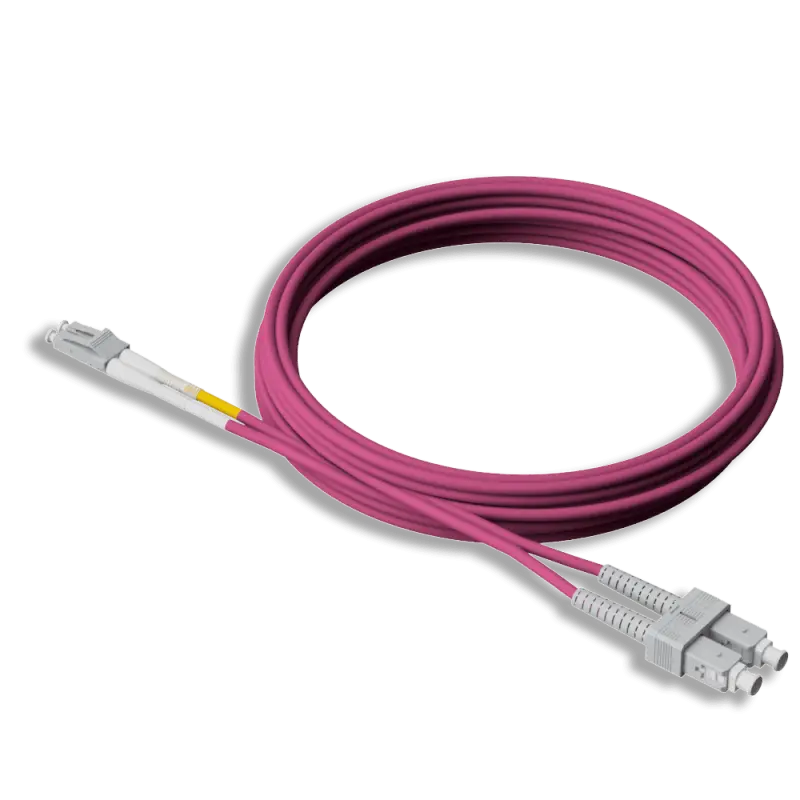

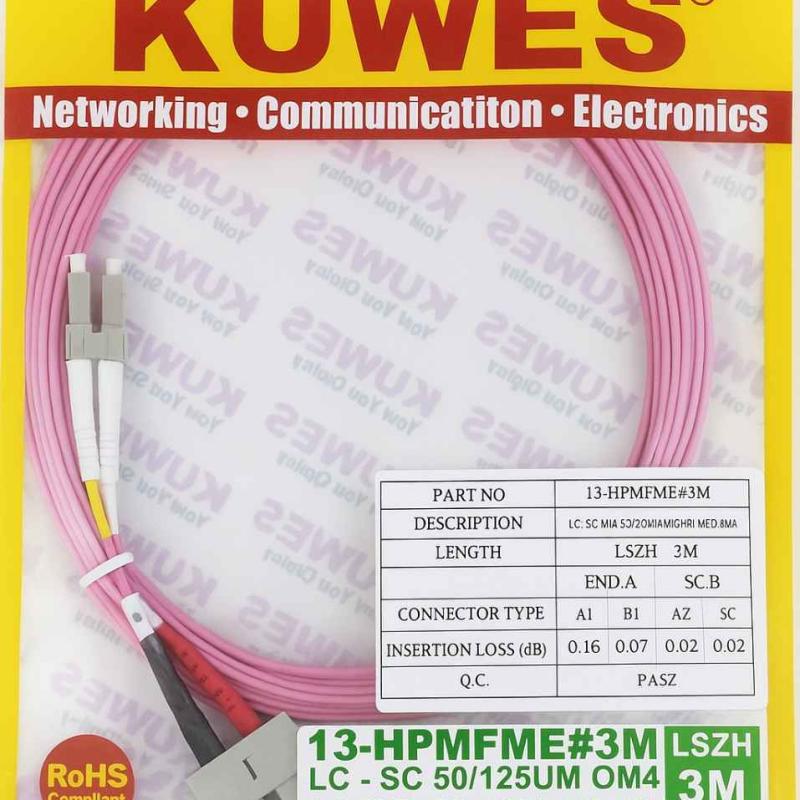

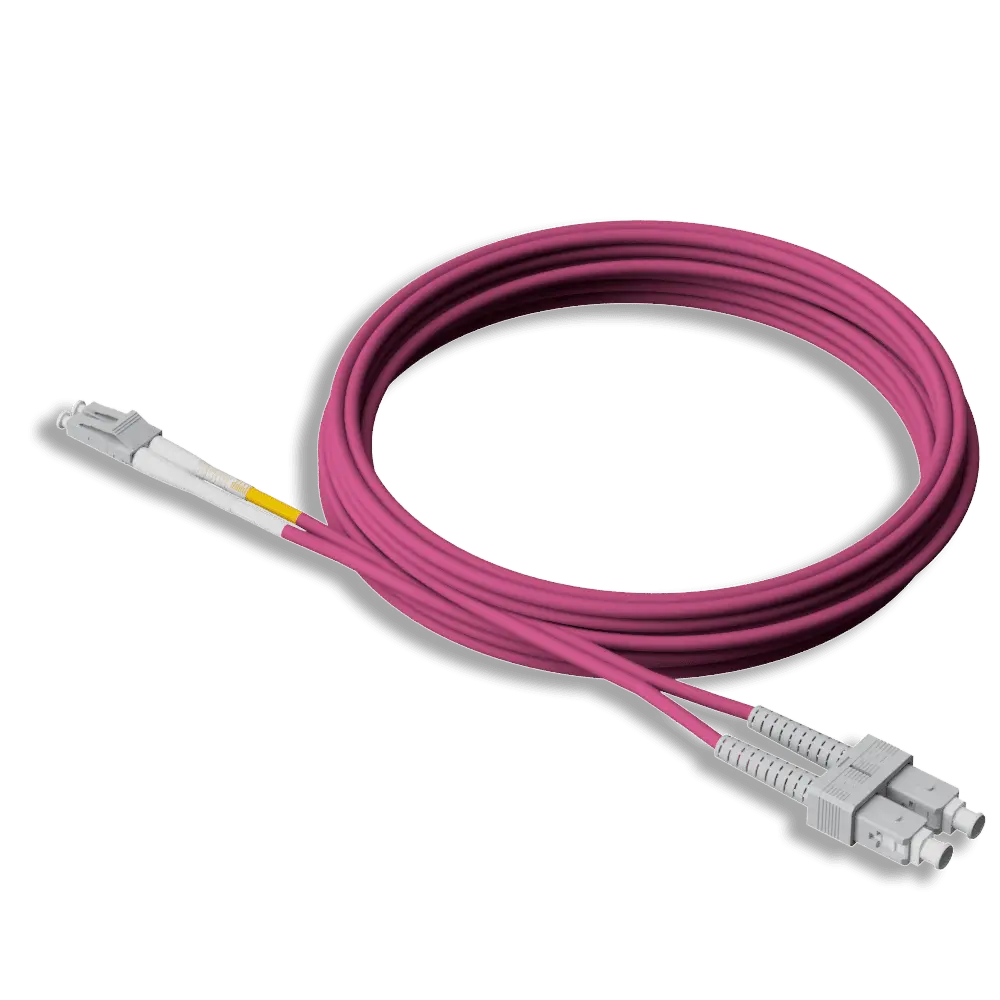

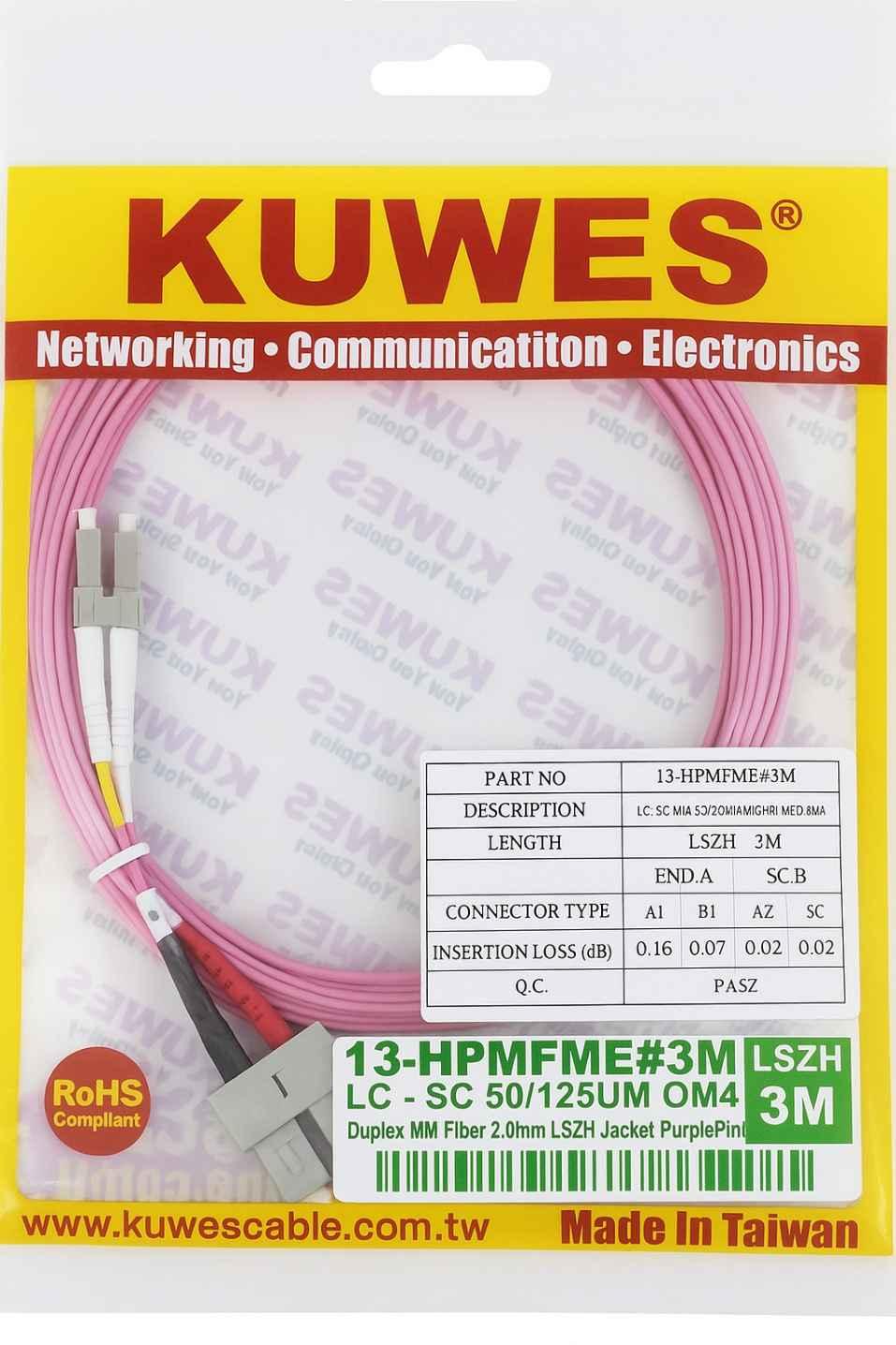

Name: KUWES 3 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH
Brand: Kuwes
SKU: SF-2443-DD1T
Price: 60 AED
Availability: InStock

KUWES 3 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH

Email to a Friend

KUWES 3 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH

Brands: Kuwes

AED 60.00 AED 70.00 -14% Off

Product Details

Brand: KUWES
Model Number: 13-HPMFME#3M
Type: Fiber Optic Patch Cord (Duplex)
Connector Type: LC to SC (Lucent Connector to Lucent Connector)
Fiber Type: Multimode (MM)
Core/Cladding Diameter: 50/125 µm
Optical Mode: OM4 (optimized for 10G/40G/100G Ethernet transmission)
Jacket Type: LSZH (Low Smoke Zero Halogen)
Jacket Diameter: 2.0 mm
Jacket Color: Erika Violet / Pale Pink (standard color for OM4 cables)
Length: 3 meter (3M)
RoHS Compliant: Yes
Country of Origin: Made in Taiwan

SKU: SF-2443-DD1T
Categories: Fiber Cables
Availability: In stock

Description

Parameter	Typical Value
Core/Cladding	50/125 µm
Operating Wavelengths	850 nm / 1300 nm
Bandwidth (Modal)	4700 MHz·km (at 850 nm)
Maximum Distance (10G Ethernet)	up to 550 meters
Maximum Distance (40G/100G Ethernet)	up to 150 meters
Return Loss	≥ 25 dB (Multimode)
Operating Temperature	-20°C to +70°C

It is ideal for:

Data centers
High-speed LAN networks
Storage Area Networks (SANs)
10G/40G/100G Ethernet systems

The OM4 fiber offers enhanced bandwidth and longer reach than OM3, ensuring optimal performance in high-density, high-speed applications.
The LSZH jacket minimizes toxic emissions in case of fire, making it safe for use in enclosed or public areas.
