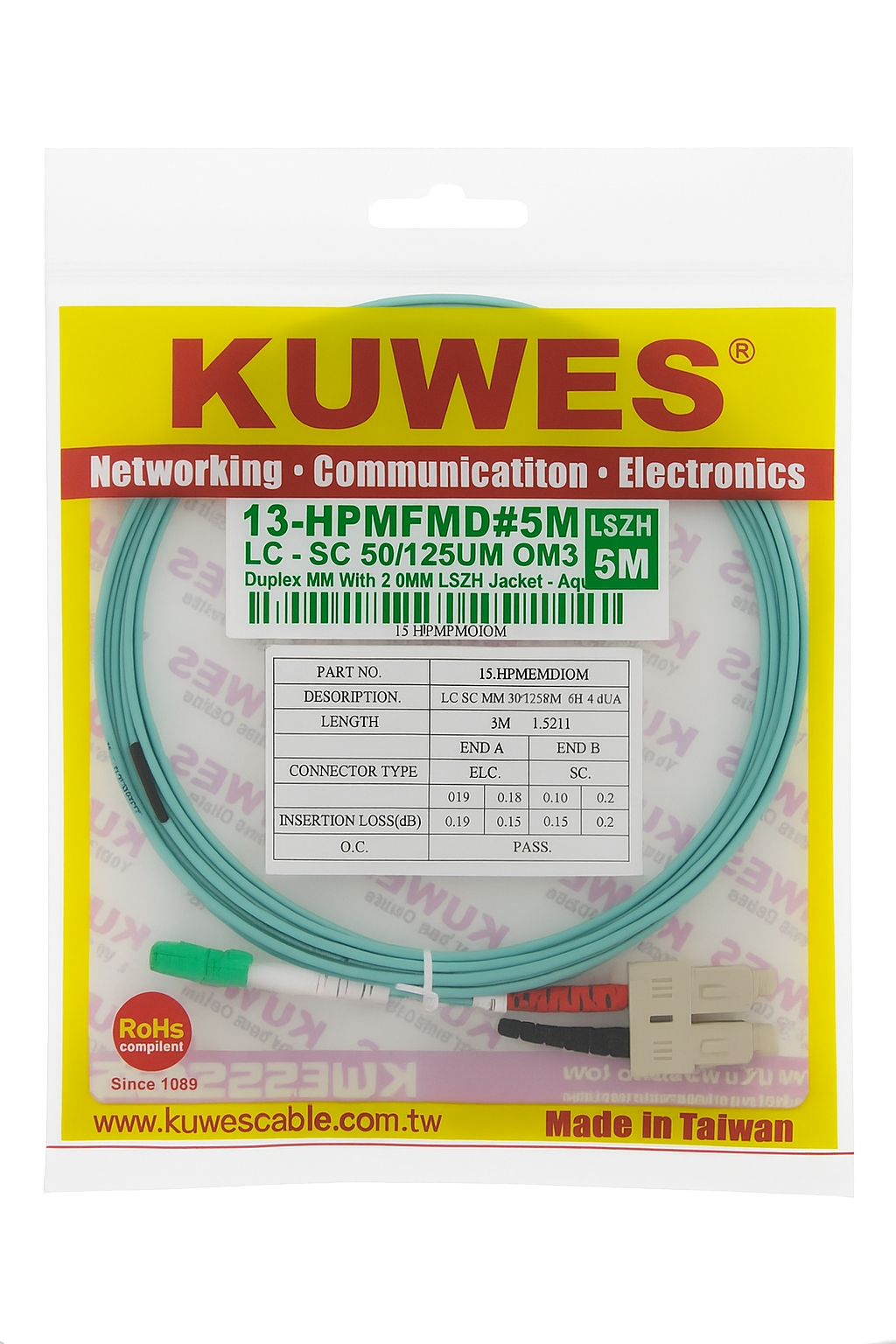

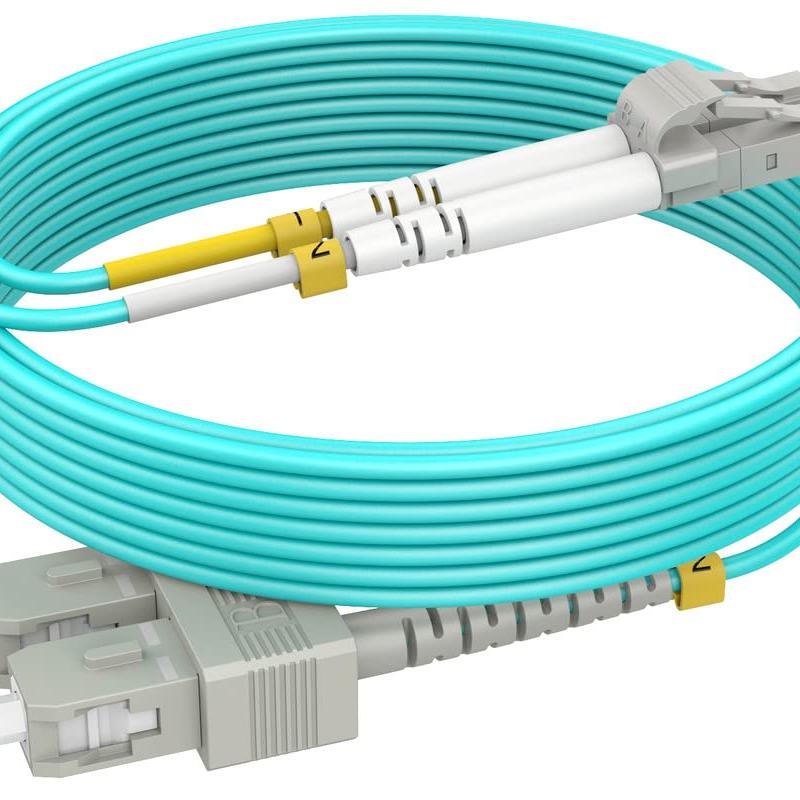

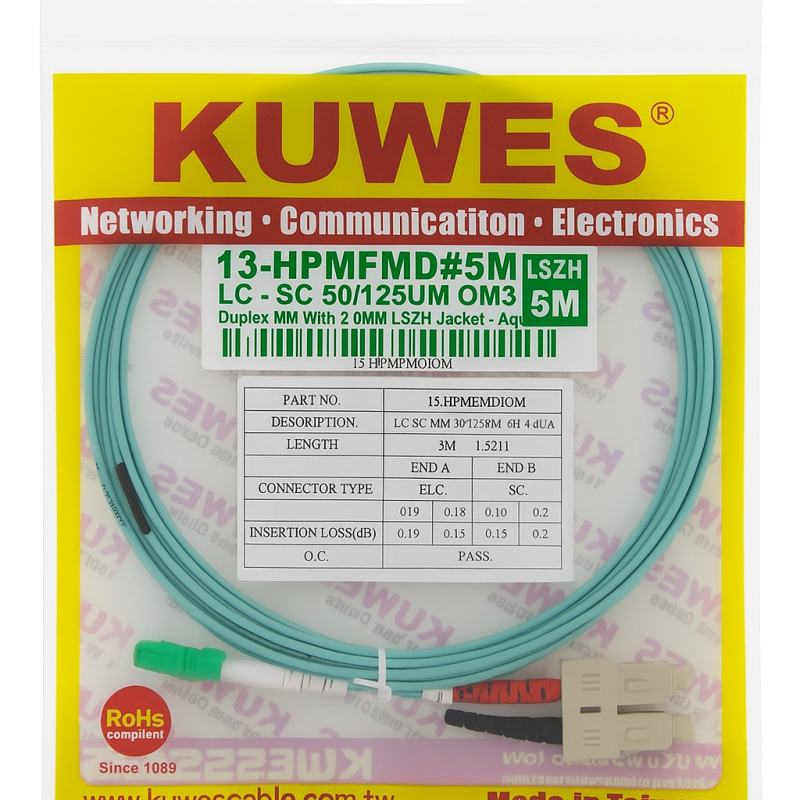

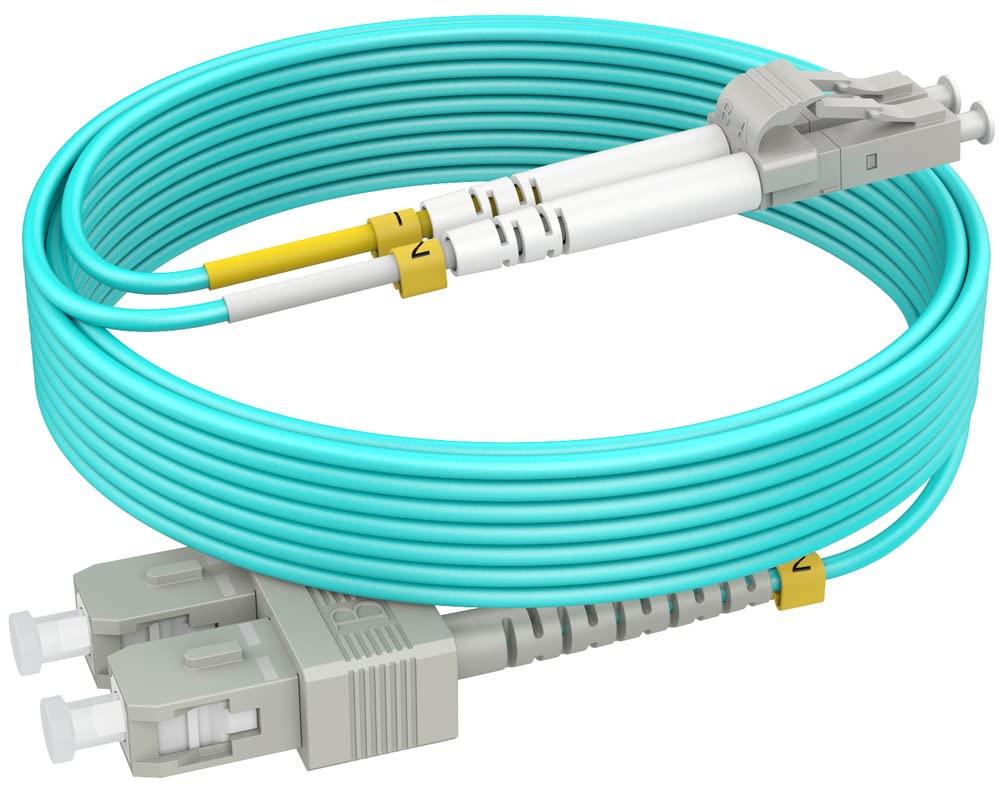

Name: KUWES 5 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH
Brand: Kuwes
SKU: SF-2443-ZAZV
Price: 55 AED
Availability: InStock

KUWES 5 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH

Email to a Friend

KUWES 5 MTR LC–SC 50/125μm Duplex MM Fiber Patch Cord LSZH

Brands: Kuwes

AED 55.00 AED 65.00 -15% Off

KUWES LC–SC Duplex Multimode Fiber Patch Cord

Model: 13-HPMFMD#5M
Length: 5 Meter
Type: LC to SC | Duplex | OM3 Multimode (MM)
Fiber Type: 50/125 µm
Jacket: LSZH (Low Smoke Zero Halogen) | 2.0mm | Aqua Blue
Country of Origin: Made in Taiwan

SKU: SF-2443-ZAZV
Categories: Fiber Cables
Availability: In stock

Description

Parameter	Specification
Fibre core/cladding	50 µm / 125 µm
Fibre grade	OM3 (laser optimized multimode)
Cable length	5 metre
End connectors	LC duplex → SC duplex
Jacket colour	Aqua
Jacket material	LSZH
Modal bandwidth	≥ 2000 MHz·km @ 850 nm
Attenuation	≤ 2.4 dB/km @ 850 nm (typical)
Data-rate support	10G up to ~300m, 40/100G up to ~100m (indicative)
Operating temperature	~-20 °C to +60 °C
Compatibility	50/125 µm multimode fibre systems, backwards compatible

Applications:

High-density network patching in data centres (switches, servers, fibre panels)
10 Gb/s Ethernet up to ~300 m, and up to ~100 m for 40/100 Gb/s networks over OM3.
Storage Area Networks (SANs), enterprise LAN backbones, short‐reach high-speed multimode links.
