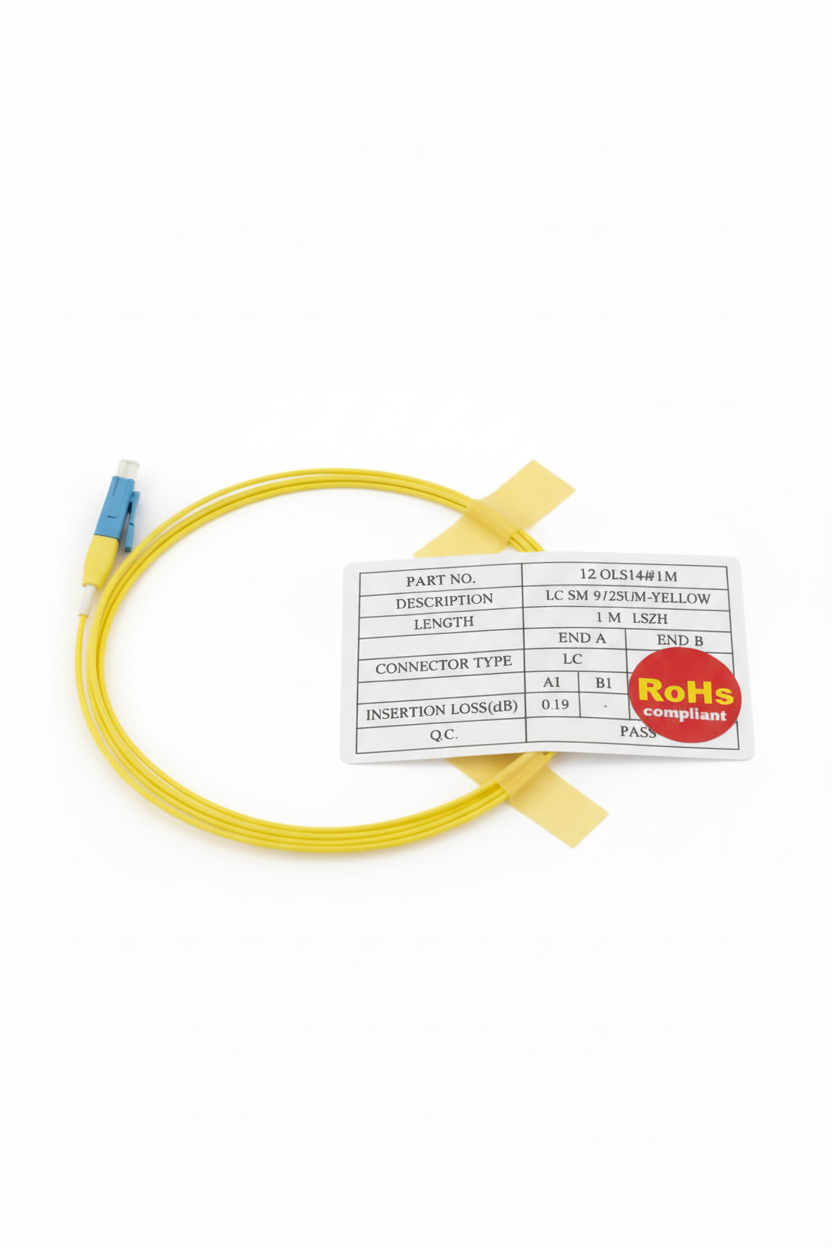

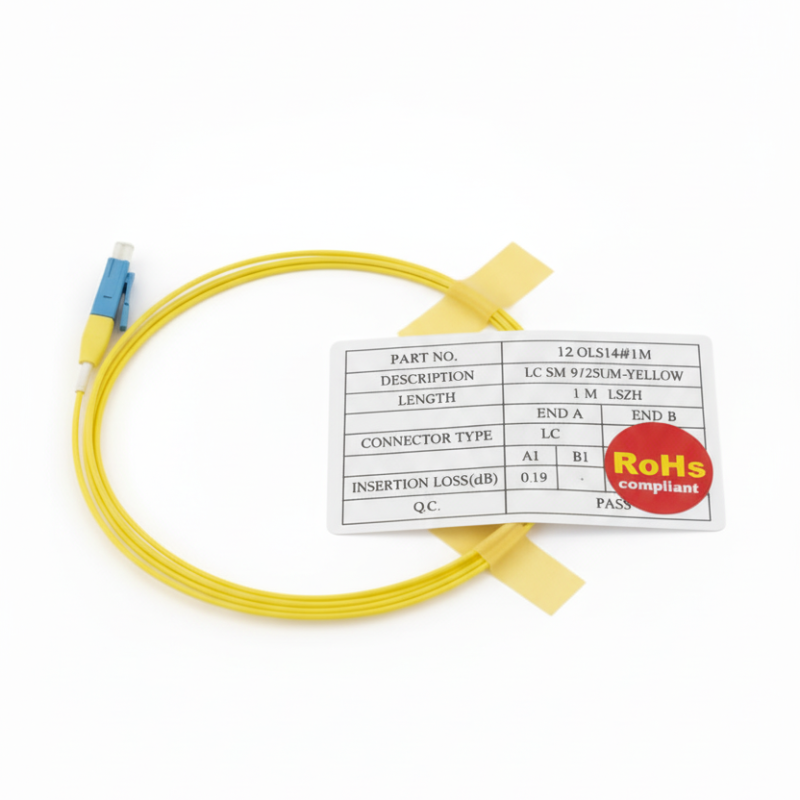

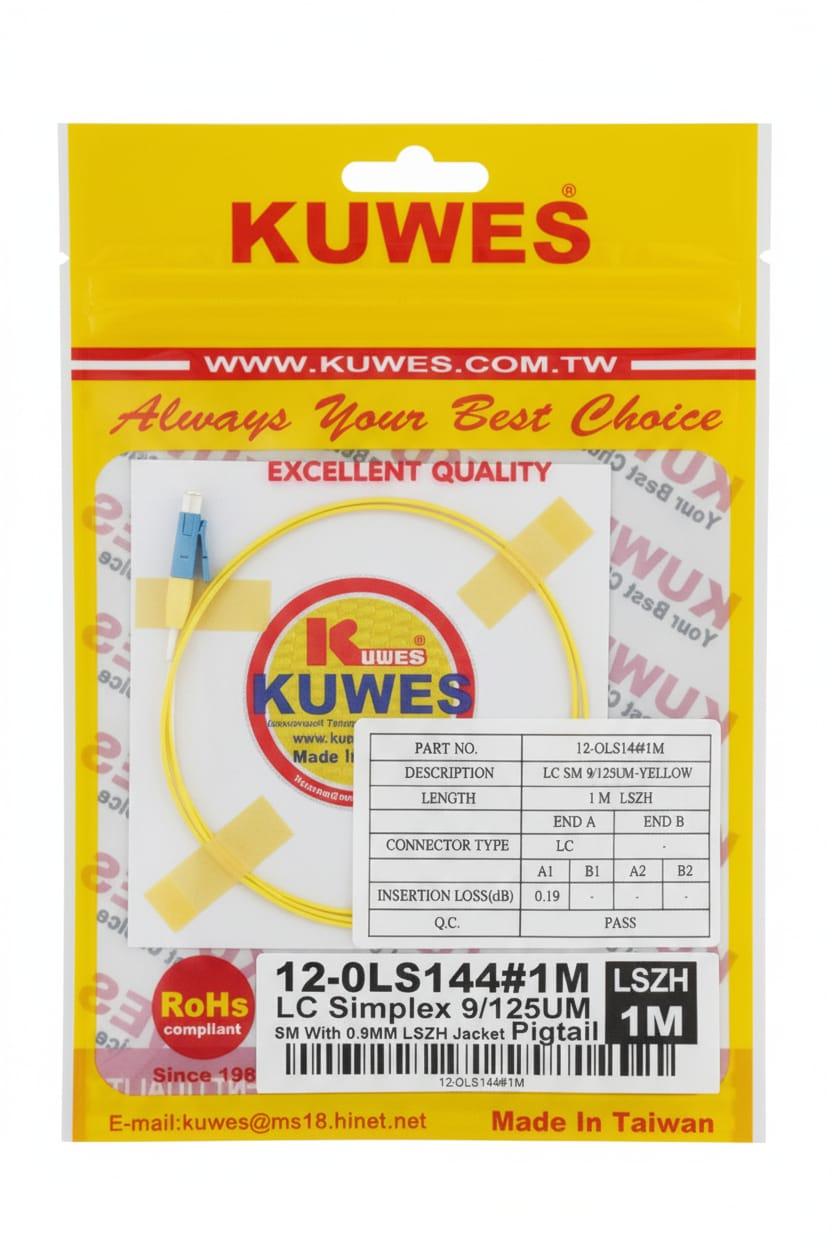

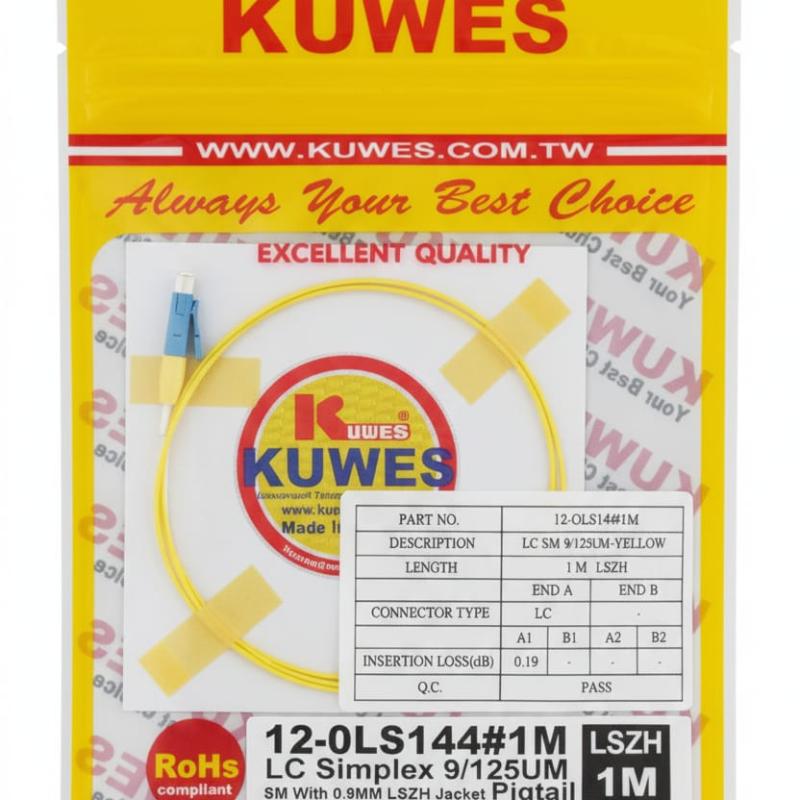

KUWES LC Simplex 9/125µm Singlemode Pigtail (1 Meter)

Brands: Kuwes

AED 18.00 AED 30.00 -40% Off

📌 KEY FEATURES

📏 Physical & Fiber Specifications

Parameter	Specification	Relevance
Fiber Type	Singlemode (SM) 9/125µm	Used for high-speed, long-distance data transmission.
Mode	Simplex	Contains a single strand of fiber for one-way communication.
Length	1 Meter (1M)	The total length of the pigtail cable.
Jacket Material	LSZH (Low Smoke Zero Halogen)	A safety feature required for indoor/public building installations, reducing toxic fumes in a fire.
Jacket Diameter	0.9MM	The size of the tight-buffered jacket surrounding the fiber.
Color	Yellow	Standard color coding for single-mode fiber cables.

🔌 Connector & Performance

Parameter	Specification	Industry Standard Note

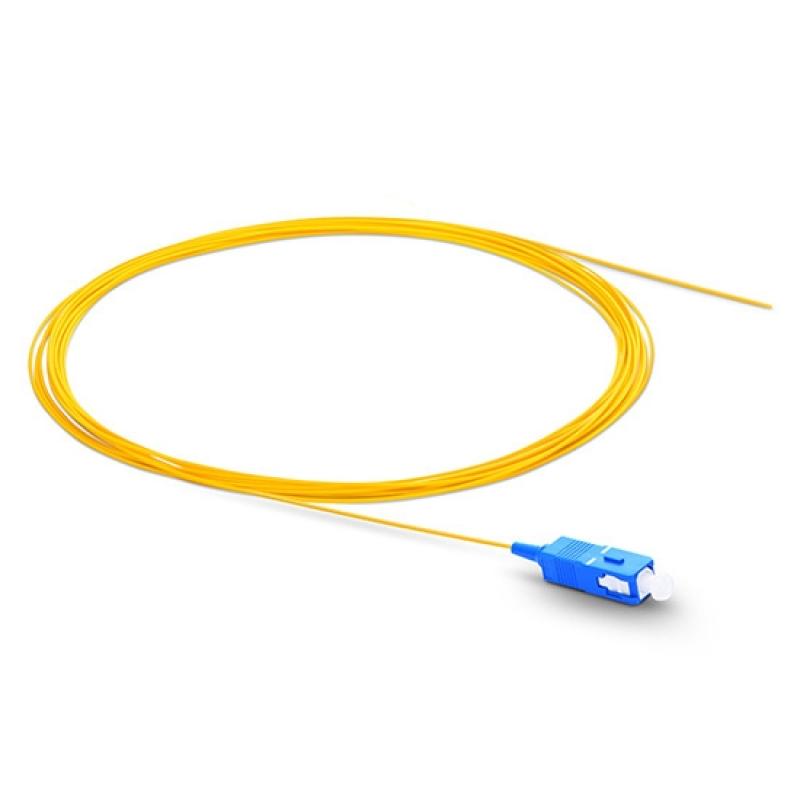

Connector Type	SC	Common push-pull style connector. (The blue color indicates an SC/UPC—Ultra Physical Contact—polish, meaning the end face is flat/slightly curved, typically offering $\geq 50 \text{ dB}$ Return Loss.)
End A	SC Connector	The terminated end.
End B	Bare fiber	The end intended for fusion splicing.
Insertion Loss	0.03 dB	This is the measured loss for the connector (A1 in the QC table) and indicates a very high-quality connection, as it's significantly lower than the typical $0.3 \text{ dB}$ standard.
Q.C.	PASS	The product has passed quality control testing.
