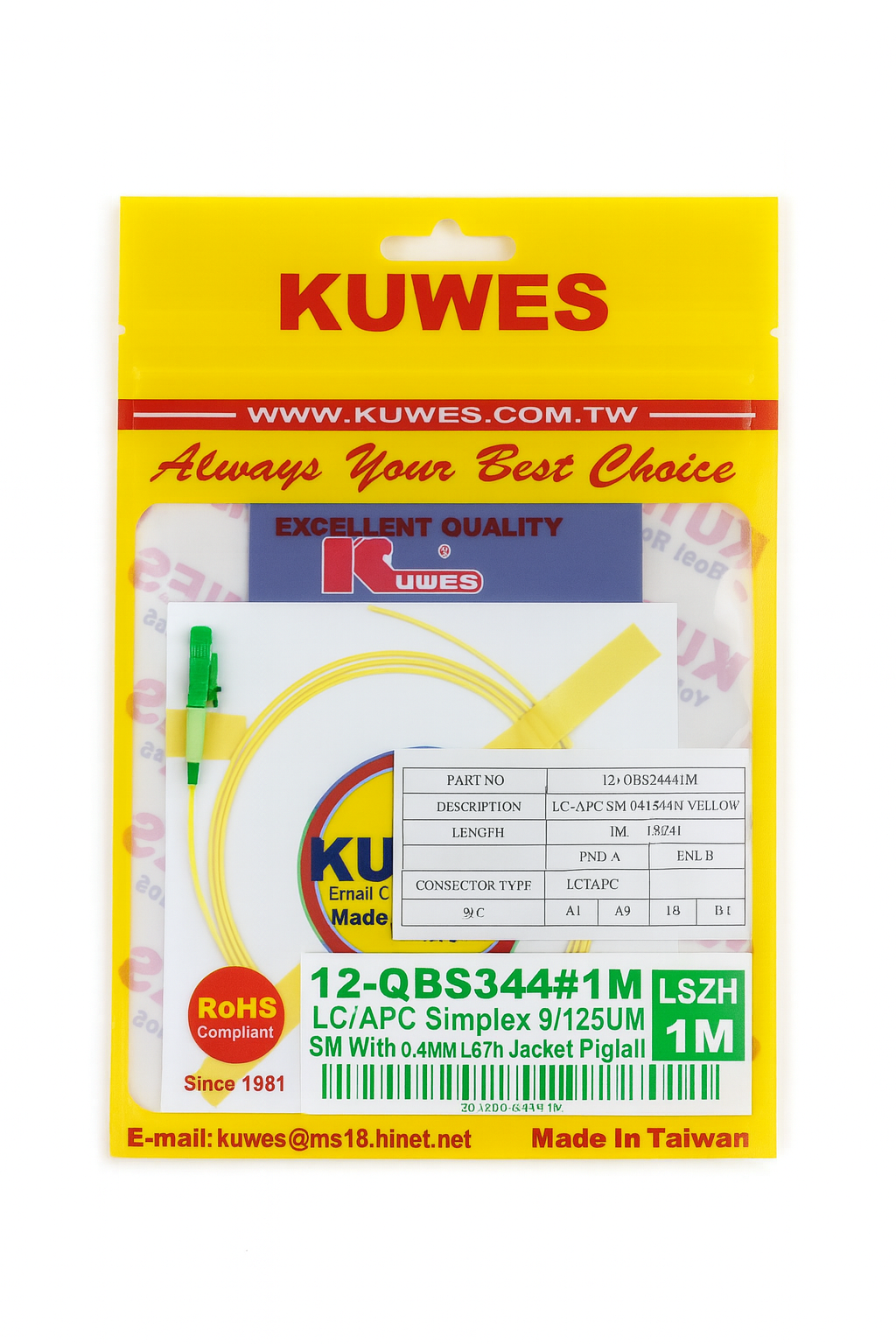

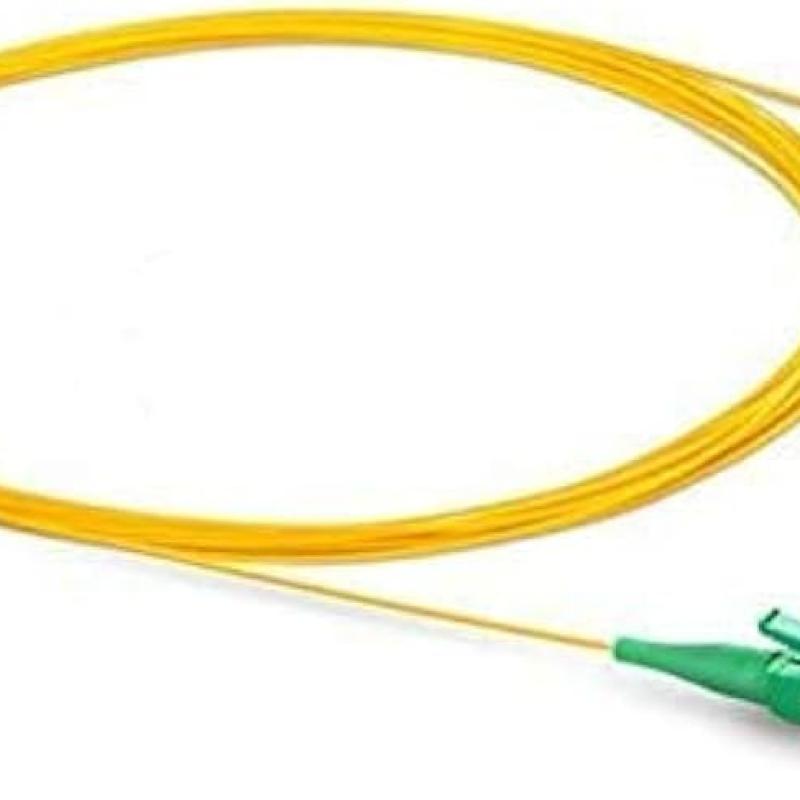

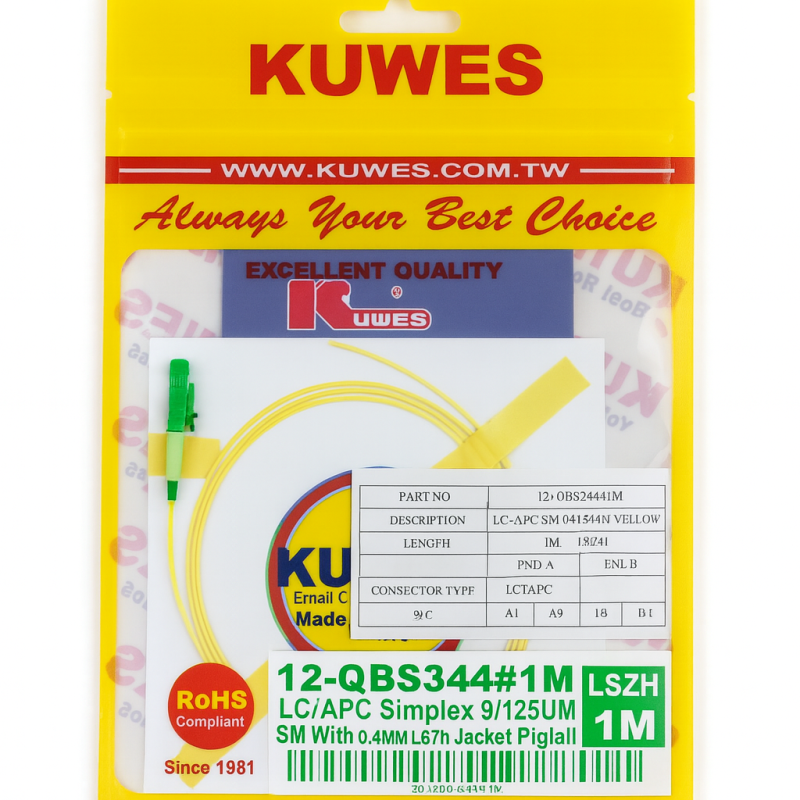

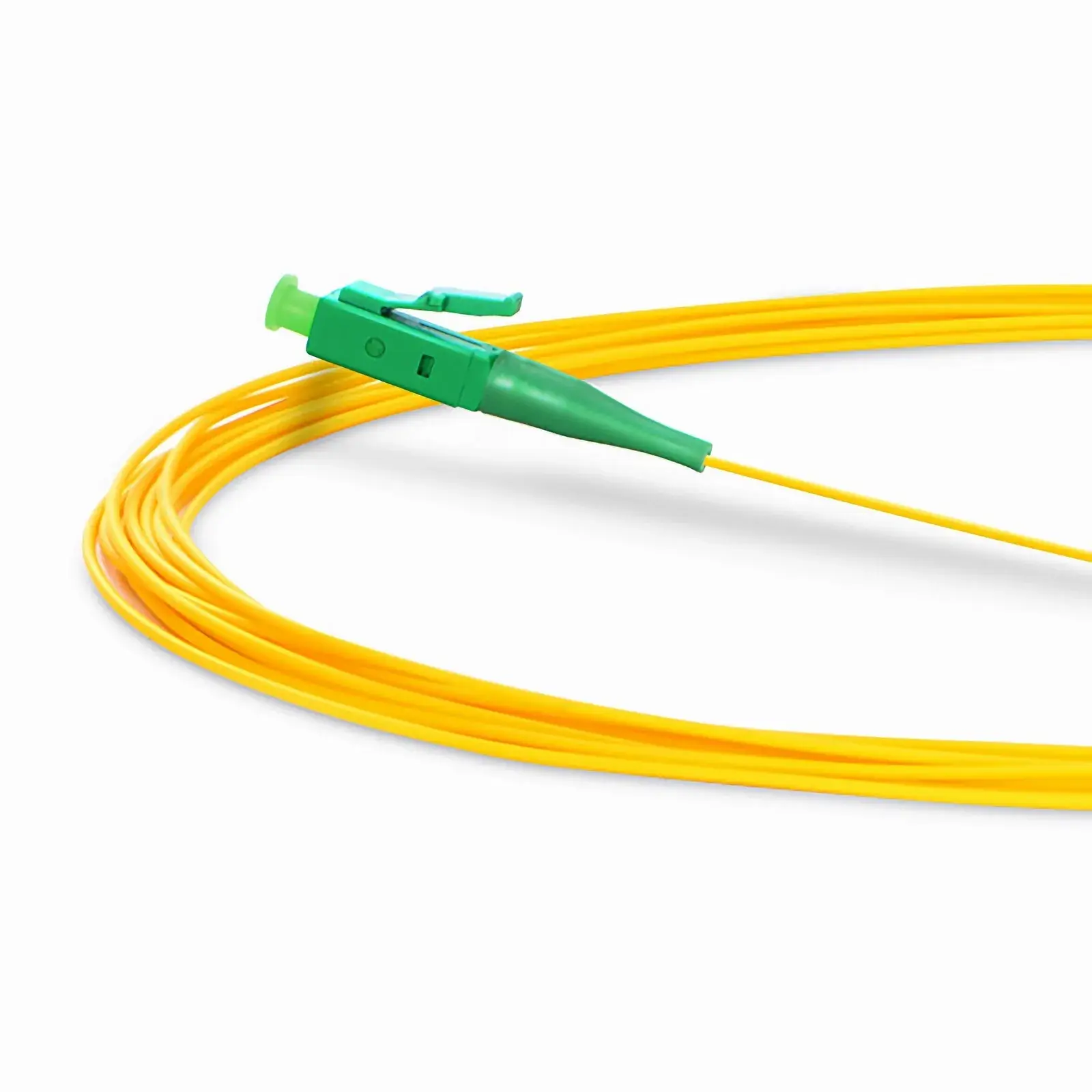

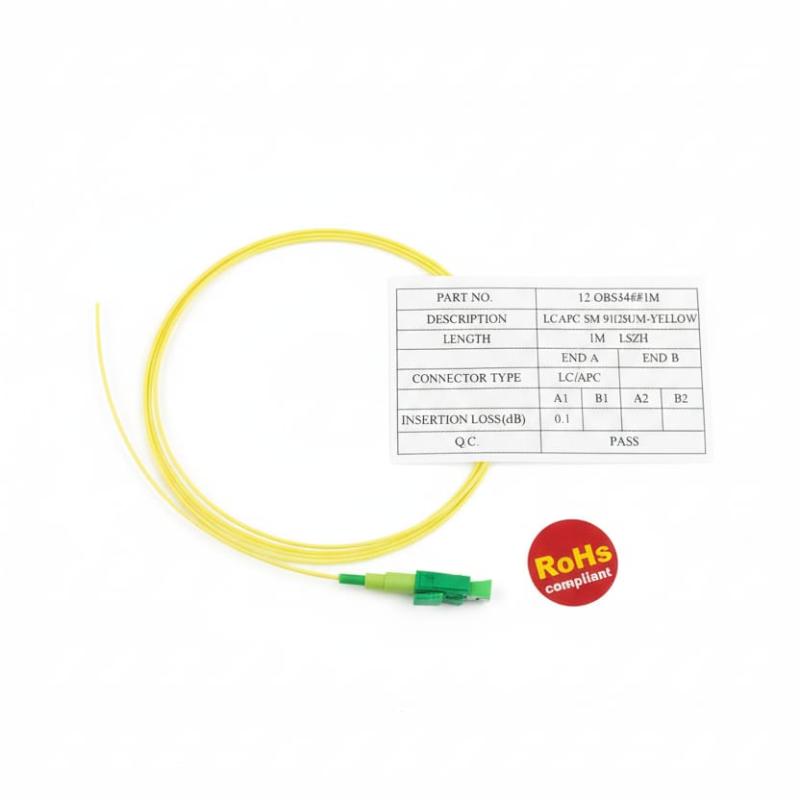

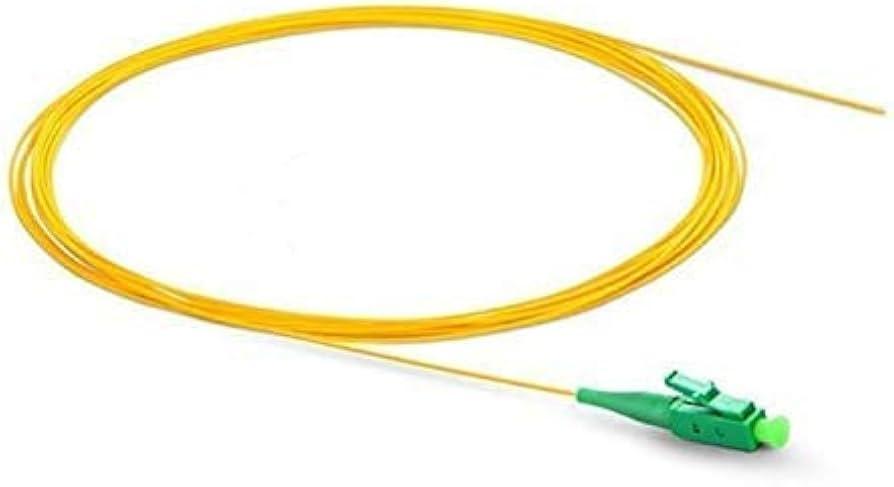

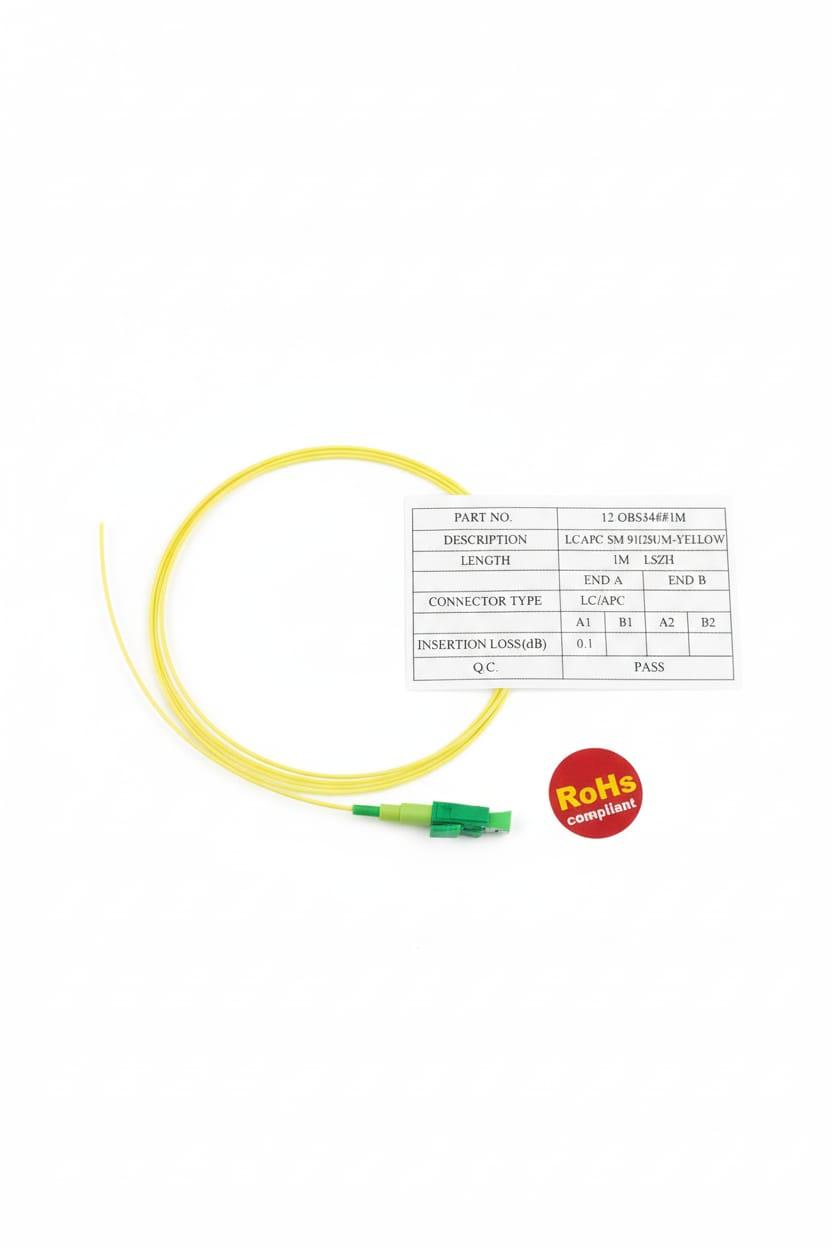

KUWES LC/APC Simplex 9/125µm Singlemode Pigtail (1 Meter)

Email to a Friend

KUWES LC/APC Simplex 9/125µm Singlemode Pigtail (1 Meter)

Brands: Kuwes

AED 18.00 AED 30.00 -40% Off

📌 KEY FEATURES

Connector: LC/APC (Green connector)
Fiber Type: Singlemode (SM) 9/125µm
Construction: Simplex Pigtail
Jacket: 0.9mm LSZH (Low Smoke Zero Halogen)
Length: 1 Meter
High Precision Ferrule for stable optical performance
Factory-tested for insertion loss and return loss
RoHS Compliant
Made in Taiwan – premium quality build

SKU: SF-2443-KAXU
Categories: Fiber Cables
Availability: In stock

Description

📌 TECHNICAL SPECIFICATIONS

Fiber & Cable

Parameter	Specification
Fiber Type	Singlemode 9/125µm
Mode	OS2 (Standard Singlemode)
Jacket Material	LSZH
Jacket Diameter	0.9mm
Color	Yellow

Connector

Parameter	End A
Connector Type	LC/APC
Ferrule Material	Ceramic
Polish Type	APC (Angled Physical Contact)
Color	Green

Optical Performance

Parameter	Value
Insertion Loss	≤ 0.10 dB (Typical as printed: 0.1 dB)
Return Loss	≥ 60 dB (APC)
Test Standard	IEC / TIA compliant
QC	PASS (Factory tested)

Mechanical & Environmental

Feature	Description
Operating Temperature	-40°C to +75°C
Storage Temperature	-45°C to +85°C
Durability	500+ Matings
Flame Rating	LSZH, low smoke emission

📌 APPLICATIONS

ODF Fiber Termination Panels
FTTH / FTTx Deployments
CATV Networks
Passive Optical Networks (PON)
Telecom & ISP Infrastructure
Data Centers & Server Rooms
Fusion Splicing Projects
