RJ45 CAT6 INLINE COUPLER KEYSTONE TYPE JE
AED 18.00
AED 25.00

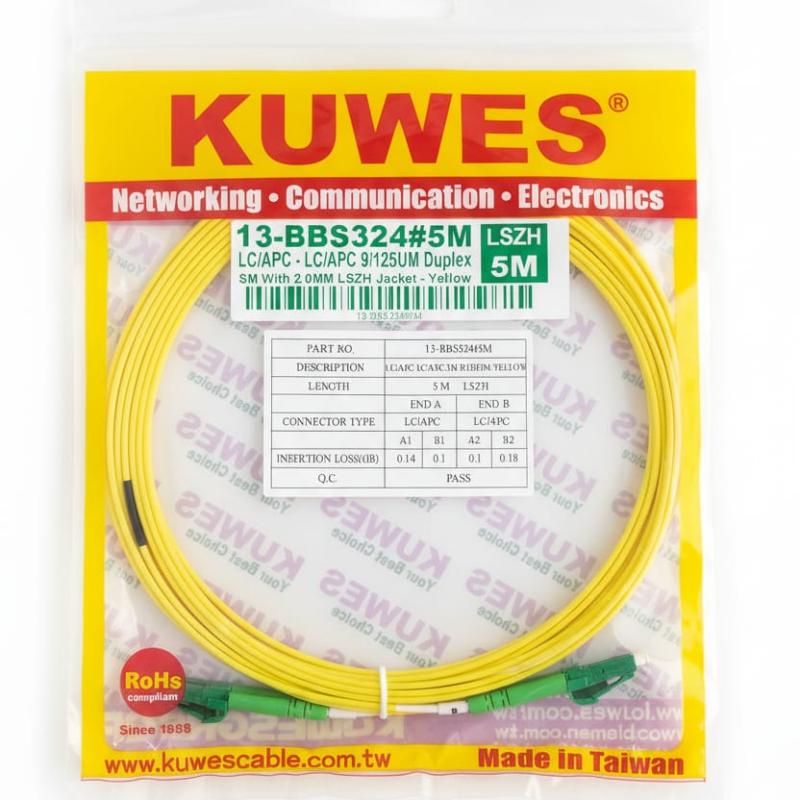

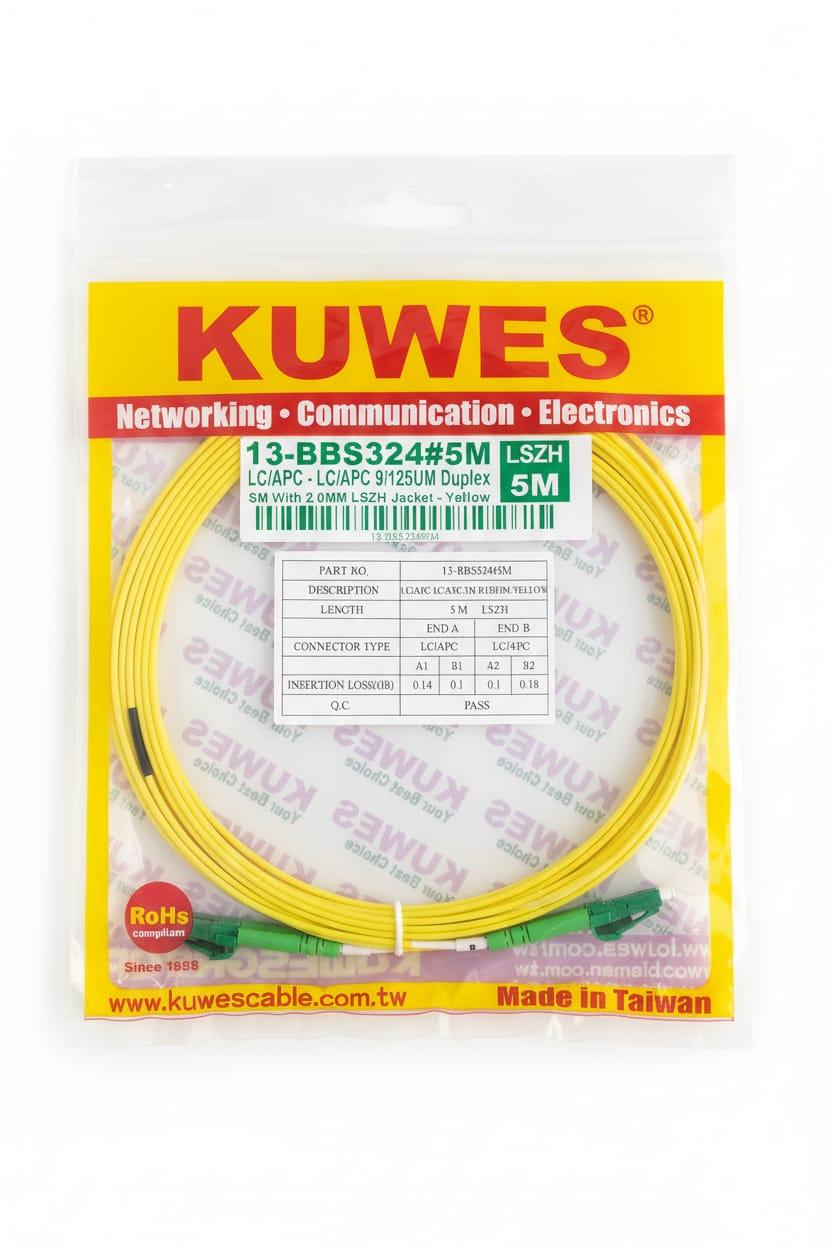

Technical Specifications:
Parameter | Details |
|---|---|
Brand | KUWES |
Model / Part No. | 13-BBS324#5M |
Cable Type | Duplex Singlemode Fiber (SM) |
Fiber Size | 9/125 µm |

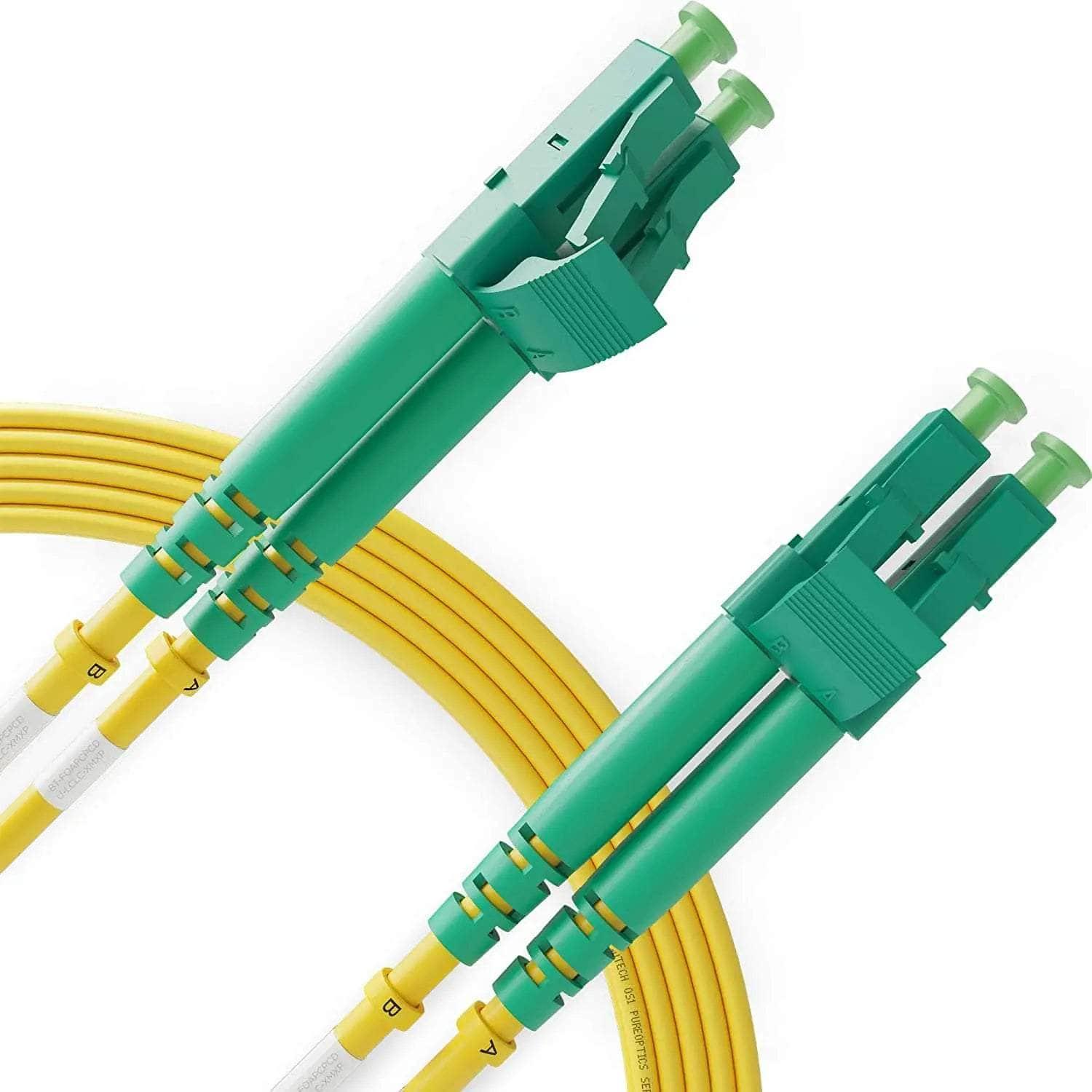

Connector Type | LC/APC to LC/APC |
Polish Type | APC (Angled Physical Contact) |
Length | 5 Meter |
Cable Jacket | LSZH (Low Smoke Zero Halogen) |
Jacket Diameter | 2.0 mm |
Color | Yellow |
Insertion Loss (Typical) | ≤ 0.30 dB |
Return Loss | ≥ 60 dB |
Operating Wavelength | 1310 nm / 1550 nm |
Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C |
Compliance | RoHS Compliant |
Quality Control | 100% Tested & Q.C. PASS |
Country of Origin | Made in Taiwan |
Key Features:
Duplex LC/APC to LC/APC for high-speed singlemode connections
Excellent optical performance with low insertion loss
2.0mm LSZH jacket ensures flexibility and safety
High-quality zirconia ferrules for precise alignment
Factory-terminated and tested for superior reliability
Suitable for data centers, FTTH, and telecom backbones
