📌 Fiber Specifications

• Fiber Type: Singlemode SM 9/125µm
• Mode: Simplex
• Jacket Diameter: 0.9mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Yellow

📌 Connector Specifications

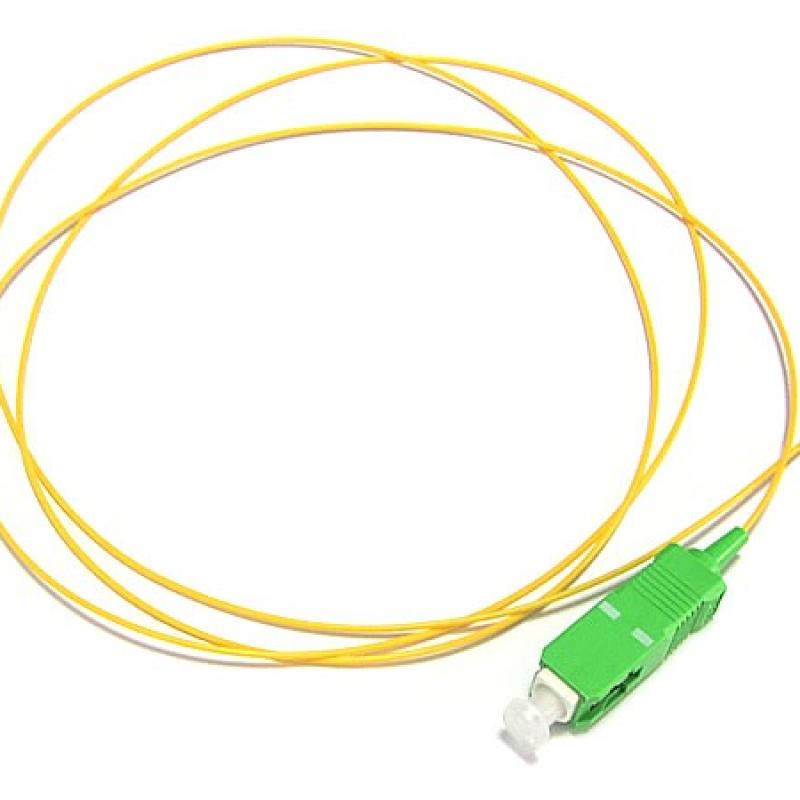

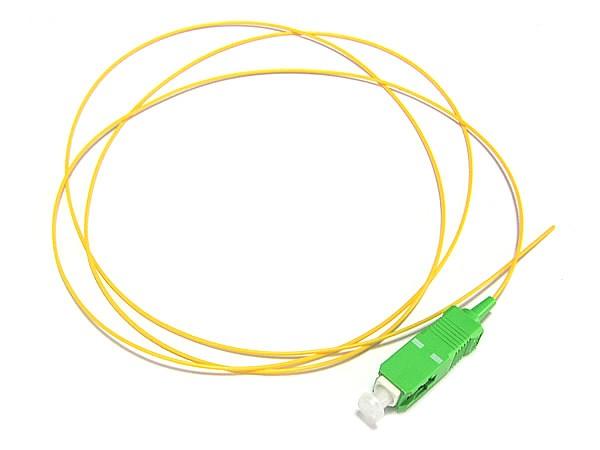

• Connector Type: SC/APC (Green polished APC connector)
• End A: SC/APC
• End B: Bare fiber (pigtail)

📌 Optical Performance

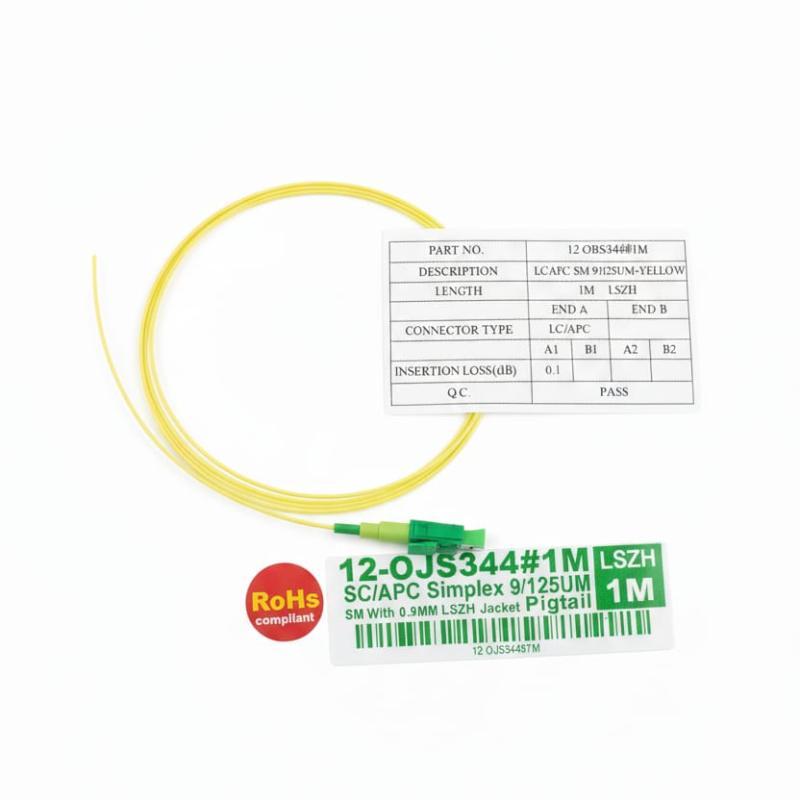

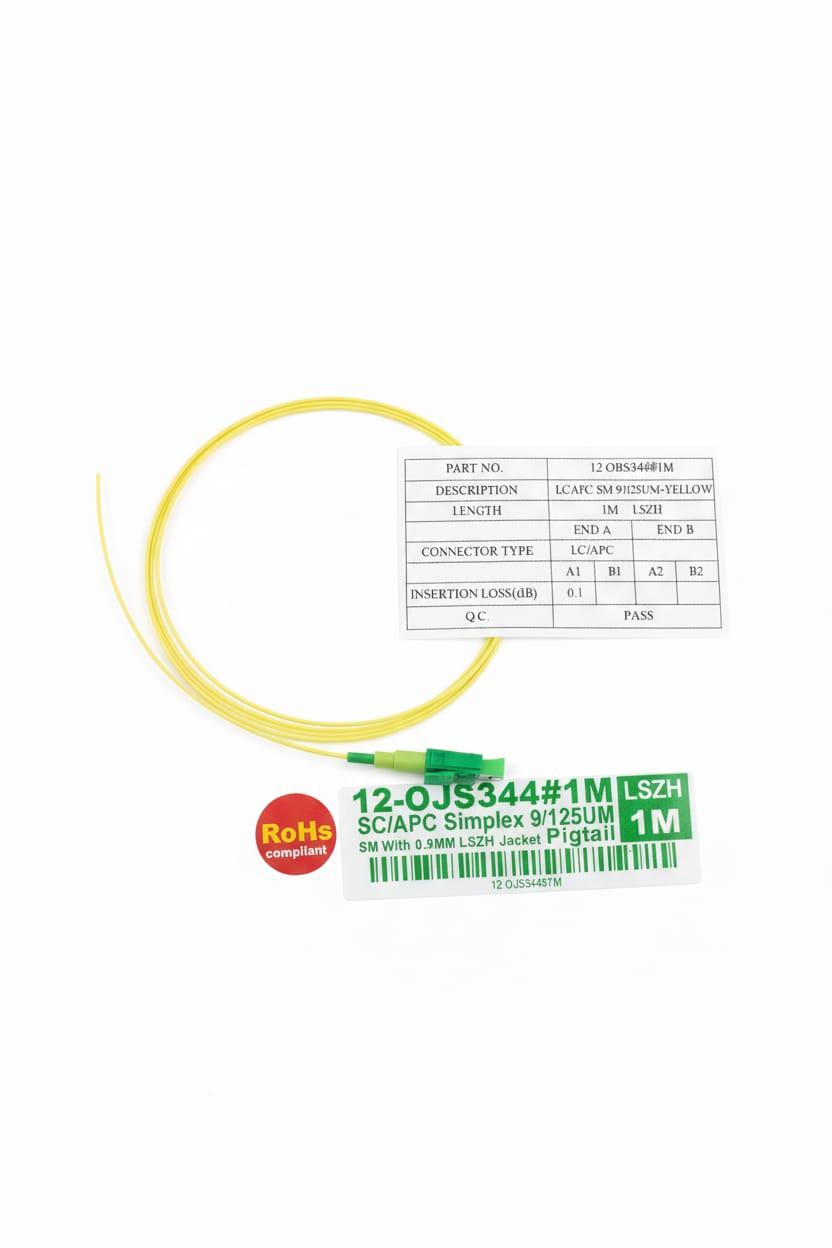

• Insertion Loss: ≤ 0.03 dB (as shown in QC table)
• Return Loss: Typically ≥ 60 dB (APC standard — not on label but industry standard)
• Polish Type: APC (Angled Physical Contact – 8°)
• Ferrule: Ceramic

📌 Physical & Length

• Cable Length: 1 Meter
• Construction: Tight-buffered fiber

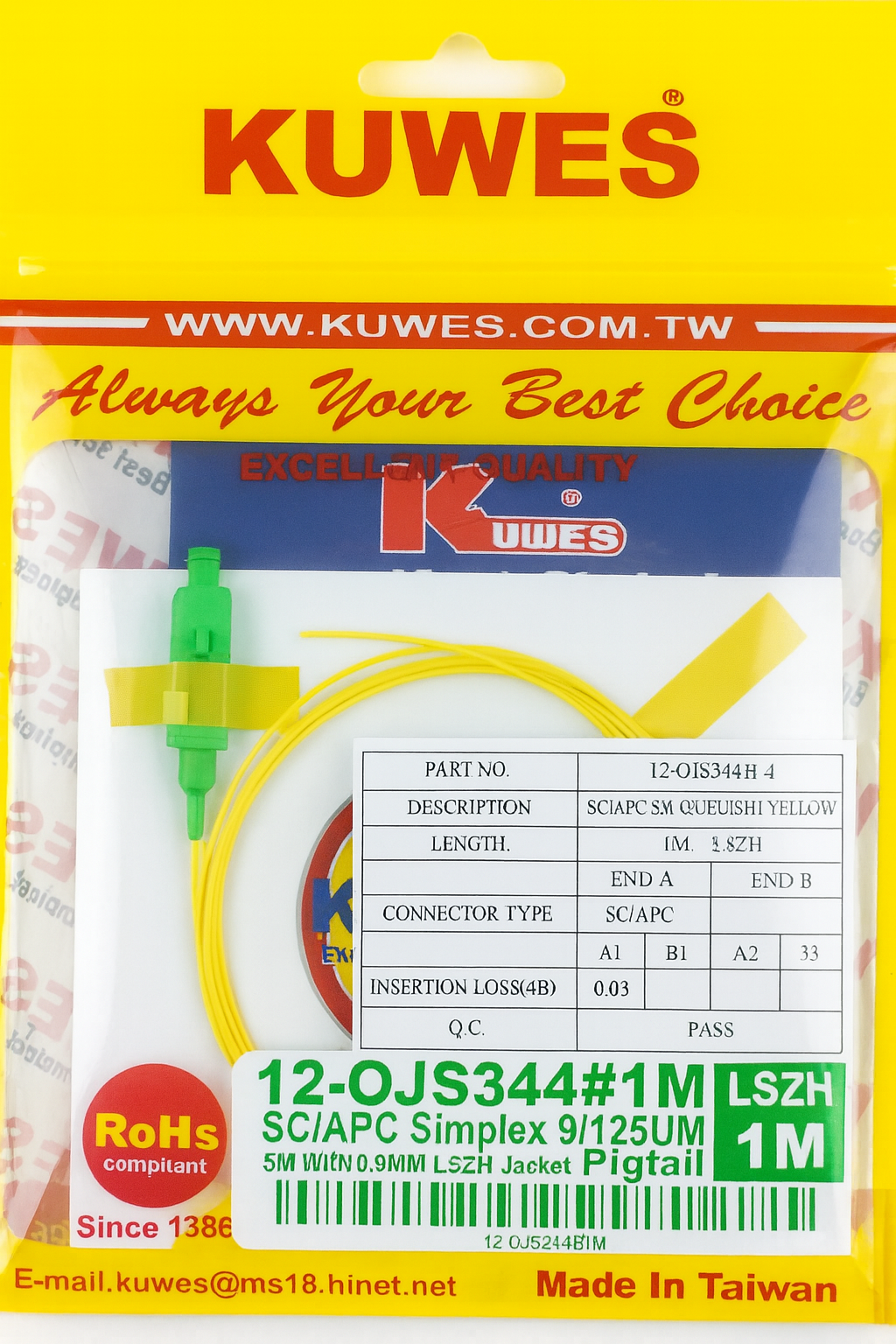

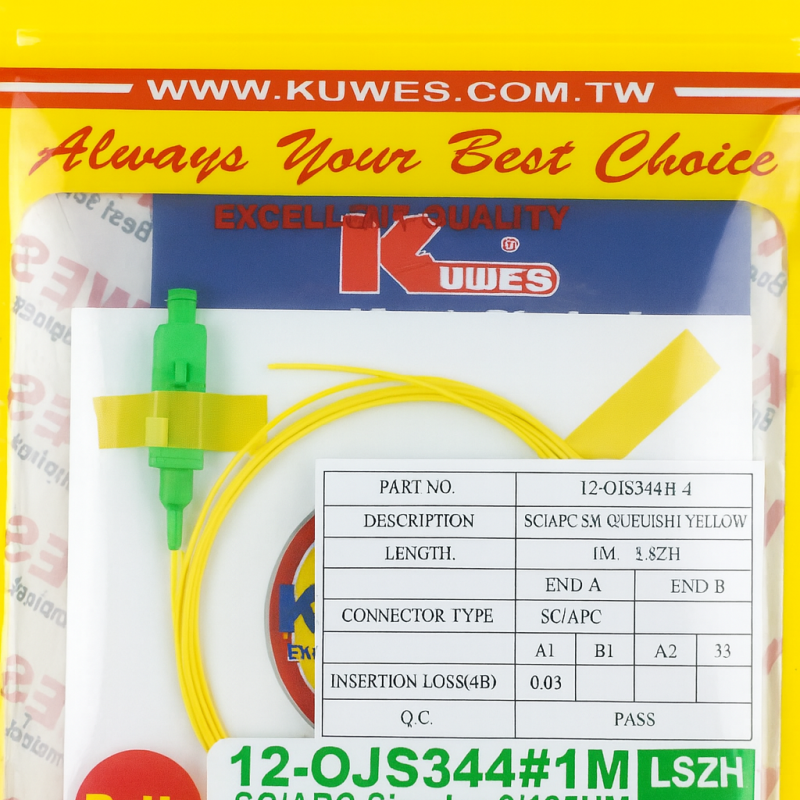

• Packaging: Retail pack with test report label

📌 Applications

• FTTH / FTTX installations
• ODF (Optical Distribution Frame)
• Fiber patch panels
• OLT / ONT connections
• CATV networks
• Fusion splicing
